Futureline 419TB 100mm

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

Capral 419TB 100mm is a thermally broken framing system with the glass located at the front.

Jump to:
+61 7 3816 7500 Website

Application

Residential or commercial use.

Description

Capral commercial glazing systems have long set the benchmark for others to match and the new Capral Futureline 419TB thermally broken framing system is no exception.

Modelled on the same simplicity and versatility which has long been a hallmark of Capral commercial framing systems, the Futureline 419TB framing system incorporates the glazing capacity to accommodate high performance double glazed units while retaining the crisp, clean profiles typically associated with commercial glazing systems. The use of the latest thermal break technologies including single bar multi-hollow and double bar polyamide strips have all been incorporated into the Futureline 419TB framing system to deliver excellent levels of thermal insulation. Mullions and transoms have been designed to accommodate common modular construction methods, allowing it to be fabricated in a similar manner to non-thermally broken framing systems.

The environmental credentials of the Futureline range extend beyond its excellent thermal design performance – the actual metal itself being formed from Ecometal™ incorporating up to 25% recycled metal content and sourced from smelters using hydro-electric energy sources. The Capral Futureline 419TB framing system offers the best of both worlds; a strong architectural aesthetic with a level of thermal efficiency usually associated with narrower, less substantial framing systems.

General information

Finish

Anodised or Powder coated.

Shape

Rectangle

Uniclass

Pr_30_59_99_02 Aluminium window wallsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window walls

Frame dimensions

100 mm x 62 mm.

Manufacturer guidance

For detailed mullion information please contact Capral Spec Team. This system is limited to a height of 4.8m and Mullion Spacing of 2.4m.

Glazing

Double.

Performance:

Max SLS: 4509pa / ULS: 10015pa / WATER: 926pa.

Standard

AS2047.

Bushfire attack level (BAL)

up to BAL29 DTS.

Integral Accessories:

Silicon Jointed External Face.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Framing Systems Capral Fabricator Network

Literature

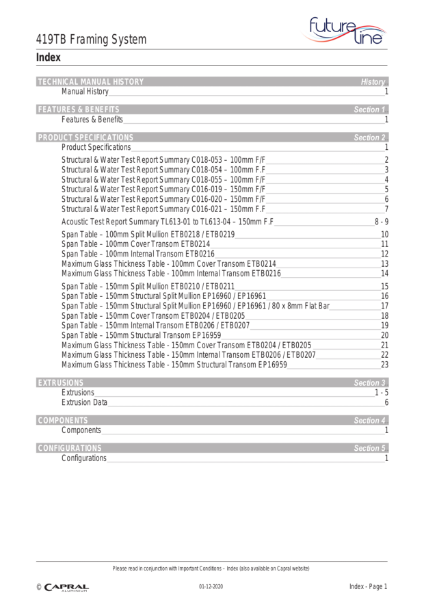

Technical Manual Futureline 419TB Capral 2020 12 01

Technical Manual Futureline 419TB Capral 2020 12 01

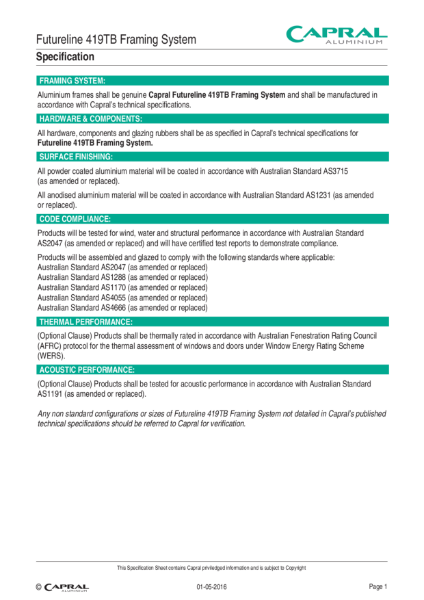

Specification 419TB Futureline

Specification 419TB Futureline
