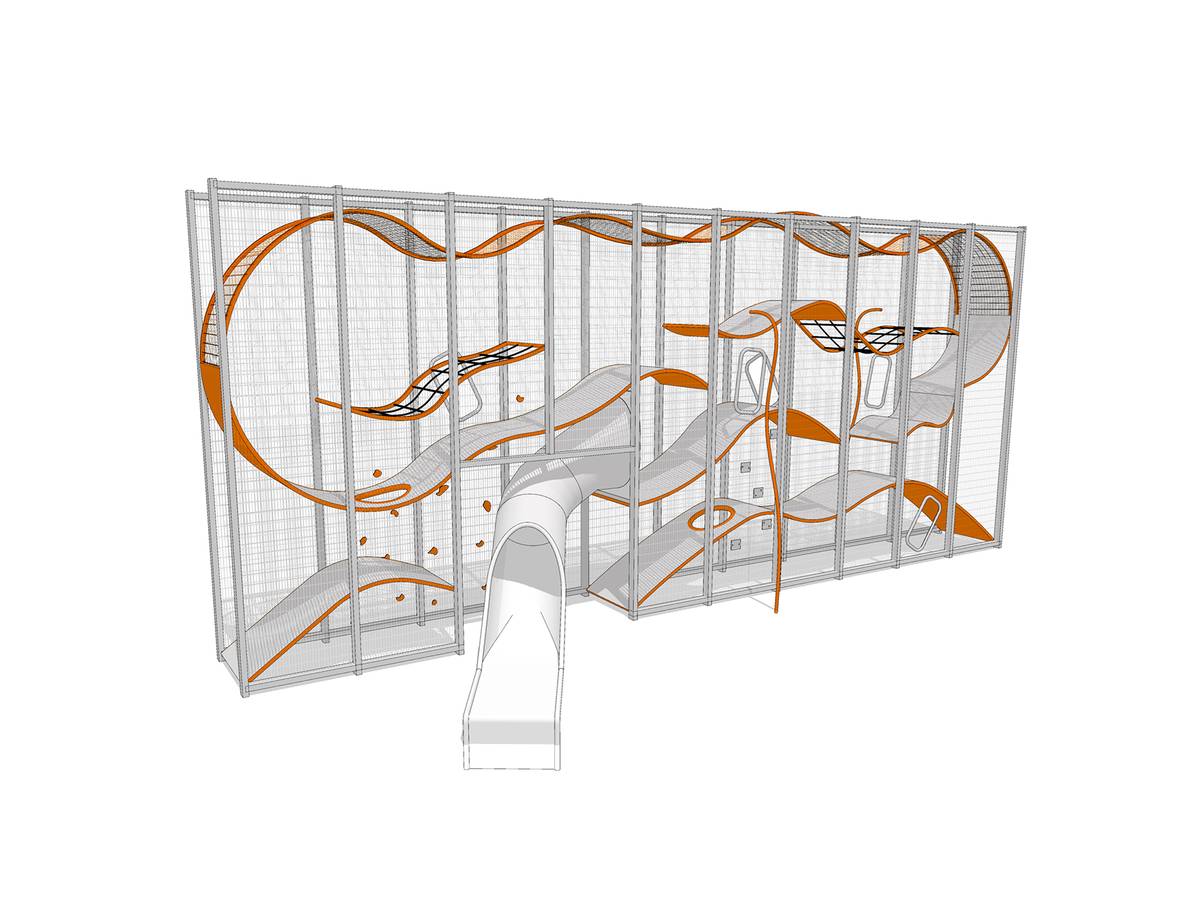

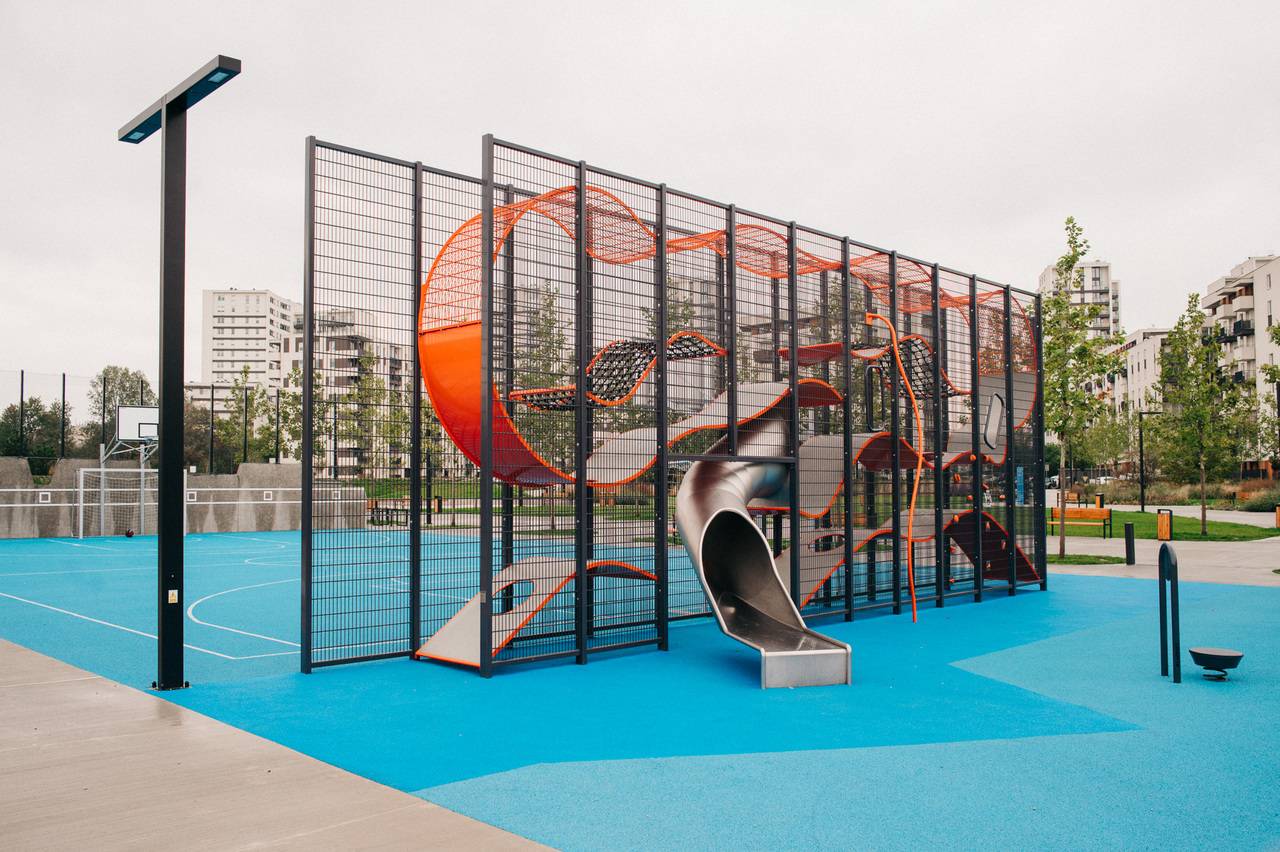

Wall Holla 10 with Internal Slide - Children's Climbing Space with Slide

Verified by manufacturer 2 months ago

Redlynch Leisure Installations Ltd Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

Children's vertical climbing area with internal slide, particularly suitable where space is limited but high capacity is needed.

Jump to:
+44 (0)1249 444537 Website

Application

Outdoor children's climbing area/ side, designed for public use.

Suitable for users age 5+.

Description

Children's vertical climbing area with internal slide, particularly suitable where space is limited but high capacity is needed.


Features and benefits:

  • Structure grows vertically and offers five to six times more play space than a playground of the same surface area, naturally making the safety area required smaller.
  • The Dutch Design Award-nominated play structure is also a great centerpiece.
  • The high, see-through structure provides an exciting experience for play.
  • Suitable for up to 30 users, age five or older.
  • Part of a range of Wall Holla climbing spaces; consult manufacturer for further details.

General information

Color

Orange

Guidance for specification option:

Painted components.

Other

Guidance for specification option:

Painted components.

Silver

Guidance for specification option:

Non-painted components.

Red

Blue

Show more

Material

High pressure laminate (HPL)

Steel

Timber

Shape

Rectangle

Length

11500 mm

Width

3843 mm

Height

4902 mm

Warranty description

15 year

Uniclass

Pr_40_30_61_18 Combined play structuresPrimary
Pr_40_30_61_15 Climbing frames

CAWS

Q52/340 Combined play structure

Q52/330 Climbing frame

Specification data - Combined play structures

Standard

To EN 1176-1.

Age range

5+.

Highest platform height

Not applicable.

Components

Climbing sections: One (multiple sections).
Slides: One.

Materials

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Finish as delivered

-

Finish type

Manufacturer's standard.

Film thickness (minimum)

Manufacturer's standard.

Colours

Guidance for specification option:

Wide range of colours are available, consult manufacturer for details and insert requirements.

Plan Size

11.5 x 3.843 m.

Guidance for specification option:

Impact area: 80.2 m².

Largest part: 5.23 m.

Overall height

4.902 m.

Post foundations

Deep mounting.

Guidance for specification option:

Consult manufacturer for details.

Surface mounting.

Weight

Manufacturer's standard.

Guidance for specification option:

Heaviest component: 251 kg.

Installation

Approx. 96 hours per structure.

Technical characteristics, other

Falling space area: 80.2 m².
Maximum free fall height: 2.47 m.
Number of users: 30.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

All parts of this product can be recycled

Third party certifications

CHAS

CHAS

CHAS Advanced

Constructionline Gold

Constructionline Gold

Constructionline Gold

Rospa Safety Charity

Rospa Safety Charity

Rospa

Literature

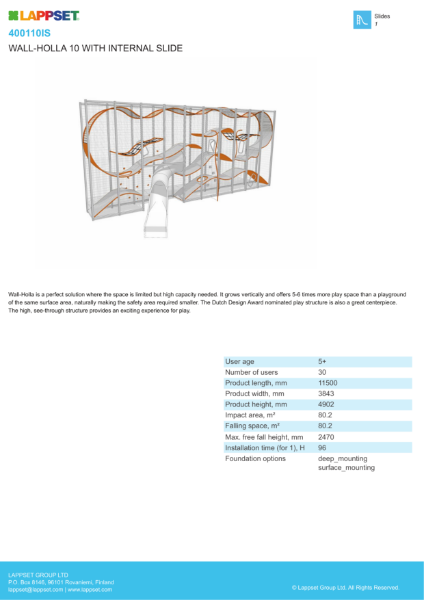

Wall Holla Product Sheet

Wall Holla Product Sheet

API Membership Certificate

API Membership Certificate

Lappset Maintenance Instructions

Lappset Maintenance Instructions

Lappset Warranty Document

Lappset Warranty Document

Case studies

Large public recreational park with Wall-Holla in Poland

Large public recreational park with Wall-Holla in Poland

Unique Wall-Holla playground in Sweden

Unique Wall-Holla playground in Sweden

World's largest Wall-Holla installed at Ketteler Hof Play Park

World's largest Wall-Holla installed at Ketteler Hof Play Park
