Activity Tower - 137124M Multiplay - Children's Multiplay Activity Tower

Name: Activity Tower - 137124M Multiplay - Children's Multiplay Activity Tower
Brand: Redlynch Leisure Installations Ltd
SKU: esHyGgSWEJNtHDis3VgJBT

Verified by manufacturer 2 months ago

Redlynch Leisure Installations Ltd

Third party certifications:

CHAS
Certificate type
Constructionline Gold
Certificate type
Rospa Safety Charity
Certificate type
TUV - Safety and Quality Report
Certificate type

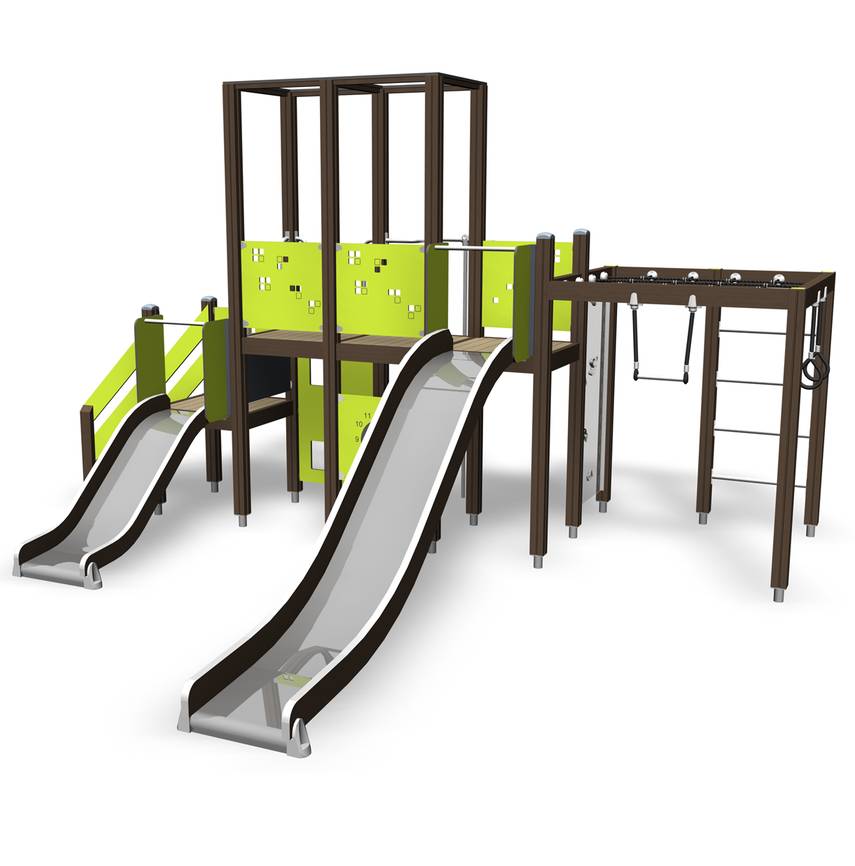

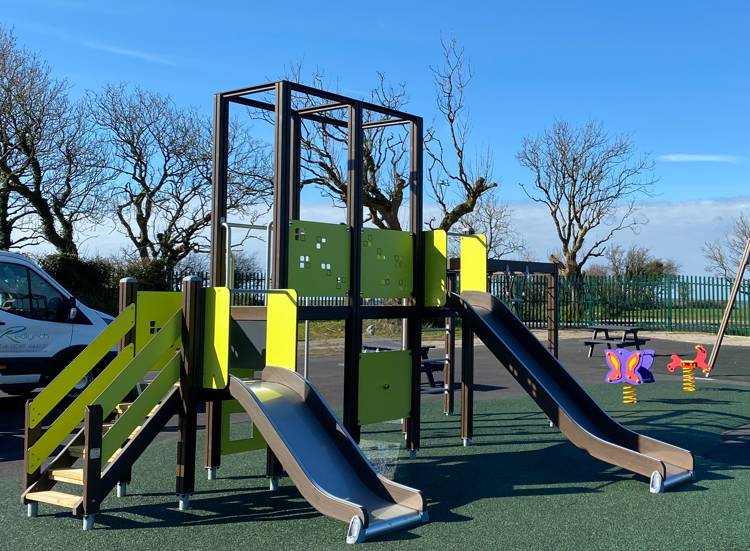

Children's multiplay activity tower combining a large number of different features that combine to make an exciting unit for multiple ages.

Jump to:

+44 (0)1249 444537 Website

Application

Outdoor children's multiplay activity tower structure, designed for public playground use.

Suitable for up to 18 users, age 1+.

Description

Children's multiplay activity tower combining a large number of different features that combine to make an exciting unit for multiple ages.

Features and benefits:

Challenging climbing takes place on the 3D climbing net.
Steps and climbing rungs also provide alternative routes to the top decks.
A slide and fireman’s pole offer an exhilarating route back to the ground.
Beneath the tower there is a roulette wall.
1970 mm high climbing frame consists of see-through climbing wall with genuine bouldering grips, climbing frame with rungs, rings, trapeze and a horizontal climbing net.
Can accommodate several children at a time.
Climbing develops children's sense of balance and strength.
Wide range of colours is available for wooden, metal, HPL and other components, see Lappset materials and colours.
Made in Finland.
Suitable for up to 18 users, age 1+.

General information

Color	Brown Guidance for specification option: Wood. Green Silver Guidance for specification option: Metal. Black Guidance for specification option: Rope. Other
Finish	Woodgrain
Material	Wood Metal High pressure laminate (HPL) Pine Polycarbonate
Shape	Other
Length	5630 mm
Width	4310 mm
Height	3320 mm
Warranty description	15 year

Uniclass	Pr_40_30_61_18 Combined play structuresPrimary
CAWS	Q52/340 Combined play structure Q52/330 Climbing frame

Specification data - Combined play structures

Standard	To EN 1176-1 and EN 1176-3 (TÜV).
Age range	1+. Guidance for specification option: Up to 18 users.
Highest platform height	1.97 m.
Components	Climbing sections: Four. Bridges: One. Stairs: One. Slides: Two. Play panels: One. Towers: Three. Roofs: Two.
Materials	Frame: Laminate and pine. Climbing walls (transparent): UV-protected weatherproof polycarbonate. Climbing grips: Pressed sandstone rock mass. Net cables: coated steel. Guidance for specification option: Primary materials only; consult manufacturer for further details e.g. ropes.
Finish as delivered	-
Finish type	Manufacturer's standard.
Film thickness (minimum)	Manufacturer's standard.
Colours	Guidance for specification option: Wood, walls, HPL and ropes are available in a range of colours. Consult manufacturer for details and insert requirements.

Plan Size	5.63 x 4.31 m. Required area: 8.92 x 8.12 m. Guidance for specification option: Impact area: 48.9 m². Largest part: 2.69 m.
Overall height	3.32 m.
Post foundations	Deep mounting. Surface mounting. Manufacturer guidance Consult manufacturer for details.
Weight	762 kg. Guidance for specification option: Heaviest component: 56 kg.
Installation	Approx. 17 hours per structure.
Technical characteristics, other	Falling space area: 51 m². Falling space length: 8.93 m. Falling space width: 8.12 m. Maximum free fall height: 1.97 m. Number of users: 18.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Finland
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	342 kg CO₂ eq/unit Self declared
Recyclability	All parts of this product are recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	68 %
