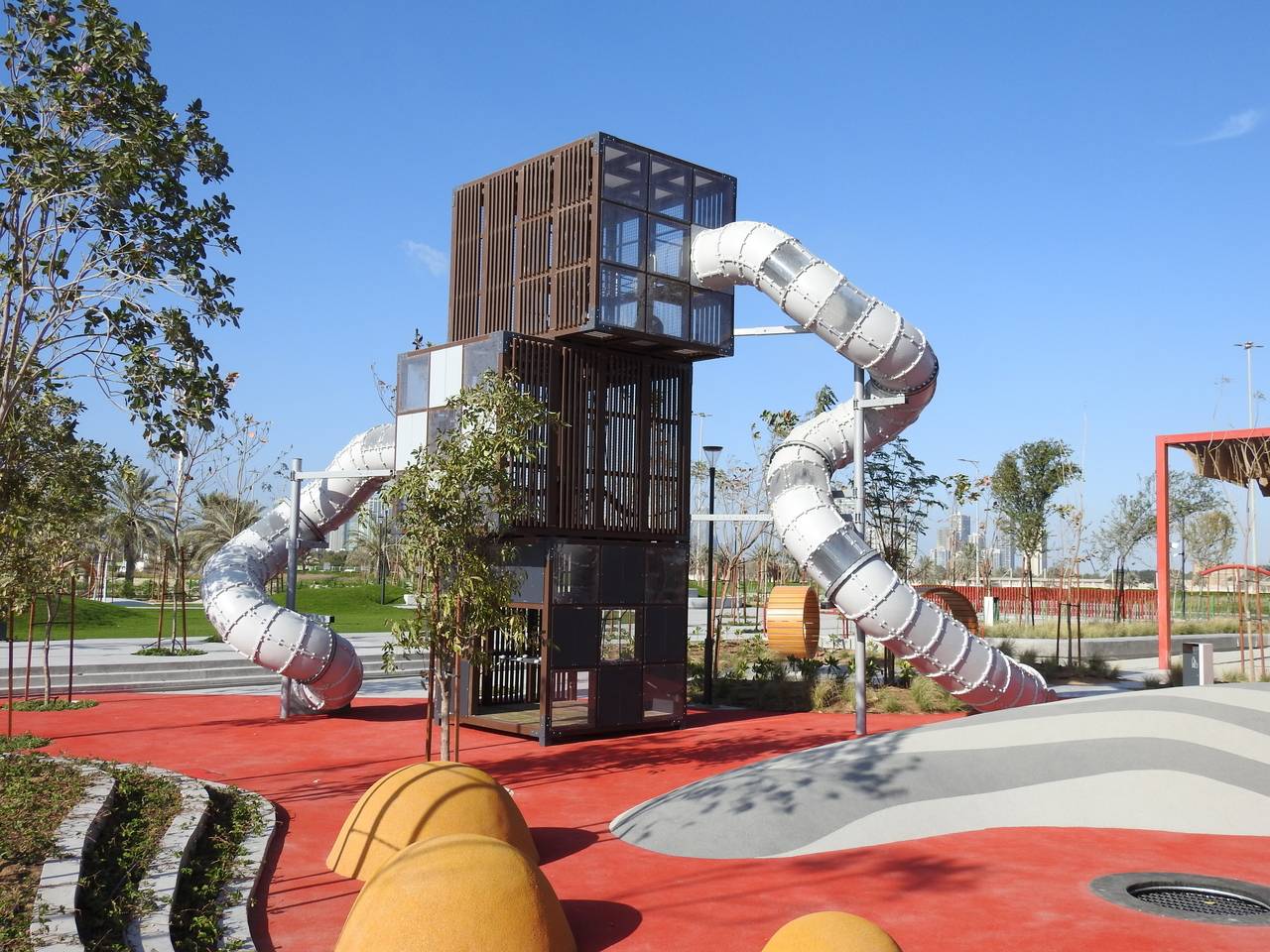

Halo Cubic - Children's Climbing Tower/ Tube Slides

Name: Halo Cubic - Children's Climbing Tower/ Tube Slides
Brand: Redlynch Leisure Installations Ltd
SKU: eaQqkZY5ZB6qZCEPntM7Lq

Verified by manufacturer 3 months ago

Third party certifications:

Children's combined climbing frame and tube slides.

Jump to:

Application

Outdoor children's climbing tower, designed for public use.

Suitable for 42 users, 6+.

Children's combined climbing frame and tube slides.

Features and benefits:

Rises to nearly 8 metres.
Consists of three elements (a cube and two cuboids on top of each other).
Includes transparent floor and two tube slides.
Tube slides are available also in stainless steel.
Designed for public outdoor use.
Wide range of colours is available for wooden, metal, HPL and other components, see Lappset materials and colours.
Made in Finland.
Suitable for 42 users, aged 6+.

Color	Brown Guidance for specification option: Wood. Blue Guidance for specification option: Walls and HPL. Yellow Guidance for specification option: Walls and HPL. Red Guidance for specification option: Walls and HPL. Green Guidance for specification option: Walls and HPL. Grey Guidance for specification option: Walls and HPL. Purple Guidance for specification option: Walls and HPL. Show more
Material	Timber High pressure laminate (HPL) Stainless steel
Shape	Other
Length	9340 mm
Width	9330 mm
Height	8000 mm
Warranty description	15 year

Uniclass	Pr_40_30_61_18 Combined play structuresPrimary Pr_40_30_61_15 Climbing frames
CAWS	Q52/340 Combined play structure Q52/330 Climbing frame

Standard	To EN 1176-1 and EN 1176-3 (TÜV).
Age range	6+. Guidance for specification option: Up to 42 users.
Highest platform height	Manufacturer's standard.
Components	Two tube slides. One tower. Climbing nets. Guidance for specification option: Tower consists of three elements (a cube and two cuboids on top of each other).
Materials	Manufacturer's standard. Guidance for specification option: Consult manufacturer for full details. Manufacturer's standard, with stainless steel tube slides. Guidance for specification option: Consult manufacturer for full details.
Finish as delivered	-
Finish type	Manufacturer's standard.
Film thickness (minimum)	Manufacturer's standard.
Colours	Guidance for specification option: Consult manufacturer for options and insert requirements. Choose the colour of the product’s wall panel from eight different options (consult manufacturer for details). One cube can have one colour. If a two-colour product is required, you can choose a dark-gray wall panel for another cube.

Plan Size	9.34 x 9.33 m. Guidance for specification option: Impact area: 14.8 m². Largest part: 3400 mm.
Overall height	8 m.
Post foundations	Surface mounted. Guidance for specification option: Consult manufacturer for details.
Weight	5226 kg. Guidance for specification option: Heaviest component: 30 kg.
Installation	Approx. 56 hours per tower.
Technical characteristics, other	Falling space area: 27.6 m². Maximum free fall height: 1 m. Number of users: 42.

Contains Red List materials	No
Country of material origin	Finland
Country of product manufacture	Finland
Recyclability	All parts of the product are recyclable
