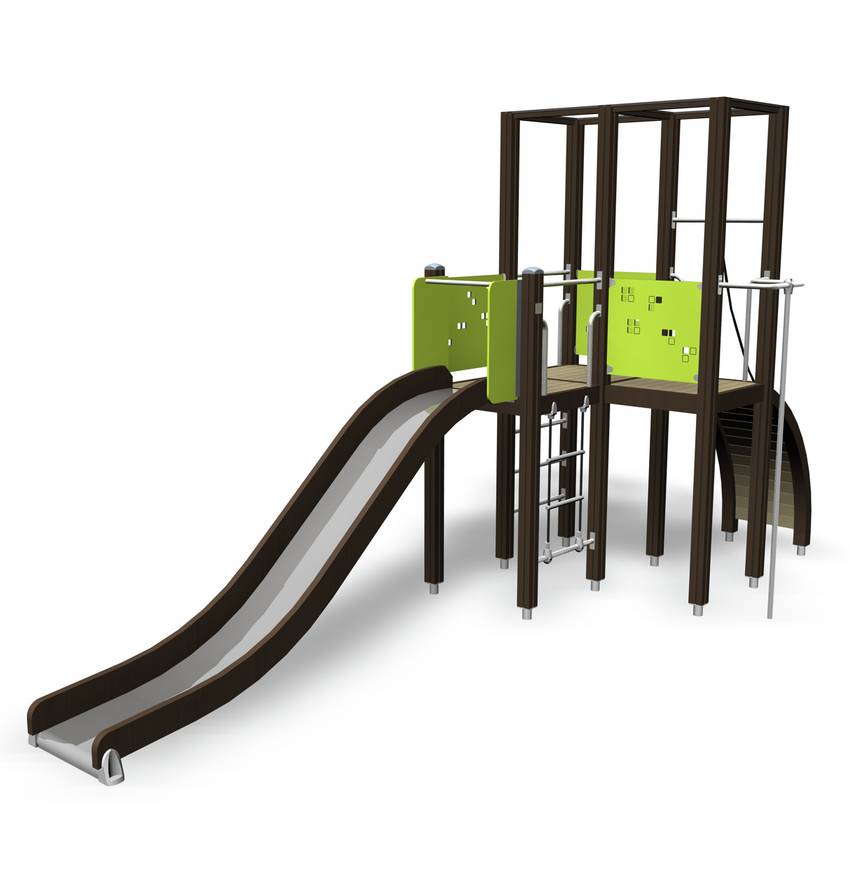

Activity Tower - 137100M Multiplay - Children's Multiplay Activity Tower

Verified by manufacturer 2 months ago

Redlynch Leisure Installations Ltd Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • TUV - Safety and Quality Report

    Certificate type

Children's multifunctional play/ activity tower with long slide, with a compact footprint.

Jump to:
+44 (0)1249 444537 Website

Application

Outdoor children's multiplay activity tower structure, designed for public playground use.

Suitable for up to 9 users, age 4+.

Description

Children's multifunctional play/ activity tower with long slide.


Features and benefits:

  • Compact footprint.
  • The 1.47 m-high tower can be accessed by rung ladder or a curved climbing wall with a rope.
  • Exhilarating descent at high speed is via the slide or fireman’s pole.
  • Wide range of colours is available for wooden, metal, HPL and other components, see Lappset materials and colours.
  • Climbing develops children's sense of balance and strength.
  • Made in Finland.
  • Suitable for up to 9 users, age 4+.

General information

Color

Brown

Guidance for specification option:

Wood.

Green

Silver

Guidance for specification option:

Metal.

Black

Guidance for specification option:

Rope.

Other

Material

Wood

Metal

High pressure laminate (HPL)

Pine

Shape

Other

Length

5310 mm

Width

2060 mm

Height

3320 mm

Warranty description

15 year

Uniclass

Pr_40_30_61_18 Combined play structuresPrimary

CAWS

Q52/340 Combined play structure

Q52/330 Climbing frame

Specification data - Combined play structures

Standard

To EN 1176-1 and EN 1176-3 (TÜV).

Age range

4+.

Guidance for specification option:

Up to 9 users.

Highest platform height

1.47 m.

Components

Climbing sections: Three.
Slides: One.
Towers: Two.
Roofs: Two.

Materials

Wood (pine)/ HPL/ metal.

Guidance for specification option:

Primary materials only; consult manufacturer for further details e.g. ropes.

Finish as delivered

-

Finish type

Manufacturer's standard.

Film thickness (minimum)

Manufacturer's standard.

Colours

Guidance for specification option:

Wood, walls, HPL and ropes are available in a range of colours.

Consult manufacturer for details and insert requirements.

Plan Size

5.31 x 2.06 m.
Required area: 8.8 x 5.03 m.

Guidance for specification option:

Impact area: 33.1 m².

Largest part: 3.2 m.

Overall height

3.32 m.

Post foundations

Deep mounting.

Surface mounting.

Manufacturer guidance

Consult manufacturer for details.

Weight

458 kg.

Guidance for specification option:

Heaviest component: 66 kg.

Installation

Approx. 12 hours per structure.

Technical characteristics, other

Falling space area: 33.4 m².
Falling space length: 9.32 m.
Falling space width: 5.02 m.
Maximum free fall height: 1.47 m.
Number of users: 9.

Sustainability data

Contains Red List materials

No

Country of material origin

Finland

Country of product manufacture

Finland

Recyclability

All parts of this products are recyclable

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

CHAS

CHAS

CHAS Advanced

Rospa Safety Charity

Rospa Safety Charity

Rospa

TUV - Safety and Quality Report

TUV - Safety and Quality Report

TUV Finno

Literature

137100M Product Sheet

137100M Product Sheet

API Membership Certificate

API Membership Certificate

Lappset Maintenance Instructions

Lappset Maintenance Instructions

Lappset Warranty Document

Lappset Warranty Document

Redlynch Catalogue

Redlynch Catalogue

Case studies

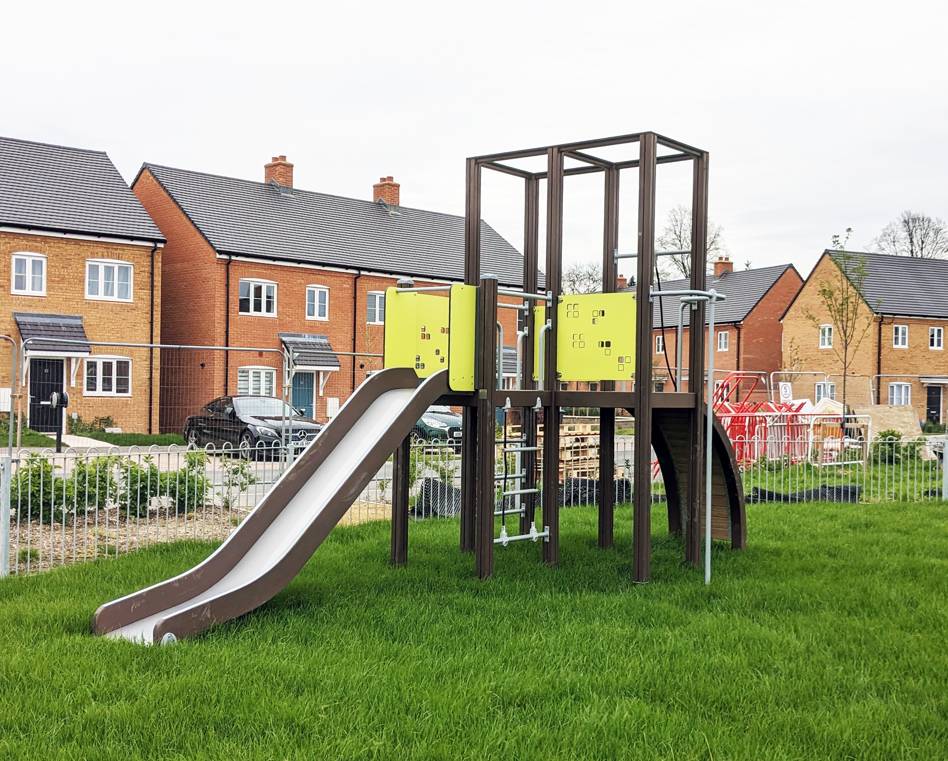

Housing Development – Farnham
