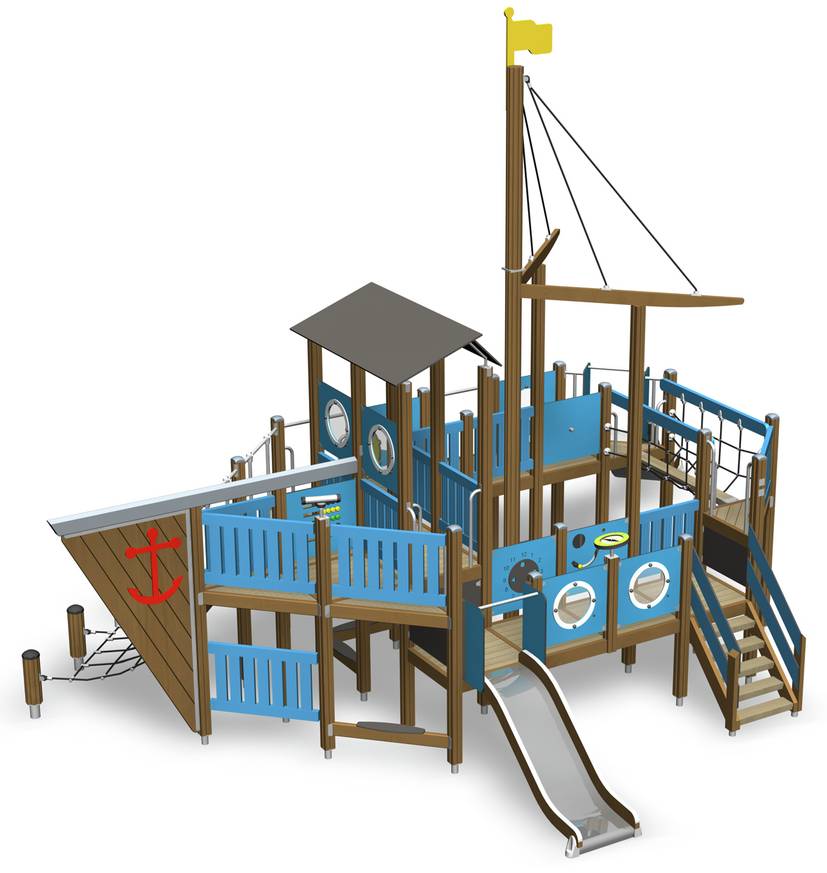

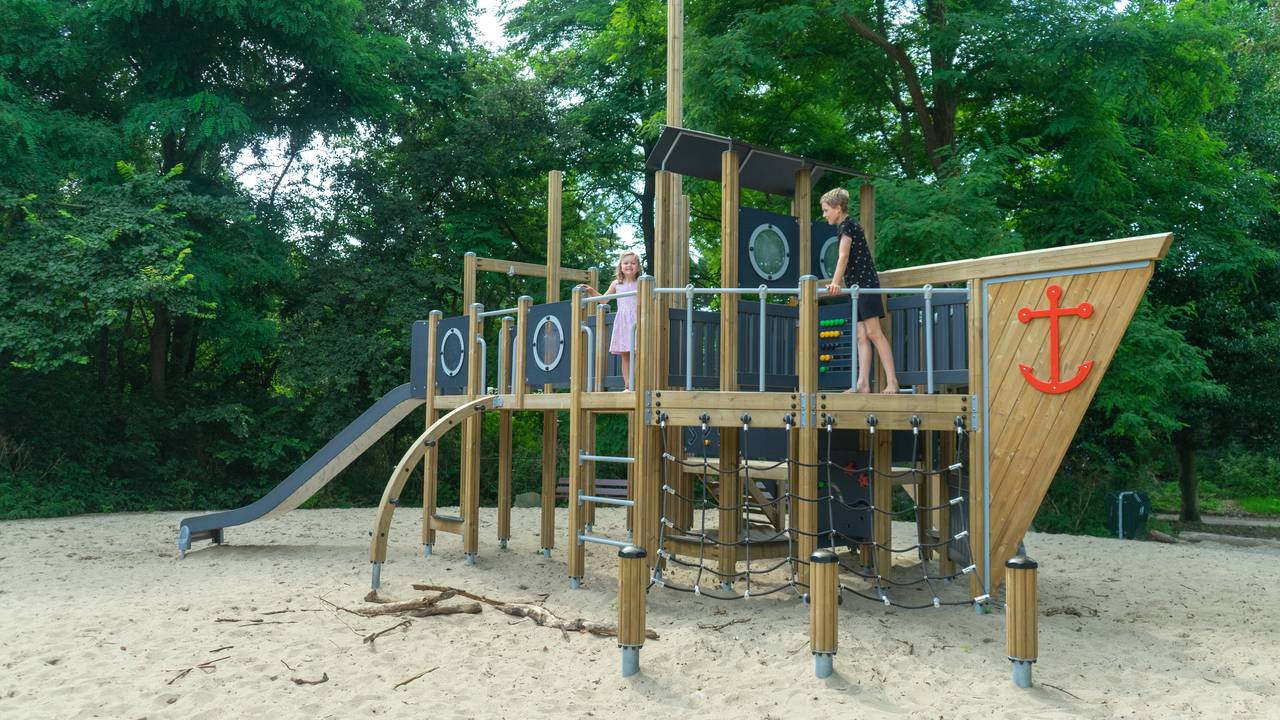

Fishing Ship - Children's Multiplay Activity Tower

Name: Fishing Ship - Children's Multiplay Activity Tower
Brand: Redlynch Leisure Installations Ltd
SKU: eDDoEU2RGj48d1yfZEWASv

Verified by manufacturer 2 months ago

Third party certifications:

Children's multiplay activity tower/ climbing frame based on a fishing ship design, with multiple play functions.

Jump to:

Application

Outdoor children's climbing frame/ multiplay activity tower, designed for public use.

Suitable for users 3+.

The Fishing Ship with its many play functions makes it possible for everybody to play.

Features and benefits:

Ships and boats as a play structure are one of the playground classics.
Wide range of colours is available for wooden, metal, HPL and other components, see Lappset materials and colours.
Easy access via stairs makes allows smaller children to enjoy the activities on the upper deck.
Children get to challenge their skills and abilities in various climbing and balancing activities, and use their imagination creating stories as the ships crew.
The ground level maze and surfaces creates multiple opportunities for traditional play and roleplay.
The frame of the Fishing Ship is impregnated glue laminated timber made from Nordic pine. Paneling and walls are made from HPL. Ropes are vinyl-covered steel wire.
Designed for public outdoor use.
Made in Finland.
Suitable for 30 users.

Color	Brown Blue
Material	Timber High pressure laminate (HPL) Steel
Shape	Other Guidance for specification option: Stylized fishing ship.
Length	8600 mm
Width	6630 mm
Height	6170 mm
Warranty description	15 year

Uniclass	Pr_40_30_61_18 Combined play structuresPrimary
CAWS	Q52/340 Combined play structure Q52/330 Climbing frame

Standard	To EN 1176-1 and EN 1176-3 (TÜV).
Age range	3+.
Highest platform height	1.47 m.
Components	Bridges: Two. Climbing sections: Three. Play walls: 14. Roof: One. Slides: Two. Towers: Four.
Materials	Frame: impregnated glue laminated timber made from Nordic pine. Paneling and walls: HPL. Ropes: vinyl-covered steel wire.
Finish as delivered	-
Finish type	Manufacturer's standard.
Colours	Guidance for specification option: Consult manufacturer for options and insert requirements. A wide range of colours is available for wooden, metal, HPL and other components e.g. rope. See link in description for further details.

Plan Size	8.6 x 6.63 m. Guidance for specification option: Impact area: 67 m². Largest part: 3700 mm.
Overall height	6.17 m.
Post foundations	Deep mounting. Guidance for specification option: Consult manufacturer for details.
Weight	1509 kg. Guidance for specification option: Heaviest component: 56 kg.
Installation	Approx. 32 hours per ship.
Technical characteristics, other	Falling space area: 74.1 m². Falling space length: 10.32 m. Falling space width: 11.8 m. Maximum free fall height: 1.47 m. Number of users: 30.

Contains Red List materials	No
Country of material origin	Finland
Country of product manufacture	Finland
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	45.9 kg CO₂ eq/unit Self declared
Recyclability	All parts of this product are recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	9 %
