Dalben Tower 9.5m - Children's Climbing Tower with Slides
Verified by manufacturer 22 days ago
Children's climbing tower with slides.
Application
Outdoor children's climbing tower with slides, designed for public use.
Description
Children's climbing tower with slides.
Features and benefits:

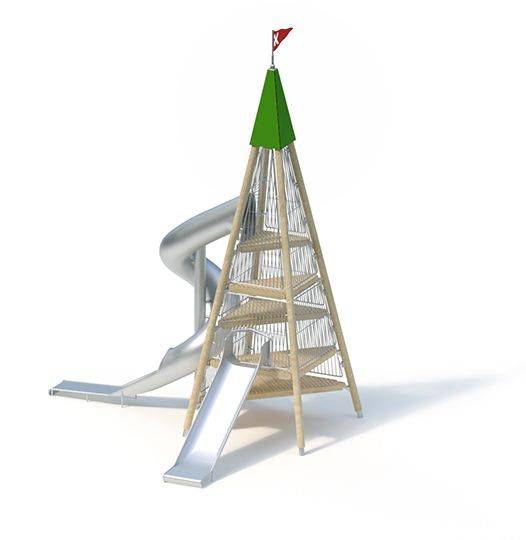

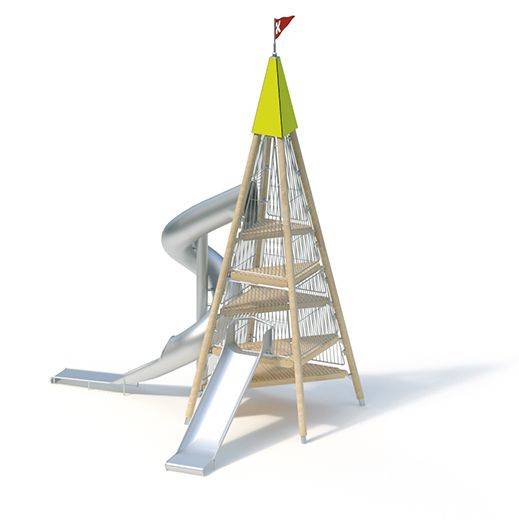

- Tall, square-base four-sided pyramid with multiple internal platforms, one conventional 'open' slide and one twisting tube slide.
- Consult manufacturer for details of suitable age ranges, maximum number of concurrent users etc.
- Wide range of colours is available for HPL and other components, see Kaiser & Kühne colours.
General information
Color | Yellow Green White Orange Red |
Material | High pressure laminate (HPL) Steel Timber Stainless steel |
Shape | Triangle |
Length | 7000 mm |
Width | 8000 mm |
Height | 9500 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | Q52/340 Combined play structure Q52/330 Climbing frame |
SKU Code | RL9-12095-001 |
Specification data - Combined play structures
Standard | To EN 1176-1 and EN 1176-3 (TÜV). |
Age range | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Highest platform height | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Components | Slides: Two. Towers: One. Guidance for specification option: Includes rotating ladder. |
Materials | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Finish as delivered | |
Finish type | Manufacturer's standard. |
Film thickness (minimum) | Manufacturer's standard. |
Colours | Manufacturer's standard, with yellow tower cap. Guidance for specification option: Consult manufacturer for details. Manufacturer's standard, with yellow tower cap. Guidance for specification option: Consult manufacturer for details. Manufacturer's standard, with other tower cap. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Accessories | Guidance for specification option: Consult manufacturer for bespoke options and insert requirements, or omit: e.g. the flag is supplied as standard but could be requested as a logo shape etc. |
Plan Size | 7 x 8 m. |
Overall height | 9.5 m. |
Post foundations | Manufacturer's standard. Guidance for specification option: Multiple foundations required, consult manufacturer for details. |
Weight | 5310 kg. |
Installation | Approx. 20 hours per structure (with two installers). |
Technical characteristics, other | Maximum free fall height: 2.1 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | All parts of this product are recyclable |
