VARA FLUID BRUSH - Liquid Airtight Membrane - Vapour Control Layer

Verified by manufacturer 1 day ago

PARTEL Third party certifications:
  • DoP

    DoP

    Certificate type

A brush applied air and vapour control layer (AVCL). Smart membrane.

Jump to:
+44 20 3740 1918 Website

Application

VARA FLUID Brush is an air and vapour control layer designed for use internally and externally on the warm side of insulation on wall, ceiling, roof and floor applications. It is easily applied, vertically or horizontally, with a paintbrush and dries to an airtight flexible coating.


Suitable for:

  • Application on various surfaces – masonry concrete, silicate, OSB, plywood etc.
  • Wall, ceiling, roof and floor applications
  • Externally vapour open and vapour closed structures
  • Wall to floor connections
  • Wall to ceiling connections
  • Wall to timber connections
  • General construction joints
  • Residential and commercial buildings

Description

Vara Fluid Brush is a water-based vapour control coating providing continuous airtightness over cracks and gaps in both new build and retrofit projects.



Vara Fluid Brush is a water-based air & vapour control layer (AVCL) that can be brushed, providing a continuous airtightness over cracks and gaps in both new build and retrofit projects. Advanced Hygrovariable Technology allows incredible summer drying conditions, but can equally protect the construction in winter.


Features and benefits:

  • Innovative liquid airtight membrane that changes vapour permeability according to the ambient relative humidity (RH). This contributes to maximum protection in the building envelope where moisture levels are critical, allowing vapour to escape and dry the structure.
  • Ensures optimum moisture flow through building structures with a Sd range of 0.15m to 16m.
  • Hygrovariable Technology - Extremely safe airtight system.
  • phA Class Passive House Certified airtight system, featuring an air permeance value of 0.00 m³/(m²h)
  • Flexible and durable.
  • LOW VOC polymer-based liquid.
  • Class W1 resistance to water penetration.
  • Excellent adhesion on various surfaces .
  • Fast application – speeds up construction.
  • Ready-to-use product – vertical or horizontal application.

General information

Color

Beige

Material

Polymer

Shape

Formless

Warranty description

Ten year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary
Pr_25_57_10_94 Vapour-permeable sheets

CAWS

P10/60 Air and vapour control layer

P10/310 Air and vapour control layer

Product range

Vapour Control Layers

Specification data - Plastics sheets

Material

Polymer-based liquid.

Purpose

Airtight vapour control layer.

Performance characteristics

-

Resistant to underground gases

Radon.

Guidance for specification option:

Radon diffusion coefficient to K124/02/95, 6.5.10-12 D(m2/s).

Water vapour resistance (minimum)

g value: 80 MNs/g; g value, humidity variable: 0.75–80 MNs/g.

UV stabilization

3 months.

Third-party certification

GEV-EMICODE certifed.

Form

Liquid.

Physical properties

-

Colour

Beige.

Weight (minimum)

5.5 kg.

Dimensions

-

Thickness (minimum)

0.3–1.5 mm.

Manufacturer guidance

Coating thickness.

Water resistance

To EN 1928, W1.

Sd value

To EN 1931, 16 @ 0.3 mm. SD vapour variability range to EN ISO 12572, 0.15–16 @ 0.3 mm.

Drying time

30–120 minutes (temperature, surface and humidity dependent).

Manufacturer guidance

Drying times will vary relative to climatic conditions, the humidity of the air and the base material to which it is applied. This can be shorter or longer than stated.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Polymer

Expected Life

Lifetime

Third party certifications

DoP

DoP

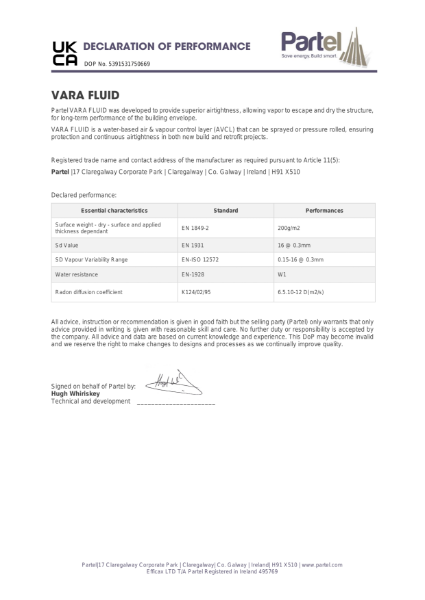

VARA FLUID DoP

Literature

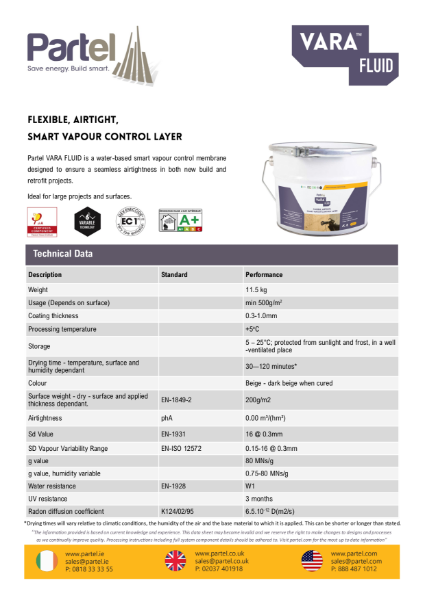

VARA FLUID SPRAY Technical Data Sheet

VARA FLUID SPRAY Technical Data Sheet

Case studies

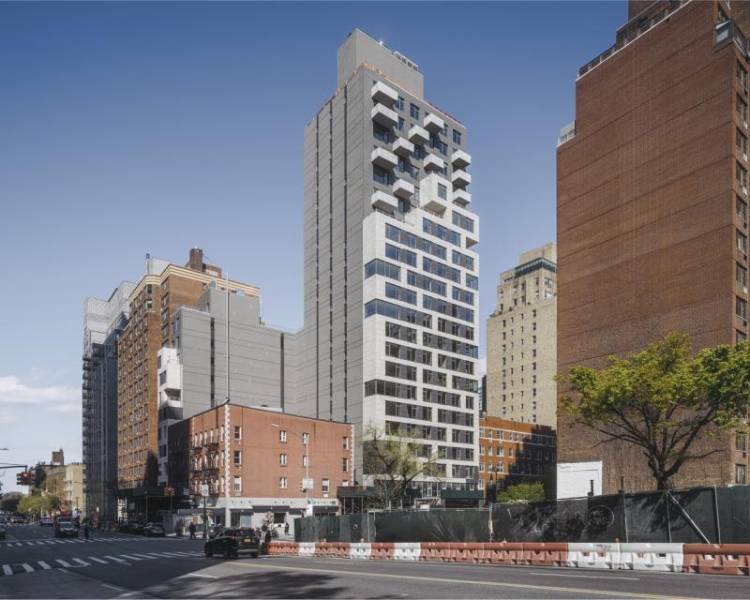

Partel’s VARA FLUID a Core Component in NYC Passive House
