ECHOFOIL EXO - Reflective Breather Membrane - Breathable Foil Membrane

Verified by manufacturer 3 months ago

PARTEL Product certifications:
  • EPD

    EPD

    Certificate type

  • DoP

    DoP

    Certificate type

Reflective breather membrane with one of the lowest emissivity values on the market. Suitable for wall, ceiling and roof applications. UKCA approved. CE approved.

Jump to:
+44 20 3740 1918 Website

Application

ECHOFOIL EXO is a highly reflective breather membrane designed for use on the cold side of insulation on wall, ceiling and roof applications.


Suitable for:

  • Onsite or offsite construction.
  • Timber frame, masonry or steel construction.
  • Warm, cold and hybrid roof applications.
  • Pitched or flat roofs.

Description

ECHOFOIL EXO is a reflective breather membrane that has been designed to enhance the thermal performance of timber frame construction.


Features and benefits:

  • Low emissivity value ≤ 0.05.
  • Enhances thermal performance with an of R-value 0.78 m²K/W.
  • Highly-breathable membrane with low Sd value (0.08 m).
  • Windtight and waterproof.
  • Optimal UV stability.

General information

Color

Silver

Finish

Reflective

Material

Foil

Length

50000 mm

Width

2700 mm

3000 mm

Warranty description

Ten year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H67/290 Vapour-permeable underlay

H65/235 Vapour-permeable underlay

H65/22 Vapour-permeable underlay

H64/307 Vapour-permeable underlay

H64/22 Vapour-permeable underlay

H62/3 Roof slating

H62/235 Vapour-permeable underlay

H61/235 Vapour-permeable underlay

H61/22 Vapour-permeable underlay

H60/235 Vapour-permeable underlay

H60/22 Vapour-permeable underlay

H60/120 Concrete roof tiling

H60/105 Clay roof tiling

H51/110 Cladding

H20/155 Sheet cladding (attached to timber battens)

H22/130 Breather membrane

H21/130 Breather membrane

H31/280 Breather membrane

H40/110 GRC cladding

H42/115 Precast composite

H42/110 Precast homogeneous

P10/320 Breather membrane

H20/10 Sheet cladding

P10/65 Breather membrane

H41/110 GRP single-skin cladding

H51/110 Cladding

H30/350 Breather membrane

H92/785 Breather membrane

H21/20 Breather membrane

H22/20 Breather membrane

H30/50 Breather membrane

H31/55 Breather membrane

H42/110 Precast homogeneous

H42/115 Precast composite

Product range

Breather Membranes

Specification data - Vapour-permeable sheets

Classification data

Standard

To BS EN 13859-2.

Performance characteristics

Low emissivity value ≤0.05; Thermal resistance: 0.78 m²K/W; Sd value: 0.08 m.

Guidance for specification option:

Highly-breathable membrane with low Sd value.

Class (minimum)

W2.

Material

Foil.

Form

Non-woven.

Third-party certification

Environmental Product Declaration (EPD).

Guidance for specification option:

Declaration number: EPDIE-22-82.

Weight (minimum)

150 g/m².

Reflective face

95%.

Sd value

To EN ISO 12572, 0.08 m.

Reaction to fire

To EN 13501-1, Class E.

Tear resistance

MD/ CD to EN 12310-1, >160 N/ >160 N.

TensileStrength

MD/CD to EN 12311-1, 300 / 250 N/50mm.

Emissivity

To EN 15976, ≤0.05.

UV resistance

Three months.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Foil

A1–A3 ('Production stage')

Normalized unit

Declared unit

0.44 kg CO₂ eq/m²

Certified

Lower emissions

Manufacturer guidance

Biogenic carbon content in product: 1.04 E-03 kg carbon per m².

Expected Life

Lifetime

Product certifications

Product certifications

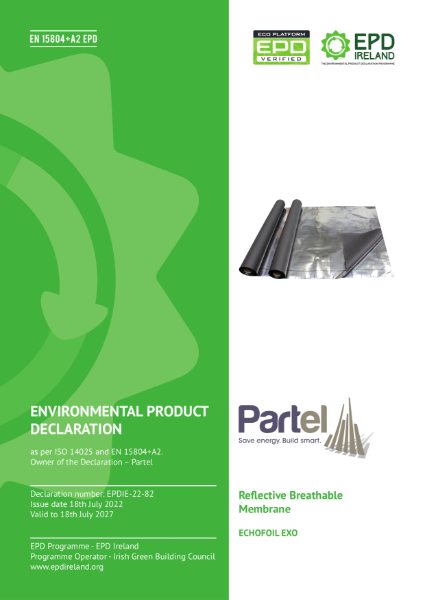

EPD

EPD

ECHOFOIL EXO - Environmental Product Declaration

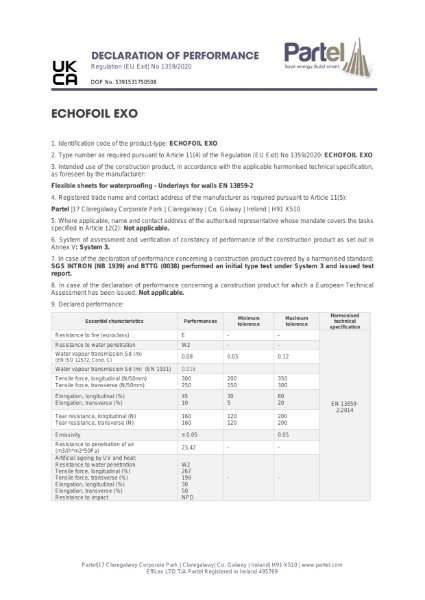

DoP

DoP

ECHOFOIL EXO DoP

Literature

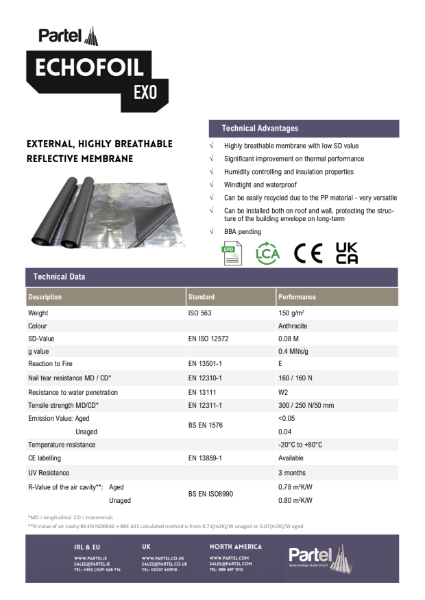

ECHOFOIL EXO Technical Data Sheet

ECHOFOIL EXO Technical Data Sheet

Case studies

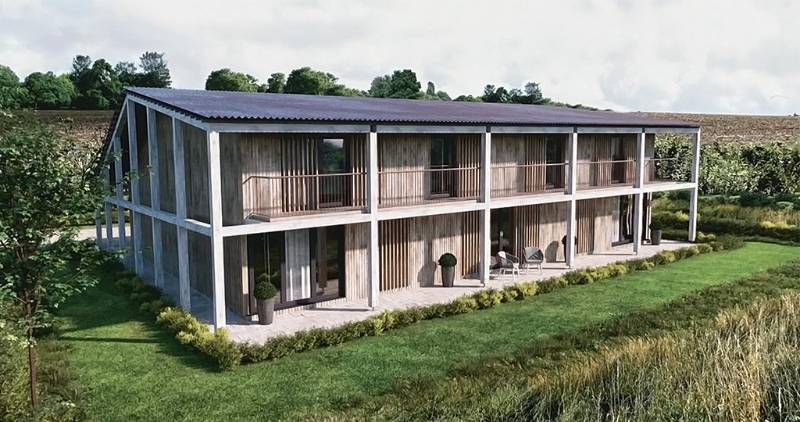

The Barn-Style Eco-Home Meeting Passivhaus Standards
