IZOPERM PLUS - phA Vapour Control Membrane - Airtight Membrane/ Vapour Control Layer

Verified by manufacturer today

PARTEL Third party certifications:
  • Passivhaus

    Passivhaus

    Certificate type

  • EPD

    EPD

    Certificate type

  • DoP

    DoP

    Certificate type

phA Class vapour control layer (VCL) suitable for wall, ceiling, roof and floor applications. Reliable internal airtight barrier & vapour check. UKCA approved. CE approved.

Jump to:
+44 20 3740 1918 Website

Application

IZOPERM PLUS is an air and vapour control layer designed for use on the warm side of insulation on wall, ceiling, roof and floor applications.


Suitable for:

  • Onsite or offsite construction.
  • Timber frame, masonry or steel construction.
  • Warm, cold and hybrid roof applications.
  • Pitched or flat roofs.
  • Residential and commercial buildings.


Description

IZOPERM PLUS, this high-specification air and vapour control membrane acts as a proven, reliable internal airtight barrier and vapour check. Designed for compatibility with all conventional building systems.


Features and benefits:

  • phA Class Passive House Certified airtight system, featuring an air permeance value of <0.01 m³/(m²h).
  • Optimum vapour resistance for most constructions, boasting an Sd value of 5m.
  • Water resistance (W1).
  • Reinforced for optimum strength.
  • EPD certified.

General information

Color

White

Finish

Coated

Material

Polypropylene

Guidance for specification option:

Specially coated three-layer reinforced non-woven.

Length

50000 mm

Width

750 mm

1500 mm

3000 mm

Warranty description

Ten year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J31/330 Air and vapour control layer

P10/310 Air and vapour control layer

H31/45 Air and vapour control membrane

J21/395 Air and vapour control layer

J41/395 Air and vapour control layer

J42/395 Air and vapour control layer

H30/30 Air and vapour control membrane

P10/60 Air and vapour control layer

H31/261 Air and vapour control membrane

H30/261 Air and vapour control membrane

Product range

Vapour Control Layers

Specification data - Plastics sheets

Material

Specially coated three-layer reinforced non-woven polypropylene.

Purpose

Airtight barrier and vapour control layer.

Standard

To EN 13984.

Performance characteristics

-

Tensile strength (minimum)

MD/ CD to EN 12311-1, 360 N/50mm/ 320 N/50mm.

Tear resistance

MD/ CD to EN 12310-1, 300 N/ 320 N.

Elongation to break

MD/ CD to EN 12311-1, 20%/ 20%.

Water vapour resistance (minimum)

25 MN·s/g.

Fire performance

To EN 13501-1, Class E.

Third-party certification

Environmental Product Declaration (EPD).

Guidance for specification option:

Declaration number: EPDIE-22-83.

Form

Reinforced.

Physical properties

-

Colour

White.

Weight (minimum)

115 g/m².

Dimensions

-

Width (minimum)

750 mm.

1500 mm.

3000 mm.

Roll length (minimum)

50 m.

Air tightness

To EN 12114, 0.01 m³/(m²h).

Water resistance

To EN 1928, W1.

Sd value

To EN 1931, 5 m.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Polypropylene

Guidance for specification option:

Specially coated three-layer reinforced non-woven.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.41 kg CO₂ eq/m²

Manufacturer guidance

1.36 E-03 kg carbon per m².

Expected Life

Lifetime

Third party certifications

Third party certifications

Passivhaus

Passivhaus

IZOPERM PLUS - Certified Passive House Component

EPD

EPD

IZOPERM PLUS - Environmental Product Declaration

DoP

DoP

IZOPERM PLUS DoP

Literature

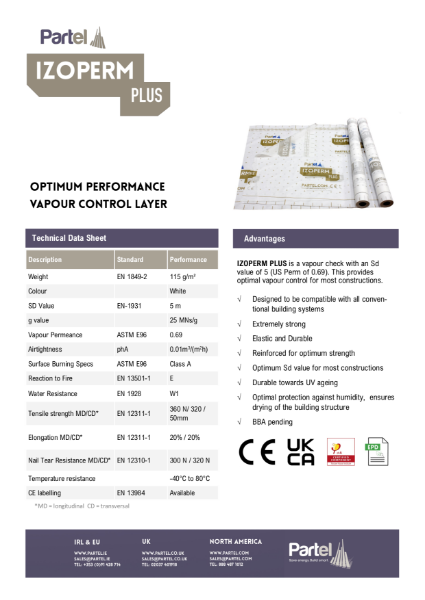

IZOPERM PLUS Technical Data Sheet
