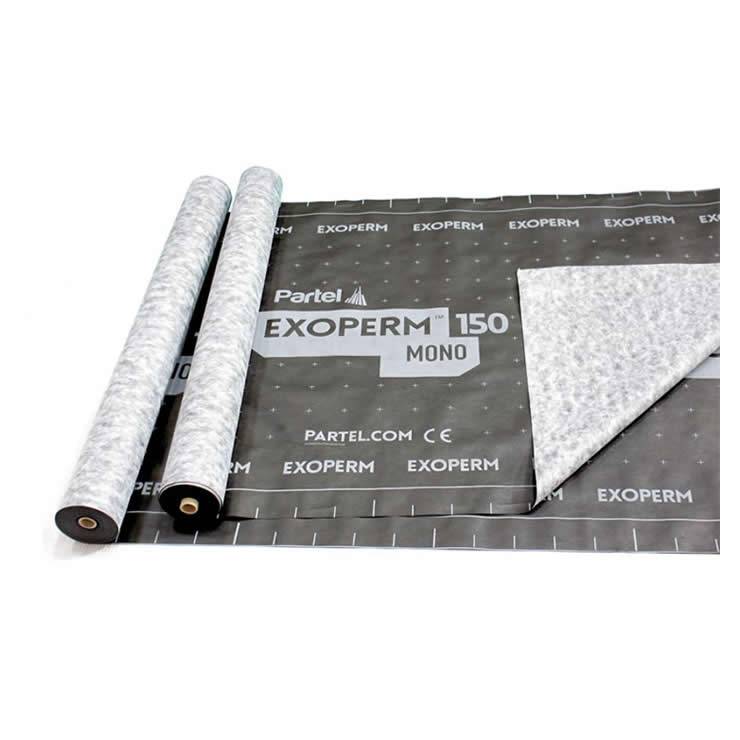

EXOPERM MONO 150 - Breather Membrane - Breathable Monolithic Membrane

Name: EXOPERM MONO 150 - Breather Membrane - Breathable Monolithic Membrane
Brand: PARTEL
SKU: 7JtU8myfchgN7PFZFGQzfM

Verified by manufacturer 3 days ago

PARTEL

Third party certifications:

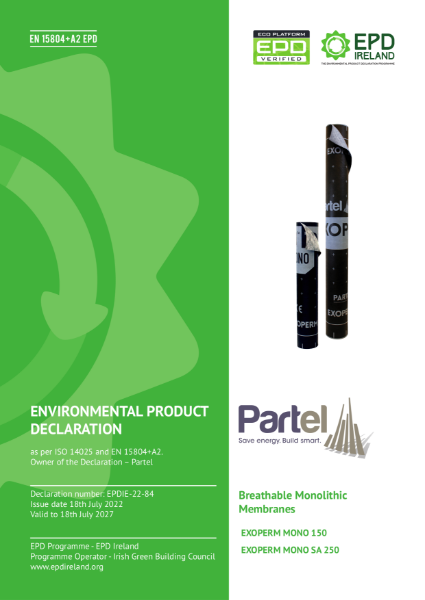

EPD
Certificate type

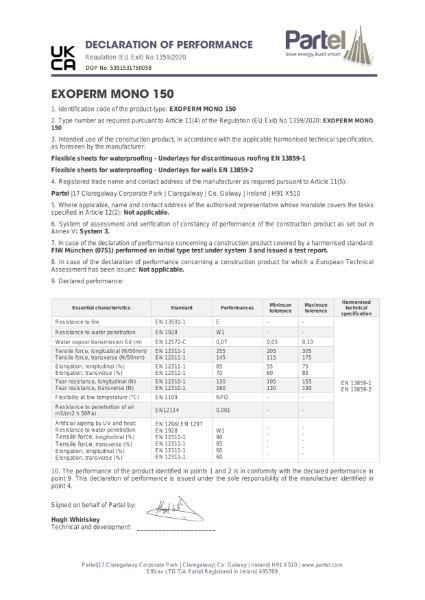

DoP
Certificate type

Breathable monolithic membrane suitable for external wall and roof applications. Watertight, airtight and vapour permeable. UKCA approved. CE approved.

Jump to:

+44 20 3740 1918 Website

Application

EXOPERM MONO 150 is an external breather membrane designed for use on the cold side of insulation on facade wall and roof applications.

Suitable for:

Facades with closed joints
Timber and steel framed constructions
Warm, cold and hybrid roof applications
Pitched or flat roofs
Sarking boards
All insulation types

Description

EXOPERM MONO 150 is a superior performance breather membrane that is UV stabilised, boasts market-leading tensile and tear strengths, and is incredibly vapour open with an Sd value of 0.07m. The monolithic layer ensures protection against driving rain, expels moisture and creates a wind tight barrier.

Features and benefits:

Highly breathable with a low Sd value 0.07m.
Class W1 resistance to water penetration.
Optimal UV and temperature resistance.
Resistant to driving rain and wind.
Windtight, but diffusion open
Airtight System, featuring an air permeance value of <0.001m3/(m2h).
Excellent ageing resistance due to the Monolithic Technology.

General information

Color	Black
Finish	Textured
Material	Polypropylene
Length	50000 mm
Width	1500 mm 3000 mm
Warranty description	Ten year

Uniclass	Pr_25_57_10_94 Vapour-permeable sheetsPrimary
CAWS	H67/290 Vapour-permeable underlay H67/24 Vapour-permeable underlay H65/235 Vapour-permeable underlay H65/22 Vapour permeable underlay H64/307 Vapour-permeable underlay H64/22 Vapour-permeable underlay H62/3 Roof slating H62/235 Vapour-permeable underlay H61/235 Vapour-permeable underlay H61/22 Vapour-permeable underlay H60/235 Vapour-permeable underlay H60/22 Vapour-permeable underlay H51/110 Cladding H20/155 Sheet cladding (attached to timber battens) H22/130 Breather membrane H21/130 Breather membrane H31/280 Breather membrane H40/110 GRC cladding H42/115 Precast composite H42/110 Precast homogeneous P10/320 Breather membrane H20/10 Sheet cladding P10/65 Breather membrane H41/110 GRP single-skin cladding H51/110 Cladding H30/350 Breather membrane H92/785 Breather membrane H21/20 Breather membrane H22/20 Breather membrane H30/50 Breather membrane H31/55 Breather membrane H42/110 Precast homogeneous H42/115 Precast composite

Product range	Breather Membranes

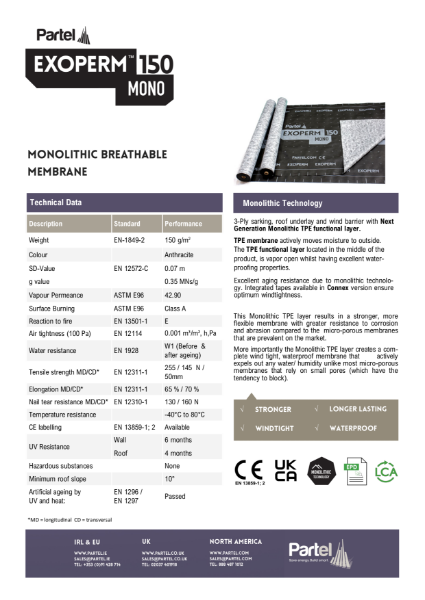

Specification data - Vapour-permeable sheets

Standard	To EN 13859-1 and EN 13859-2.
Class (minimum)	W1.
Material	Non-woven polypropylene fabric.
Form	Non-woven.
Third-party certification	Environmental Product Declaration (EPD). Guidance for specification option: Declaration number: EPDIE-22-84.
Weight (minimum)	150 g/m².

Sd value	To EN ISO 12572, 0.07 m.
Reaction to fire	To EN 13501-1, Class E.
Air permeability	To EN 12114, 0.001 m³/m².h. 100 Pa.
Tear resistance	MD/ CD to EN 12310-1, 130 N/ 160 N.
TensileStrength	MD/CD to EN 12311-1, 255 N/ 145 N/ 50 mm.
UV resistance	6 months (wall); 3 months (roof).

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Material	Polypropylene
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.53 kg CO₂ eq/m² Manufacturer guidance Biogenic carbon content: 2.16 E-03 kg C per m².
Expected Life	Lifetime
