ECHOFOIL IZO - Reflective Vapour Control Layer - Airtight Vapour Control Membrane

Verified by manufacturer today

PARTEL Third party certifications:
  • DoP

    DoP

    Certificate type

Reflective air and vapour control layer one of the lowest emissivity values on the market. Suitable for wall, ceiling and roof applications. UKCA approved. CE approved.

Jump to:
+44 20 3740 1918 Website

Application

ECHOFOIL IZO is a highly reflective air and vapour control layer designed for use on the warm side of insulation on wall, ceiling and roof applications.


Suitable for:

  • Onsite or offsite construction.
  • Timber frame, masonry or steel construction.
  • Warm, cold and hybrid roof applications.
  • Pitched or flat roofs.

Description

ECHOFOIL IZO is an internal reflective vapour control layer (VCL) that helps to improve the thermal performance of a structure by reflecting up to 97% of the internal heat from inside the structure back into the building. Used in conjunction with ECHOFOIL EXO it increases thermal performance further and helps to lower U-values.


Features and benefits:

  • Low emissivity value <0.03.
  • Enhances thermal performance with an of R-value 0.78 m²K/W.
  • High vapour resistance with an Sd value of 150 m.
  • Airtight system, featuring an air permeance value of <0.002 m³/(m²h).
  • Water resistance (W1).
  • UKCA approved.
  • CE approved.

General information

Color

Silver

Finish

Reflective

Material

Foil

Length

50000 mm

Width

1500 mm

3000 mm

Warranty description

Ten year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J21/395 Air and vapour control layer

J41/395 Air and vapour control layer

P10/310 Air and vapour control layer

J42/395 Air and vapour control layer

H31/45 Air and vapour control membrane

P10/60 Air and vapour control layer

H31/261 Air and vapour control membrane

H30/261 Air and vapour control membrane

J31/330 Air and vapour control layer

K10/155 Wall lining system (metal studs)

K11/795 Wall lining on metal framing

H30/30 Air and vapour control membrane

Product range

Vapour Control Layers

Specification data - Plastics sheets

Material

Foil.

Purpose

Airtight vapour control layer.

Standard

To EN 13984.

Performance characteristics

-

Tensile strength (minimum)

MD/CD to EN 12311-1, 320 N/50mm / 280 N/50mm.

Tear resistance

MD/CD to EN 12310-1, 150 N/ 150 N.

Elongation to break

MD/CD >40%.

Water vapour resistance (minimum)

750 MNs/g.

Fire performance

To EN 13501-1, Class E.

UV stabilization

Three months.

Form

Non-woven.

Physical properties

-

Colour

Silver.

Weight (minimum)

130 g/m².

Dimensions

-

Width (minimum)

1.5 m.

3 m.

Roll length (minimum)

50 m.

Air permeability

To EN 12114, <0.002.

Emissivity

To EN 15976, <0.03.

Water resistance

To EN 1928, W1.

Sd value

To EN 1931, 150 m.

Reflective face

97%.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Foil

Expected Life

Lifetime

Third party certifications

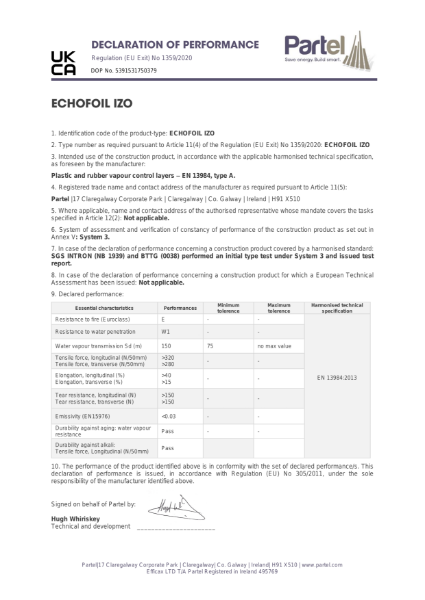

DoP

DoP

ECHOFOIL IZO DoP

Literature

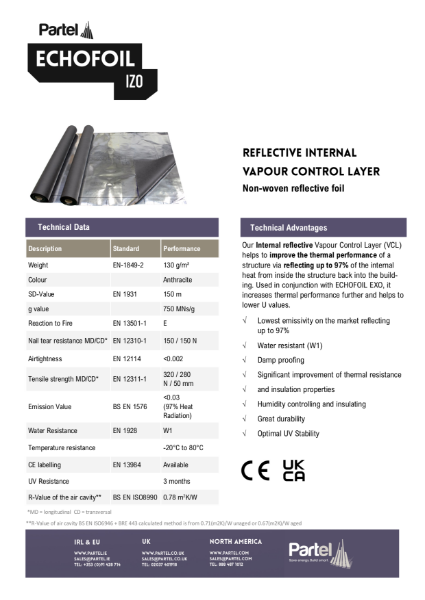

ECHOFOIL IZO Technical Data Sheet
