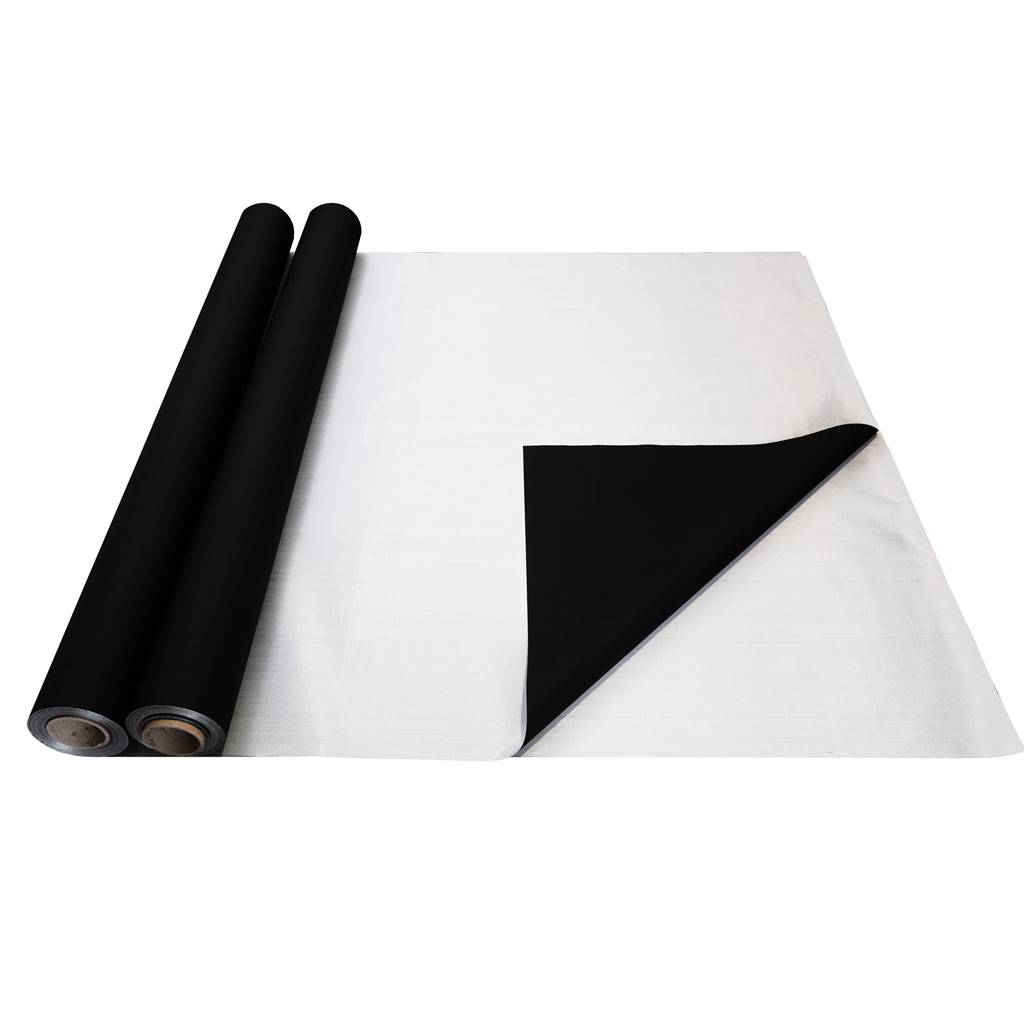

EXOPERM MONO DURO A2 - Fire Rated Breather Membrane - Class A2 Breather Membrane
Verified by manufacturer 2 days ago
DoP
Certificate type
Class A2 fire rated monolithic breather membrane suitable for wall and roof applications. Airtight and vapour permeable. Reaction to fire classification A2-s1,d0. UKCA and CE approved.
Application
EXOPERM MONO DURO A2 is an external breather membrane of limited combustibility designed for use on the cold side of insulation of façade wall applications, offering the highest standard of fire-safety and protection for tall buildings.
Suitable for:
- Façades with open or closed joints.
- High-rise, high-risk and public buildings (schools, offices, commercial centres, hospitals, etc.).
- Residential and commercial developments.
- Offsite construction.
- Metal frame constructions.
- New builds and retrofits.
Description
EXOPERM MONO DURO A2 is a limited combustible, energy-efficient, diffusion permeable monolithic breather membrane. Class A2-s1,d0 it provides high fire protection of the building envelope and is ideal for installation on the façade, in high-rise and high-risk buildings.
Features and benefits:
- Reaction to fire A2-s1,d0 to BS EN 13501-1.
- Advanced glass fibre fabric for enhanced structural stability.
- Integrates Monolithic functional layer.
- Highly vapour open with an Sd value of 0.09m.
- Class W2 resistance to water penetration.
- Airtight with an air permeability value of 0,006 m³/m², h, Pa.
- High Permanent UV resistance without cladding, and with 50% and 50mm joints.
- Weather tight.
- Improves the energy efficiency of the building.
- Independently tested to EN 13501-1 for compliance.
General information
Color | Black |
Finish | Coated |
Material | Glass Fibre Polyurethane |
Shape | Rectangle |
Length | 50000 mm |
Width | 1500 mm |
Height | 0.23 mm Guidance for specification option: Thickness |
Warranty description | 20 year |
Uniclass | |
CAWS | H31/55 Breather membrane H30/50 Breather membrane H22/20 Breather membrane H21/20 Breather membrane H42/110 Precast homogeneous H42/110 Precast homogeneous H42/115 Precast composite H42/115 Precast composite H40/110 GRC cladding H61/235 Vapour-permeable underlay H60/235 Vapour-permeable underlay H51/110 Cladding H51/110 Cladding H67/24 Vapour-permeable underlay H65/22 Vapour permeable underlay H64/22 Vapour-permeable underlay H61/22 Vapour-permeable underlay H60/22 Vapour-permeable underlay H41/110 GRP single-skin cladding P10/65 Breather membrane H62/3 Roof slating H92/785 Breather membrane H31/280 Breather membrane H30/350 Breather membrane H22/130 Breather membrane P10/320 Breather membrane H21/130 Breather membrane H20/10 Sheet cladding H20/155 Sheet cladding (attached to timber battens) H67/290 Vapour-permeable underlay H65/235 Vapour-permeable underlay H64/307 Vapour-permeable underlay H62/235 Vapour-permeable underlay |
Product range |
Specification data - Vapour-permeable sheets
Standard | To EN 13859-2 and EN 13501-1. |
Class (minimum) | W2. |
Material | Advanced glass fibre fabric and black coating. |
Form | Non-woven. |
Weight (minimum) | 225 g/m². |
Thickness (minimum) | 0.23 mm. |
Sd value | To EN 12572: 0.09 m. |
Air tightness | To EN 12114: 0.006 m³/(h x m² x 50 Pa). |
Emissivity | To EN 16012: 95%. |
Water vapour diffusion resistance – µ value | To EN 12572: 458 μ. |
UV resistance | Permanent. |
Colour | Black. |
Tear resistance | To EN 12310-1 (MD/CD): 290 / 390 N ±75. |
TensileStrength | To EN 12311-1 (MD/CD): 4200 / 3100 N / 50 mm. |
Reaction to fire | To EN 13501-1: A2-s1, d0. |
Vapour resistance | 0.45 MNs/g. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Glass Fibre Polyurethane |
Expected Life | Lifetime |
Third party certifications

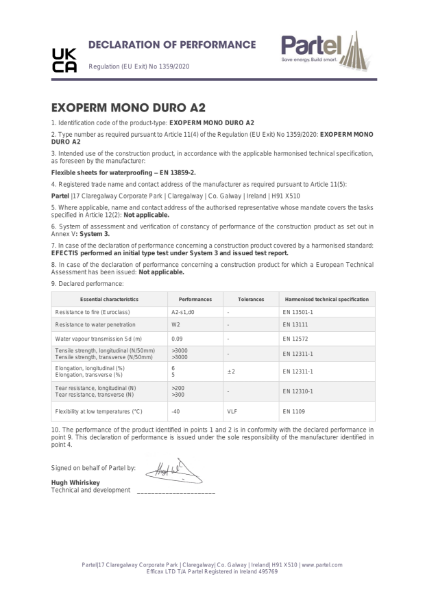

DoP
EXOPERM MONO DURO A2 DoP
Literature

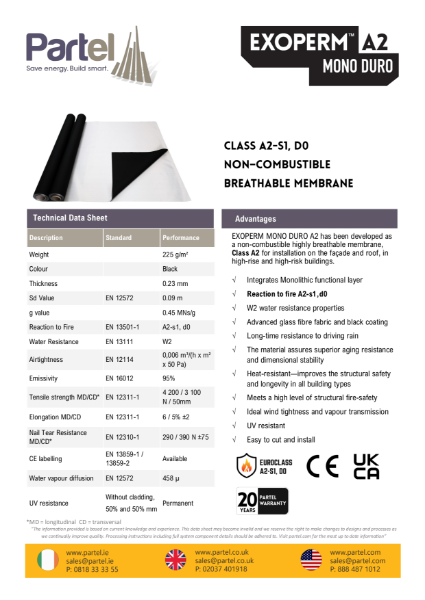

EXOPERM MONO DURO A2 Technical Data Sheet
Similar products from PARTEL
ECHOFOIL EXO - Reflective Breather Membrane - Breathable Foil Membrane
EXOPERM DURO A1 - Non-Combustible Breather Membrane - Class A1 Fire Rated Breather Membrane
EXOPERM MONO 150 - Breather Membrane - Breathable Monolithic Membrane
EXOPERM MONO 150 Connex - Breather Membrane - Monolithic Breather Membrane
EXOPERM MONO DURO 200 - Fire Rated Breather Membrane - Fire-Resistant Breathable Monolithic
EXOPERM MONO SA 250 - Self-Adhesive Breather Membrane - Fire Resistant Monolithic Membrane
IZOPERM PLUS ECO – Paper-Based Sustainable Vapour Control Layer

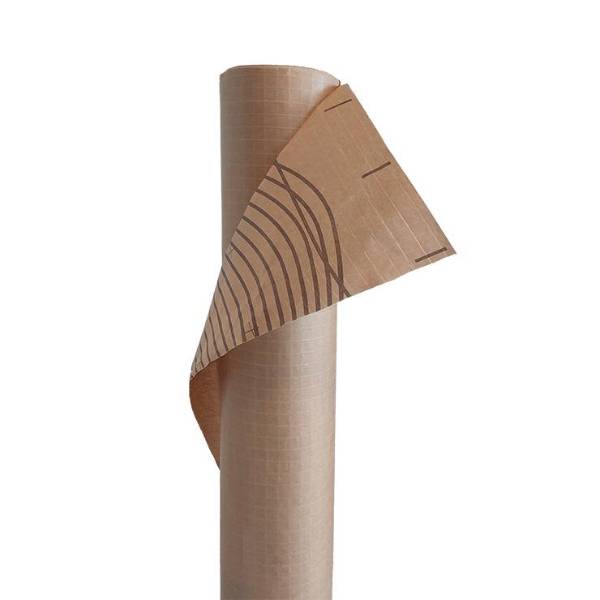

VARA PLUS ECO – Smart Ecological Vapour Control Layer
