UKTPS-01 Transparent Roller Shutters - Roller Shutter
Verified by manufacturer 5 months ago
Transparent polycarbonate roller shutters.
Application

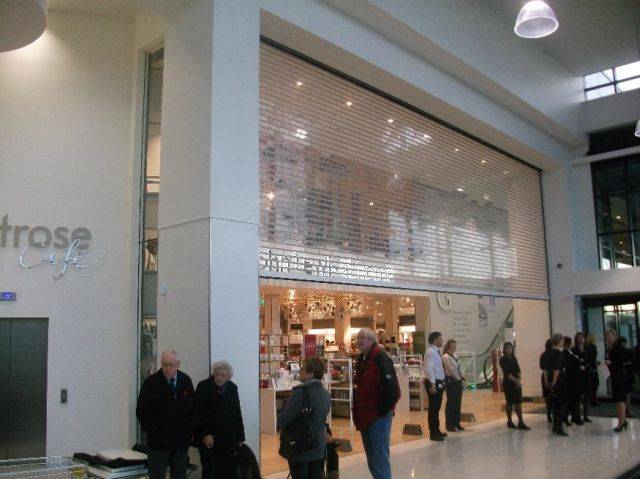

Particularly suitable for any premises where high security and clear, see-through visibility and aesthetics are essential. These transparent polycarbonate roller shutters are commonly used in a range of applications, including:
- Shops.
- Banks.
- Museums.
- Exhibitions.
Description
Made of horizontal strips of virtually unbreakable polycarbonate, these extremely robust transparent shutters give crystal clear visibility when closed, providing transparency of 83% and allowing through 92% of daylight. Because it is UV-stabilized, the transparent shutter will not discolour or yellow, will retain its exceptional clarity for many years and is used on very 'high end' premises. The shutter offers a maximum surface area of up to 50 m² mounted externally, and 72 m² internally. The shutter has been awarded a Pass according to the Aerospace safety standard ABD0031 respecting smoke and toxic gas emissions. Furthermore, it is the only transparent facade shutter in Europe that has obtained the SKG Class 3 against the strict European standards ENV 1627-1630.
Features and benefits:
- High security with crystal clear transparency.
- The frame can be powder coated any RAL colour.
- Does not discolour.
- Ideal for situations where cosmetic appearance is important.
- Can bend but cannot crack or break.
- Fully CE marked.
General information
Color | Clear |
Material | Polycarbonate Steel |
Shape | Rectangle |
Size | Manufacturer guidanceMade to measure; consult manufacturer for details. |
Warranty description | One year Manufacturer guidanceOn electrical parts. |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Standard | SKG Class 3 certification against the strict European standards ENV 1627-1630. |
Opening sizes | Manufacturer guidanceBespoke, available on request. |
Format | Internal. |
Arrangement | Vertical. |
Performance | |
Resistance to wind load | Class 2.Guidance for specification option: As standard. |
Shutter curtain. | |
Lath material | Polycarbonate. |
Profile | Flat. |
Finish and colour | Clear.Frosted.Clear with protective coating.Guidance for specification option: Protects against scratches and graffiti. |
Frame and guides | |
Material | Steel. |
Finish | Powder coating. |
Colour | RAL colour.Guidance for specification option: Insert requirements; any RAL colour available. |
Operation | |
Mode | Automatic, single-phase tubular motor.Automatic, 3-phase outboard motor. |
Control | Rocker switch.Guidance for specification option: Standard. Key switch.Guidance for specification option: Standard. Remote control.Smart phone.Automated.Other.Guidance for specification option: UK Roller Shutters Ltd can access anyone's systems for operation. Consult manufacturer. |
Hardware | Rocker switch.Guidance for specification option: Standard. Key switch.Guidance for specification option: Standard. Remote control.Smart phone.Automated.Other.Guidance for specification option: Wide range of hardware available; consult manufacturer for details and insert requirements. |
Surface spread of flame | To BS 476-7, class 1. |
FireRating | Class A certification. Manufacturer guidanceShutters. |
Battery back-up | Not required. Required. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature
Vision Shutters: Transparent Shutter
UKTPS-01 Brochure

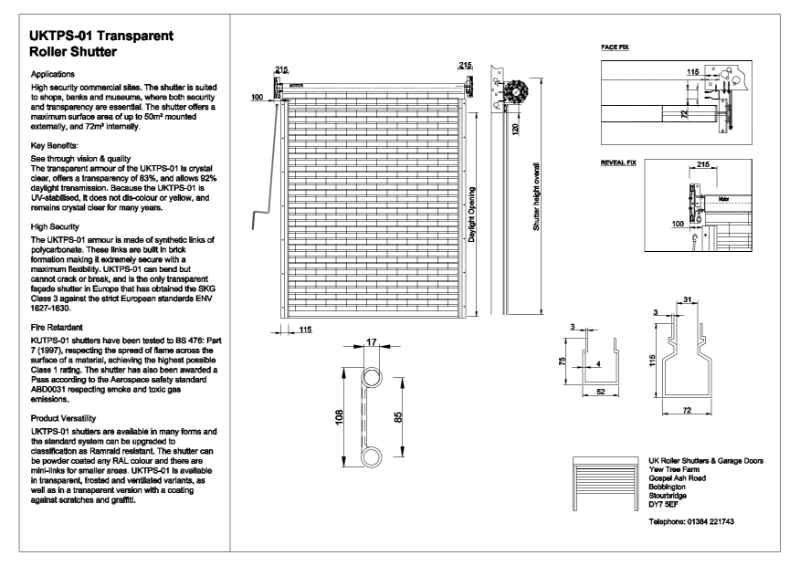

UKTPS-01 Drawings Datasheet
