Timber Frame Isolation System – Farrat CineTIMBER LITE

Name: Timber Frame Isolation System – Farrat CineTIMBER LITE
Brand: Farrat Isolevel Ltd
SKU: 7BBkRViEU52BGoiZN15zwz

Verified by manufacturer 1 month ago

Farrat Isolevel Ltd

Timber frame acoustic isolation system, designed for lightweight cinema stadia seating frames requiring strip isolation.

Jump to:

Request BIM

+44 (0)161 924 1600 Website

Application

Suitable for:

Commercial cinemas.
Lecture theatres.
Home cinemas.
Existing structures.

Description

Timber frame acoustic isolation system, designed for lightweight cinema stadia seating frames requiring strip isolation.

Features and benefits:

Innovative and lightweight stadia seating isolation system.
Takes advantage of high-deflection acoustic washers that pre-compress the load bearing isolation strips.
The system is able to achieve very low natural frequencies with almost no dead load.
Pre-compression means that evenly distributed load is presented to all CineTIMBER LITE isolation strips.
The evenly distributed load allows the same isolation strips to be used for all load cases (subject to maximum load).

General information

Color	Turquoise
Finish	Other
Material	Polyurethane
Shape	Rectangle
Length	1000 mm
Width	100 mm
Height	25 mm
Warranty description	Ten year Manufacturer guidance Up to 10-years

Uniclass	Pr_20_85_85_02 Acoustic and vibration resistant bearingsPrimary
CAWS	G20/615 Bolt/ screw assemblies

SKU Code	2CT-L-01

Product range	Farrat CineTIMBER

Specification data - Acoustic and vibration resistant bearings

Classification data
Material	Foam.
Dimensions	-
Height	25 mm.
Width	100 mm.
Depth	1000 mm.

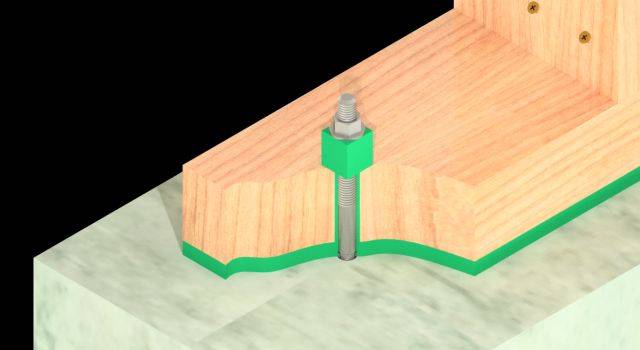

Components	Timber stadia seating frame (contractor-supplied). M12 fixings or bolts (contractor-supplied). Farrat CineTIMBER LITE acoustic isolation strips, 25 mm thick. Guidance for specification option: Product code: 2CT-L-01. Size/Shape: 1000 x 100 x 25 mm. Installation: Allow one strip per meter of sole plate, plus 5% for off-cuts. Farrat CineTIMBER LITE acoustic washers. Guidance for specification option: Product code: 2CT-L-02. Sizing: Suitable for M12 fixings only. Installation: One washer required per bolt. All fixings through isolation strips should incorporate an acoustic washer. Farrat CineTIMBER LITE acoustic bushes. Guidance for specification option: Product code: 2CT-L-03. Sizing: Suitable for M12 fixings only. Installation: One bush required per bolt. All fixings through isolation strips should incorporate an acoustic washer. Hole through timber must be 18 mm diameter. Structural slab, existing or contractor-supplied.
Frequency	- Manufacturer guidance Natural frequency (ƒn): At operating load: 10 Hz. At dead load: 14 Hz.
Maximum live load	- Manufacturer guidance 4 x dead load.
Pressure	0.05 N/mm². Guidance for specification option: Maximum.
Performance	- Manufacturer guidance Consult manufacturer's literature for detailed system performance values Optimal natural frequency performance is achieved between 0.03 and 0.05 N/mm².
Test Standard	Acoustic. Guidance for specification option: Consult manufacturer for further information. Fire. Guidance for specification option: CineTIMBER LITE is not fire rated due to the use of structural timber. Consult manufacturer for further information.
