Steelwork Isolation System – Farrat CineSTEEL MAX
Verified by manufacturer 1 month ago
Steelwork acoustic isolation system, designed for use with stadia seating frames, supporting 4DX cinema technologies.
Application
Suitable for:
- Commercial cinemas.
- Multiplex cinemas.
- 4DX cinemas.
Description
Steelwork acoustic isolation system, designed for use with stadia seating frames, supporting 4DX cinema technologies.
Features and benefits:
- Developed following research into cinema motion technology.
- High performance.
- Designed specifically for 4DX auditoria.
- Incorporates high damping isolators to control and constrain vibration while still providing high levels of sound insulation.
- The system is based on hot-rolled structural steel supporting 150 mm thick cast in-situ concrete stadia.
- Future-proofed using the most extreme calibration routines from 4DX suppliers, CineSTEEL MAX not only isolates the vibration from adjacent auditoria, but also controls the inertial response in the structure that the 4DX seats are mounted to, offering superior motion feedback and a more immersive 4D experience.
General information
Color | Black |
Finish | Other |
Material | Polyurethane |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year Manufacturer guidanceUp to 25-years |
Uniclass | |
CAWS | G10/150 Steel framing system B14/235 Acoustic performance |
Product range |
Specification data - Acoustic and vibration resistant bearings
Classification data | |
Material | Steel. |
Dimensions | |
Height | Guidance for specification option: Bespoke. Consult manufacturer and insert requirements. |
Width | Guidance for specification option: Bespoke. Consult manufacturer and insert requirements. |
Depth | Guidance for specification option: Bespoke. Consult manufacturer and insert requirements. |

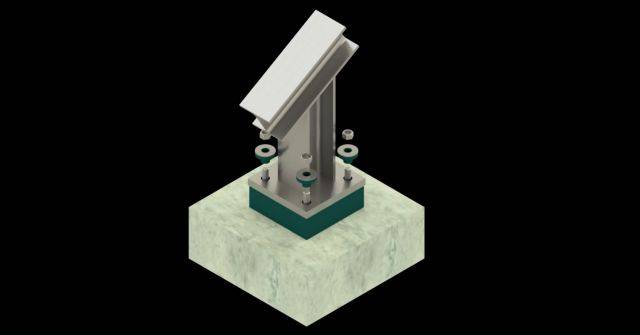

Components | Hot-rolled structural steel seating frame – with 150 mm thick concrete stadia (contractor-supplied). M16/20/24 fixings or bolts (contractor-supplied). Farrat bespoke-cut CineSTEEL MAX isolator pads, 50 mm thick. Guidance for specification option:
Farrat CineSTEEL MAX acoustic washers. Guidance for specification option:
Structural slab, existing or contractor-supplied. |
Frequency | Manufacturer guidanceNatural frequency (ƒn):
|
Maximum live load | Manufacturer guidance4 x dead load. |
Pressure | 4.0 N/mm². Guidance for specification option: Maximum. |
Performance | Manufacturer guidance
|
Fire resistance | 90 minutes. Guidance for specification option: Fire resistance duration. |
Test Standard | Acoustic. Guidance for specification option: Consult manufacturer for further information. Fire. Guidance for specification option: Equal to steel frame rating, up to 90-minutes. Consult manufacturer for further information. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyurethane |
