Partition Base Track Isolation System – Farrat CineWALL LITE

Name: Partition Base Track Isolation System – Farrat CineWALL LITE
Brand: Farrat Isolevel Ltd
SKU: bkYQ4D3pdw8WXJsugV2tTr

Verified by manufacturer 1 month ago

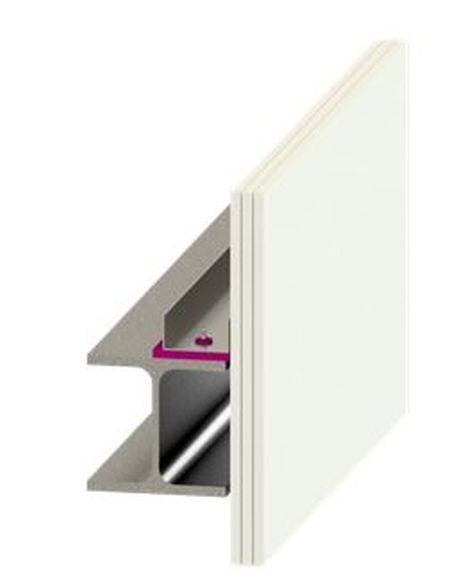

Partition base track isolation system.

Jump to:

Application

Suitable for:

Partition base track acoustic isolation system, designed to provide maximized sound insulation with minimal imposed load.

Features and benefits:

Designed for auditorium walls where exceptionally high sound insulation is required, but wall mass is low.
Can be easily shaped and cut to length on site with a retractable knife.
CineWALL LITE strips ensure a low natural frequency for reduced height and/or composite material walls.
The system can get wet without being damaged, however it will take on water. When wet, the strips will not provide acoustic isolation and will not dry out once installed under a base channel.

Color	Turquoise
Finish	Other
Material	Foam
Shape	Rectangle
Length	1000 mm
Width	130 mm 210 mm 290 mm
Height	12.5 mm 25 mm
Warranty description	Ten year Manufacturer guidance Up to 25 years

Uniclass	Pr_20_85_85_02 Acoustic and vibration resistant bearingsPrimary
CAWS	B14/235 Acoustic performance G10/150 Steel framing system

SKU Code	2CW-L-130

Product range	Farrat CineWALL

Classification data
Material	Foam.
Dimensions	-
Height	12.5 mm.
Width	130 mm. 210 mm. 290 mm.
Depth	1000 mm.
Components	Partition base track (contractor-supplied). Wall sheet material – Generally acoustic plasterboard (contractor-supplied). Base track fixings – Generally M6 mechanical anchors (contractor-supplied). Farrat CineWALL LITE acoustic isolation strips. Guidance for specification option: Size: 1000 x 130/ 210/ 290 x 12.5 mm. Installation: Allow one strip per 1 m of auditorium perimeter, plus 10% for off-cuts. Farrat CineWALL acoustic washers. Guidance for specification option: Sizing: To suit M6 fixings only, however can be used for smaller fixings with a head size <7 mm. Installation: Typically fixings are used at 600 mm centres, however use as per partition manufacturer specification (Note: Extra bushes are not required if two layers are to be used). Structural slab, existing or contractor-supplied.
Frequency	- Manufacturer guidance Natural frequency (fn): Single strip: 13 Hz. Double strip: 9 Hz.
FireRating	- Manufacturer guidance Not currently fire rated.
