Partition Base Track Isolation System – Farrat CineWALL NEO
Verified by manufacturer 1 month ago

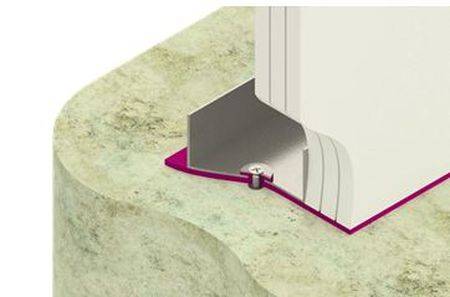

Partition base track isolation system, designed for auditorium walls.
Application
Suitable for:
- Commercial cinemas (limited circumstances - consult manufacturer for details).
- Lecture theatres.
- Home cinemas.
- Existing structures.
Description
Partition base track acoustic isolation system, designed for auditorium walls within cost-constrained projects.
Features and benefits:
- Available in 5 m long rolls to facilitate quick installation.
- Can be easily shaped and cut to length on site with a retractable knife.
- The system can get wet without being damaged, however it will take on water. When wet, the strips will not provide acoustic isolation and will not dry out once installed under a base channel.
General information
Color | Grey |
Finish | Other |
Material | Polyurethane |
Shape | Rectangle |
Length | 5000 mm |
Width | 130 mm 210 mm |
Height | 5 mm |
Warranty description | Five year Manufacturer guidanceUp to 5 years |
Uniclass | |
CAWS | B14/235 Acoustic performance G10/150 Steel framing system |
Product range |
Specification data - Acoustic and vibration resistant bearings
Classification data | |
Material | Foam. |
Dimensions | |
Height | 10 m. Guidance for specification option: Maximum. |
Width | 130 mm. 210 mm. |
Depth | 5000 mm. |
Components | Partition base track (contractor-supplied). Wall sheet material – Generally acoustic plasterboard (contractor-supplied). M4 concrete screws (contractor-supplied). Farrat CineWALL NEO acoustic isolation strips, 5 mm thick. Guidance for specification option:
Farrat CineWALL NEO acoustic bushes. Guidance for specification option:
Structural slab, existing or contractor-supplied. |
Frequency | Manufacturer guidanceNatural frequency (fn):
|
FireRating | Manufacturer guidanceNot currently fire rated. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyurethane |
Literature
Farrat CineWALL NEO
