Steelwork Isolation System – Farrat CineSTEEL PRO

Name: Steelwork Isolation System – Farrat CineSTEEL PRO
Brand: Farrat Isolevel Ltd
SKU: aw4kkdEXx32czpRPmA5mv5

Verified by manufacturer 1 month ago

Farrat Isolevel Ltd

Steelwork acoustic isolation system, designed for commercial multiplex cinema stadia seating frames.

Jump to:

Request BIM

+44 (0)161 924 1600 Website

Application

Suitable for:

Commercial cinemas.
Multiplex cinemas.
Theatres and concert halls.

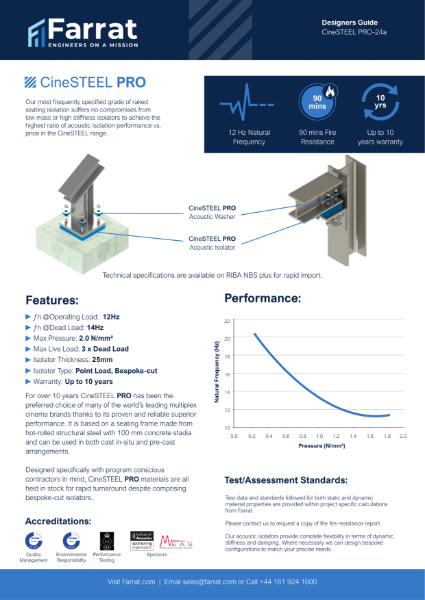

Description

Steelwork acoustic isolation system, designed for commercial multiplex cinema stadia seating frames.

Features and benefits:

Cost effective when compared to the high level of acoustic performance provided.
The preferred choice for many of the world’s leading multiplex cinema brands due to its proven and reliable isolation performance.
The system is based on hot-rolled structural steel supporting 100 mm concrete stadia.
It can be used in both cast in-situ and pre-cast arrangements.

General information

Color	Black
Finish	Other
Material	Polyurethane
Shape	Rectangle Square
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Manufacturer guidance Up to 25-years

Uniclass	Pr_20_85_85_02 Acoustic and vibration resistant bearingsPrimary
CAWS	G10/150 Steel framing system B14/235 Acoustic performance

Product range	Farrat CineSTEEL

Specification data - Acoustic and vibration resistant bearings

Classification data

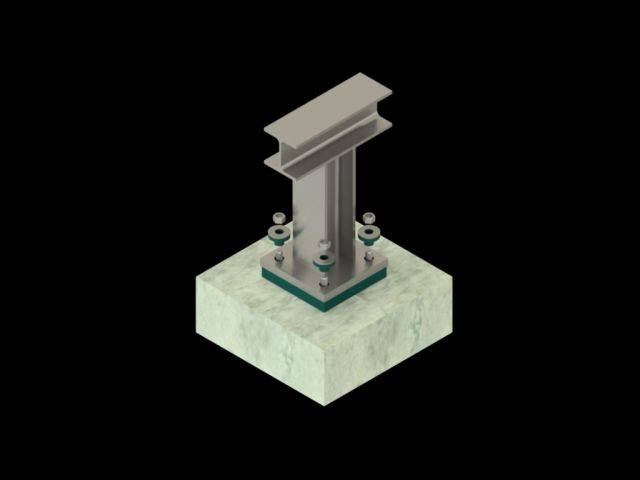

Components	Hot-rolled structural steel seating frame – with 100 mm thick concrete stadia (contractor-supplied). M16/20/24 fixings or bolts (contractor-supplied). Farrat bespoke-cut CineSTEEL PRO isolator pads, 25 mm thick. Guidance for specification option: Product code: N/A – CineSTEEL PRO acoustic isolators require bespoke calculation and design. Size: To match steel baseplates. Installation: Placed directly between any seating steelwork, slab or seating steelwork, or structural steelwork connection. Farrat CineSTEEL PRO acoustic washers. Guidance for specification option: Product code: 2CS-P-16/20/24. Sizing: Dependant on selected fixing or bolt type; M16, M20 or M24. Installation: One washer required per bolt. All fixings through isolators should incorporate an acoustic washer. Structural slab, existing or contractor-supplied.
Frequency	- Manufacturer guidance Natural frequency (ƒn): At operating load: 12 Hz. At dead load: 14 Hz.
Maximum live load	- Manufacturer guidance 3 x dead load.
Pressure	2.0 N/mm². Guidance for specification option: Maximum.
Performance	- Manufacturer guidance Consult manufacturer's literature for detailed system performance values. Optimal natural frequency performance is achieved between 1.2 and 2.0 N/mm².
Fire resistance	90 minutes. Guidance for specification option: Fire resistance duration.
Test Standard	Acoustic. Guidance for specification option: Consult manufacturer for further information. Fire. Guidance for specification option: Equal to steel frame rating, up to 90-minutes. Consult manufacturer for further information.
