Partition Base Track Isolation System – Farrat CineWALL PRO

Name: Partition Base Track Isolation System – Farrat CineWALL PRO
Brand: Farrat Isolevel Ltd
SKU: 9YPv5tR54fRBDhqaXdSBr5

Verified by manufacturer 1 month ago

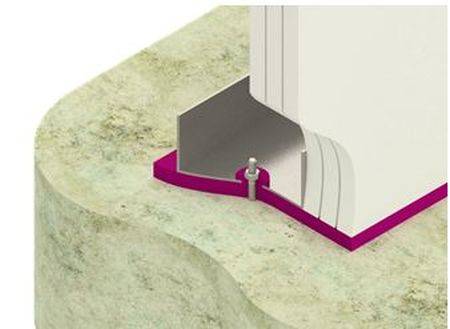

Partition base track isolation system.

Jump to:

Application

Suitable for:

Partition base track acoustic isolation system, designed to provide optimal performance at an optimal cost.

Features and benefits:

Provides the highest ratio of acoustic isolation performance against cost.
Can be easily shaped and cut to length on site with a retractable knife.
The system can get wet without being damaged, however it will take on water. When wet, the strips will not provide acoustic isolation and will not dry out once installed under a base channel.

Color	Black
Finish	Other
Material	Polyurethane
Shape	Rectangle
Length	1000 mm
Width	130 mm 210 mm 290 mm
Height	12.5 mm 25 mm
Warranty description	Ten year Manufacturer guidance Up to 15 years

Uniclass	Pr_20_85_85_02 Acoustic and vibration resistant bearingsPrimary
CAWS	B14/235 Acoustic performance G10/150 Steel framing system

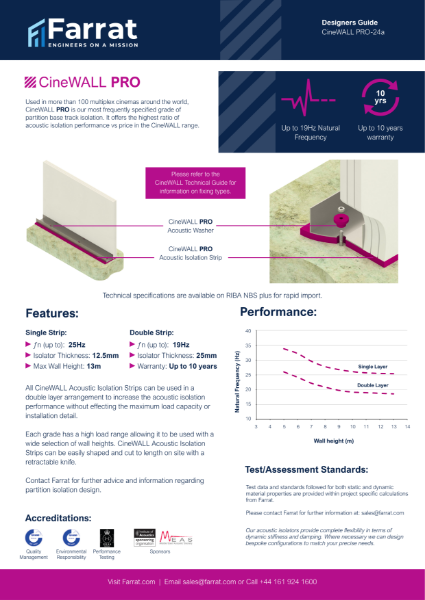

Product range	Farrat CineWALL

Classification data
Material	Rubber.
Dimensions	-
Height	13 m. Guidance for specification option: Maximum.
Width	130 mm. 210 mm. 290 mm.
Depth	1000 mm.
Components	Partition base track (contractor-supplied). Wall sheet material – Generally acoustic plasterboard (contractor-supplied). Base track fixings – Generally M6 mechanical anchors (contractor-supplied). Farrat CineWALL PRO acoustic isolation strips, 5 mm thick. Guidance for specification option: Size: 1000 x 130/ 210/ 290 x 5 mm. Installation: Allow one strip per 1 m of auditorium perimeter, plus 10% for off-cuts. Farrat CineWALL acoustic washers. Guidance for specification option: Sizing: To suit M6 fixings only, however can be used for smaller fixings with a head size <7 mm. Installation: Typically fixings are used at 600 mm centres, however use as per partition manufacturer specification (Note: Extra bushes are not required if two layers are to be used). Structural slab, existing or contractor-supplied.
Frequency	- Manufacturer guidance Natural frequency (fn): Single strip: 25 Hz. Double strip: 19 Hz.
FireRating	- Manufacturer guidance Not currently fire rated.
