Spell Hill Activity Tower - Children's Multiplay Activity Tower

Verified by manufacturer 2 months ago

Redlynch Leisure Installations Ltd Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • TUV - Safety and Quality Report

    Certificate type

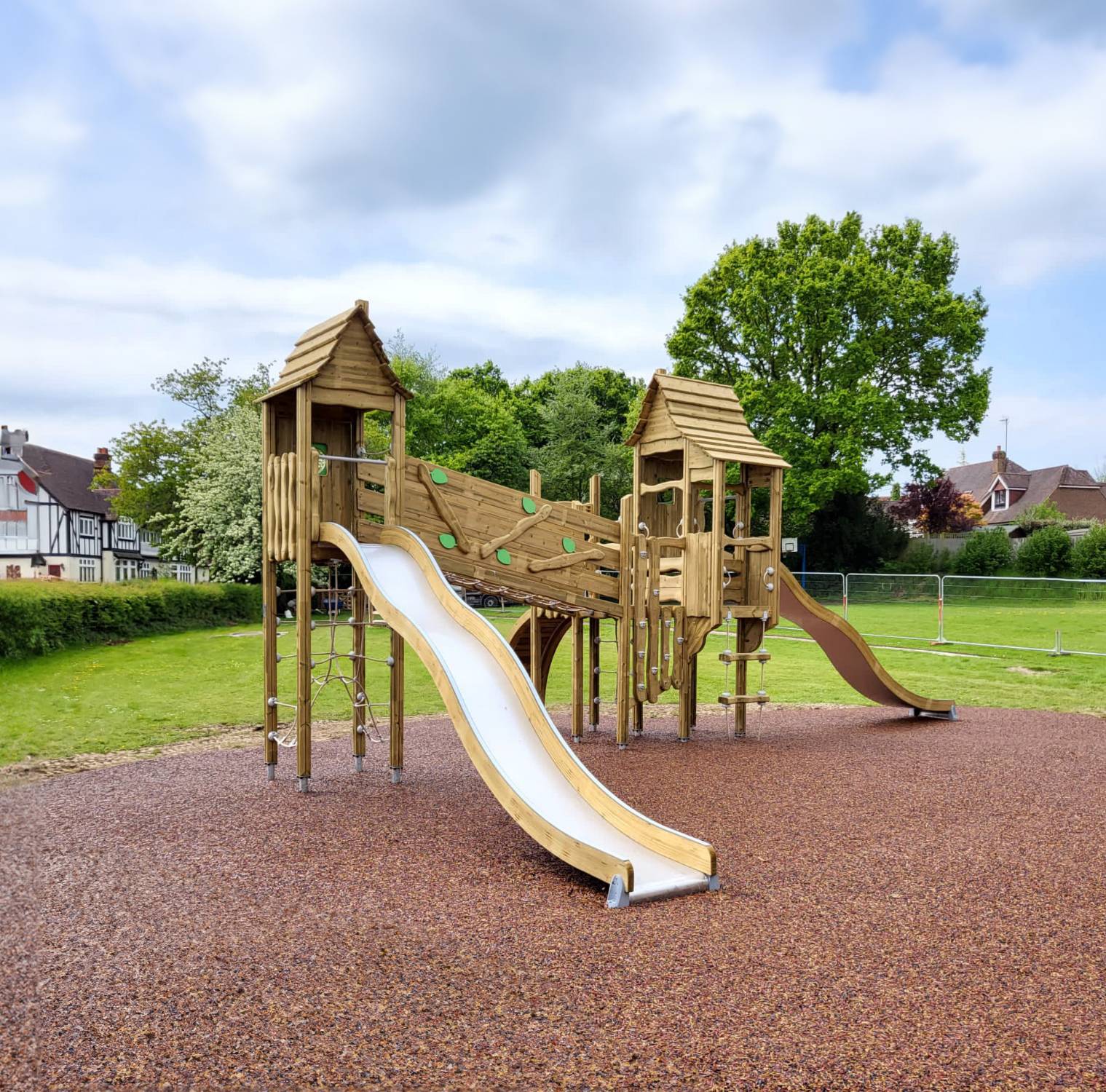

Children's multiplay activity area with two different sized towers connected by a slightly slanted net bridge, grand slides and numerous climbing features.

Jump to:
+44 (0)1249 444537 Website

Application

Outdoor children's multiplay activity tower structure, designed for public playground use.

Suitable for up to 13 users, age 3+.

Description

Children's multiplay activity tower.


Features and benefits:

  • Two different sized towers that reach up to almost 4 m.
  • Tower 1 includes climbing net, rope ladder with wooden rungs, curved climbing platform with grips and a rope, and a large slide at 1.9 m deck height.
  • A 2.5 m-long slightly slanted net bridge with handrails connects tower 1 to tower 2.
  • Tower 2 has a U-shaped net suspended beneath it for climbing or relaxing. This can also be access from the ground.
  • Tower 2 also has a large slide at 1.9 m deck height.
  • Made in Finland.
  • Suitable for up to 13 users, age 3+.

General information

Color

Silver

Guidance for specification option:

Metal.

Brown

Guidance for specification option:

Wood.

Black

Guidance for specification option:

Rope.

Other

Finish

Natural

Material

Wood

Metal

Shape

Other

Length

8970 mm

Width

6800 mm

Height

3970 mm

Warranty description

15 year

Uniclass

Pr_40_30_61_18 Combined play structuresPrimary

CAWS

Q52/340 Combined play structure

Q52/330 Climbing frame

Specification data - Combined play structures

Standard

To EN 1176-1 and EN 1176-3 (TÜV).

Age range

3+.

Highest platform height

1.47 m.

Components

Climbing sections: Five.
Balancing: One.
Bridges: One.
Slides: Two (one per tower).
Towers: Two, each with a roof.

Guidance for specification option:

As standard; see Accessories for further options.

Materials

Wood/ metal.

Guidance for specification option:

Primary material only; consult manufacturer for further details.

Finish as delivered

-

Finish type

Manufacturer's standard.

Film thickness (minimum)

Manufacturer's standard.

Colours

Natural (silver and brown).

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Wood components can be stained (colour details required).

Accessories

None.

Non-standard slide.

Guidance for specification option:

The slides as standard are the same size but it is possible to change one to a smaller slide, consult manufacturer for options and insert requirements.

Monkey bars.

Guidance for specification option:

Consult manufacturer for details.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Plan Size

8.97 x 6.80 m.
Required area: 12.73 x 10.22 m.

Guidance for specification option:

Impact area: 66 m².

Largest part: 4.01 m.

Overall height

3.97 m.

Post foundations

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Weight

870 kg.

Guidance for specification option:

Heaviest component: 83 kg.

Installation

Approx. 48 hours per structure.

Technical characteristics, other

Falling space area: 38 m².
Falling space length: 8.22 m.
Falling space width: 6.68 m.
Maximum free fall height: 1.915 m.
Number of users: 19.

Sustainability data

Contains Red List materials

No

Country of material origin

Finland

Country of product manufacture

Finland

Recyclability

All parts of this product are recyclable

Third party certifications

CHAS

CHAS

CHAS Advanced

Constructionline Gold

Constructionline Gold

Constructionline Gold

Rospa Safety Charity

Rospa Safety Charity

Rospa

TUV - Safety and Quality Report

TUV - Safety and Quality Report

TUV Spell Hill

Literature

API Membership Certificate

API Membership Certificate

Lappset Warranty Document

Lappset Warranty Document

Lappset Maintenance Instructions

Lappset Maintenance Instructions

Redlynch Catalogue

Redlynch Catalogue

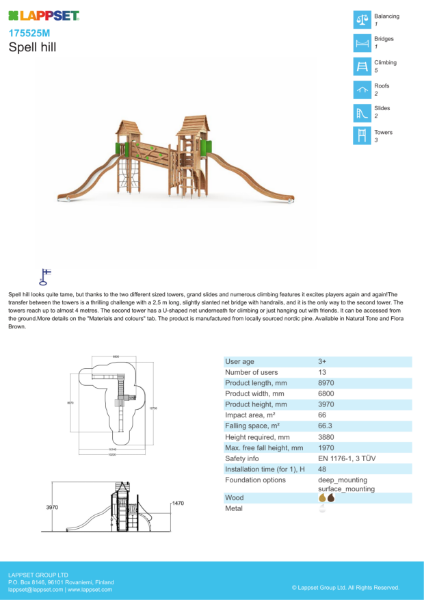

Spell Hill Product Sheet

Spell Hill Product Sheet
