Reverse Mono Pitch Cantilevered Aluminium Canopy
Verified by manufacturer 29 days ago

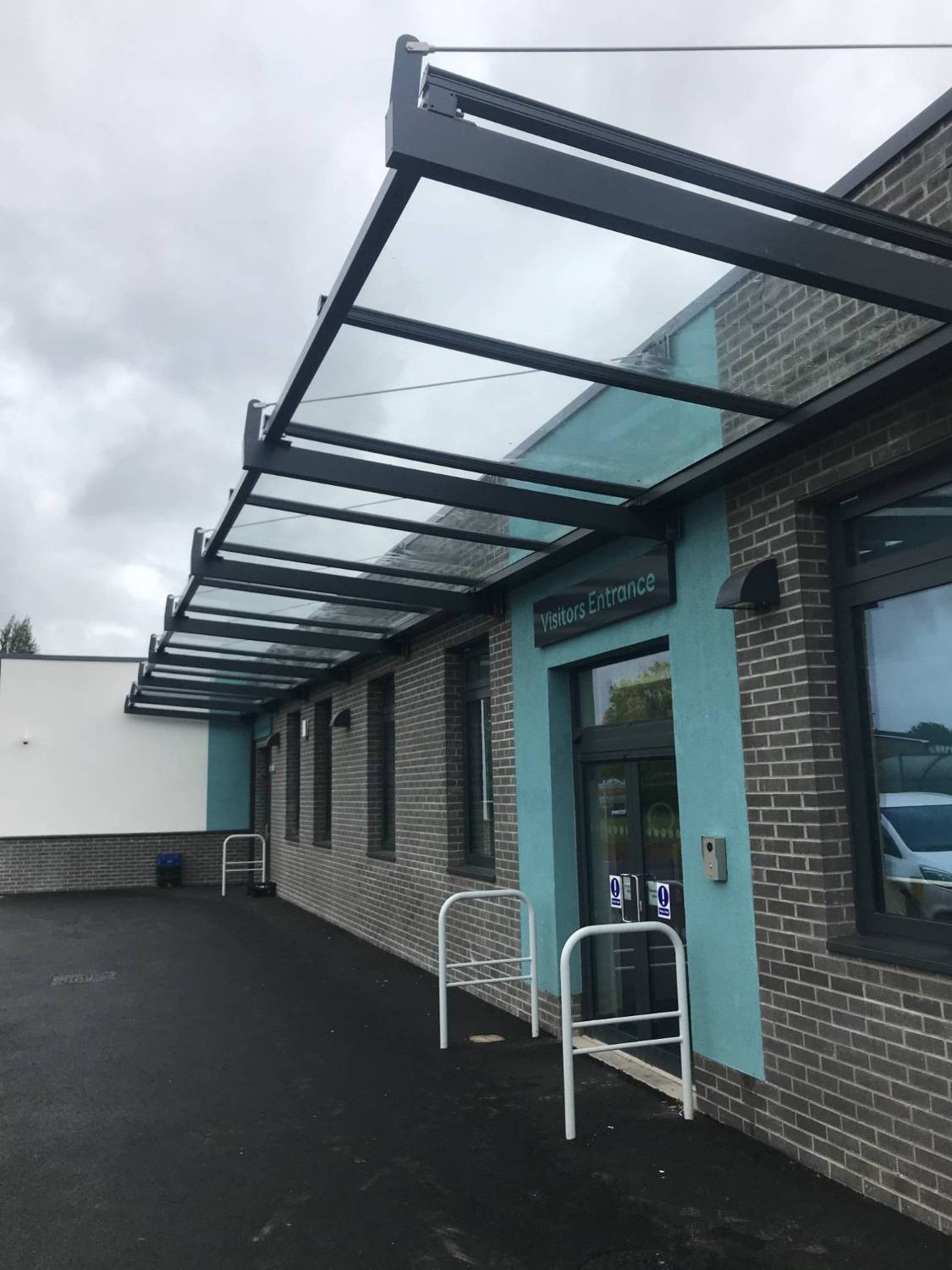

Cantilevered aluminium canopy with 13.5 mm clear toughened laminated glass.
Application
Suitable for retail and health sectors.
Description
The canopy structure comprises of a light weight, rust resistant aluminium frame that can be powder coated to any standard RAL colour and is glazed with Twinfix P286 glazed roof system.
UKCA marked to BSI-EN 1090-1 - Execution of Steel and Aluminium Structures: Canopy structures.
General information
Finish | Powder-coated Guidance for specification option: Any RAL colour. |
Material | Aluminium Glass |
Uniclass | |
CAWS | B91/330 Canopy |
Specification data - Open-sided shelters
Classification data | |
Shelter description | Twinfix Reverse Mono Pitch Cantilevered Canopy Glazed With 13.5 mm Toughened Laminated Glass In The P286 Aluminium System. |
Dimensions | |
Plan size | Manufacturer guidancePanel width: 1400 mm (maximum). |
Frame | |
Material | Extruded aluminium bars and canopy structure to BS 1474. |
Finish | Polyester powder coating to BS 6496. |
Roof covering | 13.5 mm laminated toughened glass. |
Accessories | None. Aluminium side trims. Head flashing. Mechanical end plates. Ridge flashing. Signage. Vertical glazing. |
Fixings | Stainless steel self-tapping screws and stainless steel bolts/ nuts as recommended by Twinfix. |
Pitch | Manufacturer guidanceMinimum pitch: 5°. |
Sustainability data
Country of material origin | United Kingdom |
Recyclability | 100% |
