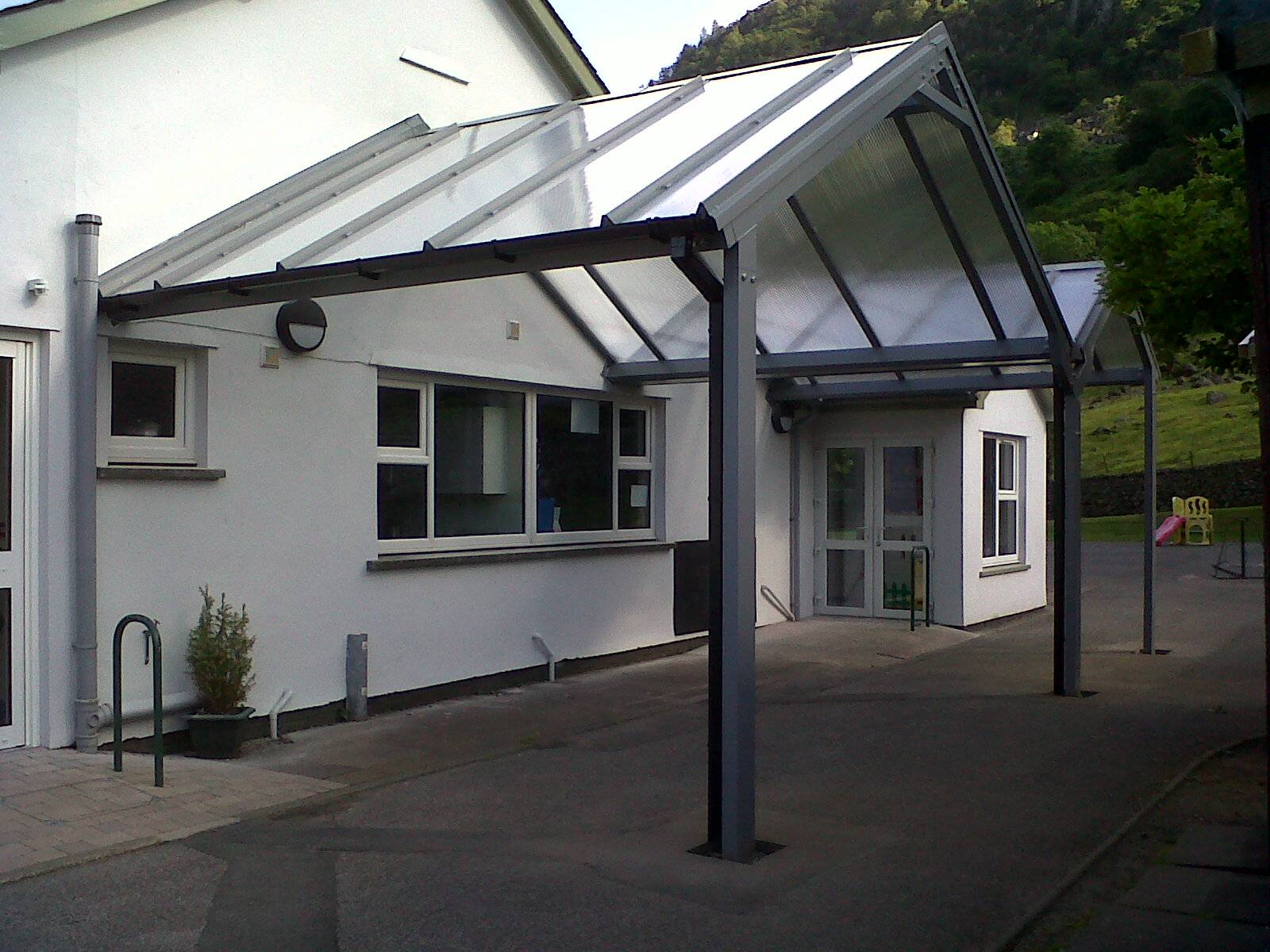

Free Standing Duo Pitch Canopy - Canopy
Verified by manufacturer 7 months ago
Free standing canopy with full aluminium portal framework and duo pitched roof consisting of Multi-Link-Panels (see separate product).
Application
Suitable for all education, industrial, health and commercial institutions.
Description
Free standing canopy with full aluminium portal framework and duo pitched roof consisting of Multi-Link-Panels (see separate product).
Features and benefits:
- Lightweight and recyclable framework.
- Glazing provides UV protection.
- UKCA certified.
General information
Color | Black Green Grey Red White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | B91/385 Shelter |
Specification data - Open-sided shelters
Shelter description | Free standing duo pitch canopy. |
Dimensions | |
Plan size | Manufacturer guidanceBespoke. Consult manufacturer and insert requirements. |
Height | Manufacturer guidanceBespoke. Consult manufacturer and insert requirements. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, B-s1,d0.Guidance for specification option: Class 1y-BS 476 Pt7, Class 0-BS 476 Pt 6 & 7, Tp(a). |
Frame | |
Material | Aluminium. |
Finish | Polyester powder-coated. |
Colour | BlackWhiteBlueRedYellowGreenGreySpecial order. |
Roof covering | Polycarbonate.7.5 mm Glass. |
Rainwater drainage | Aluminium guttering and downpipes.PVC-U guttering and downpipes. |
Accessories | None.Flashings.Gable glazing.Vertical glazing.Roller shutters.Vents.Signs, Doors & Windows.Foundation Pots.Post protectors.Site Specific Calculations. |
Fixings | Stainless steel self-tapping screws and bolts. |
FrameSize | Bespoke. |
Frame width | Bespoke. |
Tint | Clear. Opal. Guidance for specification option: Not available with solid. |
External | True. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
