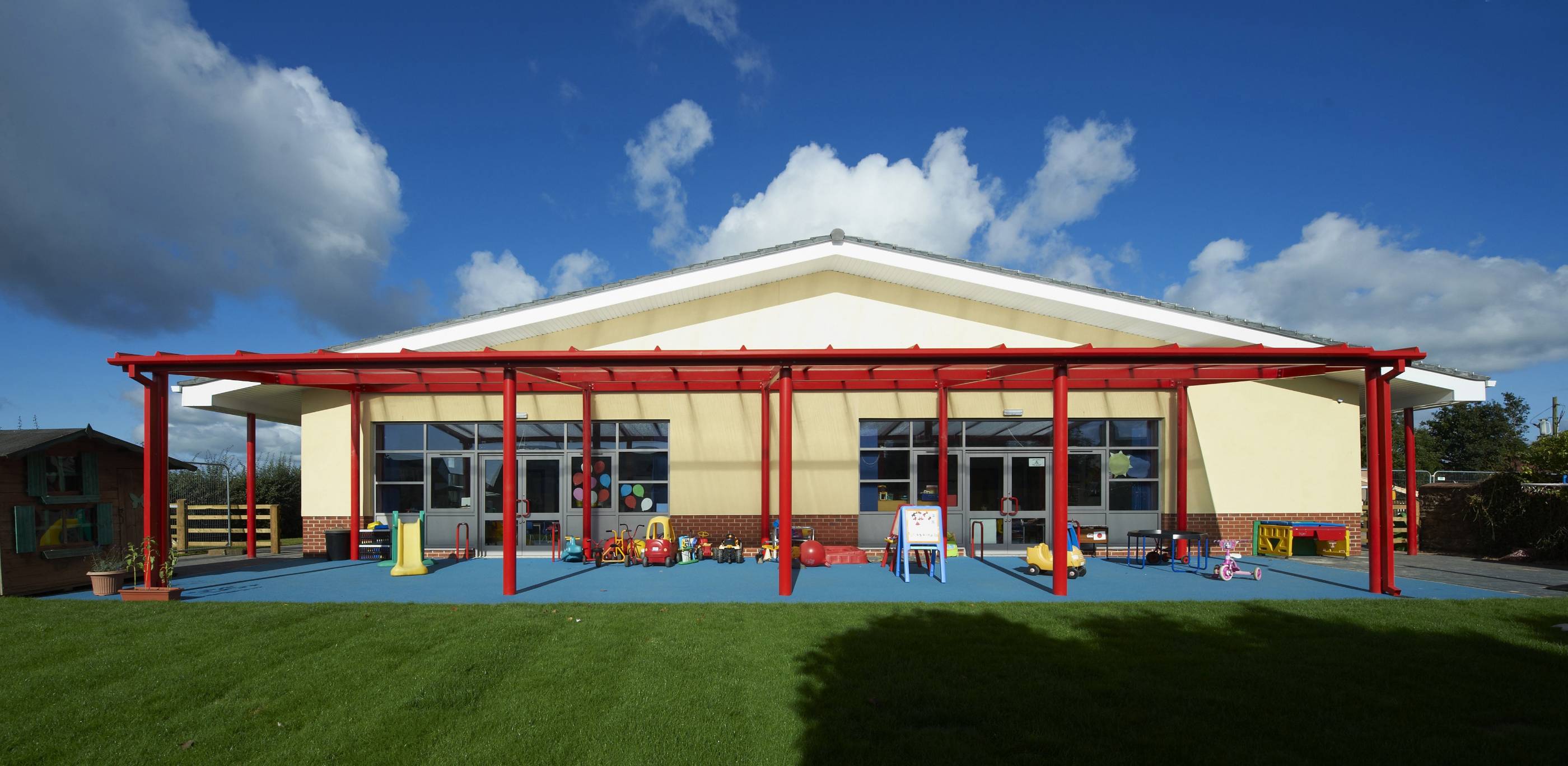

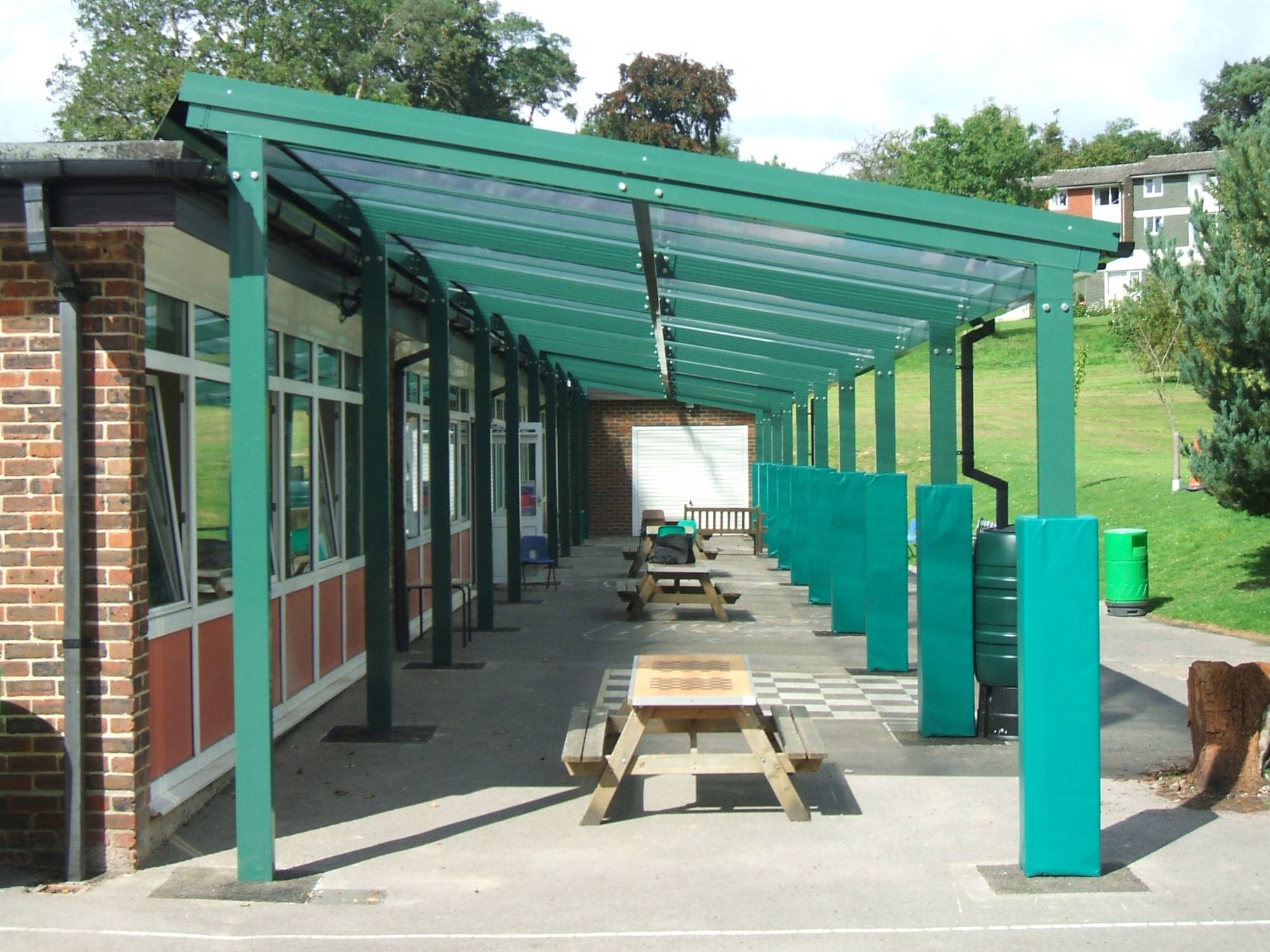

Free Standing Mono Pitch Canopy - Canopy

Verified by manufacturer 7 months ago

Twinfix Limited

Free standing canopy with full aluminium portal framework and mono pitched roof consisting of non-fragile Multi-Link-Panels.

Jump to:
BOS
+44 (0)1925 811311 Website

Application

Suitable for all education, industrial, health and commercial institutions.

Description

Free standing canopy with full aluminium portal framework and mono pitched consisting of non-fragile Multi-Link-Panels.


Features and benefits:

  • Lightweight and recyclable framework.
  • Glazing provides UV protection.
  • UKCA

General information

Color

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Free standing mono pitch canopy.

Dimensions

-

Plan size

-

Manufacturer guidance

Bespoke. Consult manufacturer and insert requirements.

Height

-

Manufacturer guidance

Bespoke. Consult manufacturer and insert requirements.

Fire performance

-

Reaction to fire

To BS EN 13501-1, B-s1,d0.

Guidance for specification option:

  • To BS 476 (part 7), Class 1y.
  • To BS 476 (part 6 and 7, Tp(a), Class 0.

Frame

-

Material

Aluminium.

Finish

Polyester powder-coated.

Colour

Black.

White.

Blue.

Red.

Yellow.

Green.

Grey.

Special order.

Roof covering

Polycarbonate.

7.5 mm Glass.

Rainwater drainage

Aluminium guttering and downpipes.

PVC-U guttering and downpipes.

Accessories

None.

Flashings.

Gable glazing.

Vertical glazing.

Roller shutters.

Vents.

Signs.

Doors & Windows.

Foundation pots.

Post protectors.

Site specific calculations.

Fixings

Stainless steel self-tapping screws and bolts.

FrameSize

Bespoke.

Manufacturer guidance

Post centre options.

Frame width

Bespoke.

Tint

Clear.

Opal.

Guidance for specification option:

Not available with solid.

External

True.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3
