Meridian Lean-To Canopy

Verified by manufacturer 7 months ago

Twinfix Limited

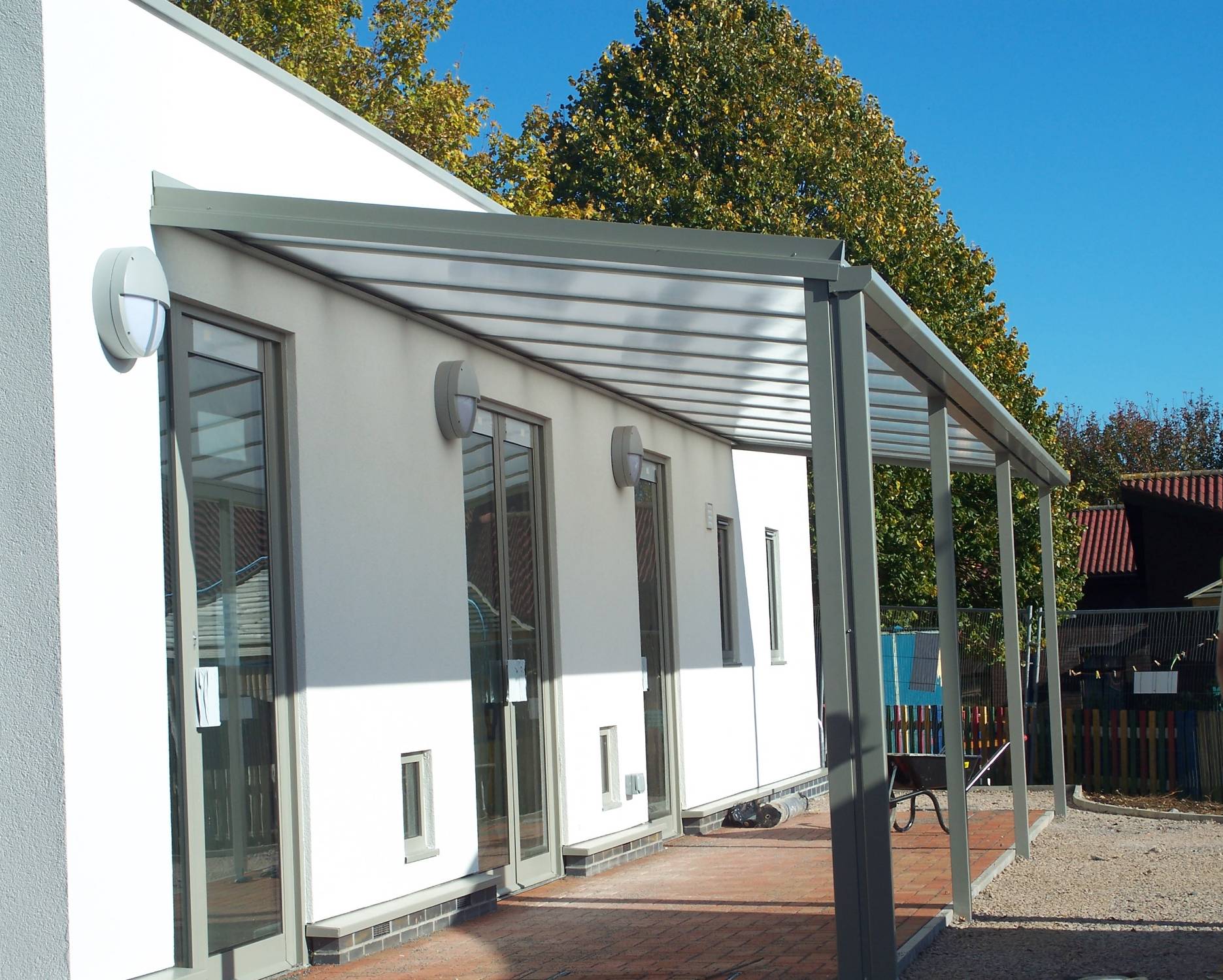

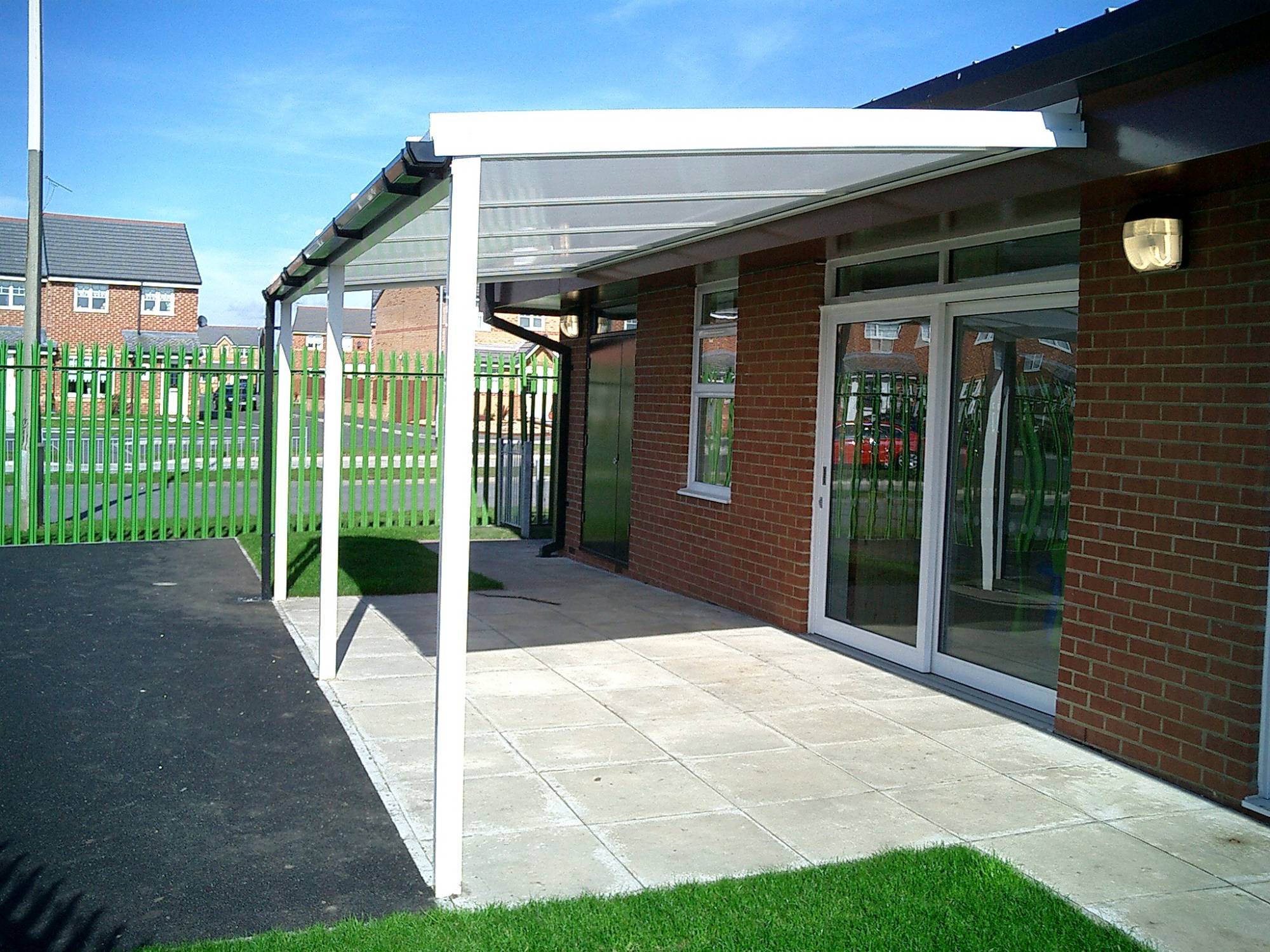

Lean-to canopy with aluminium wall plate and aluminium eaves beams and columns with a Multi Link-Panel Non-Fragile

Jump to:
BOS
+44 (0)1925 811311 Website

Application

Suitable for all education, industrial, health and commercial institutions.

Description

Features and benefits:

  • Lean-to canopy with aluminium wall plate and aluminium eaves beams and columns with a Multi-Link-Panel Non-Fragile
  • Maximum projection is 3 m and maximum bay size is 4 m.
  • Lightweight and recyclable framework.
  • Glazing provides UV protection.
  • UKCA certified.

General information

Finish

Powder-coated

Material

Aluminium

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/385 Shelter

Specification data - Open-sided shelters

Dimensions

-

Plan size

75 x 75 box frame.

Frame

-

Material

Aluminium.

Colour

RAL 1021.

RAL 3020.

RAL 5010.

RAL 6002.

RAL 6005.

RAL 7035.

RAL 7037.

RAL 9011.

RAL 9910.

Special order.

Roof covering

Polycarbonate.

Glass.

Rainwater drainage

Aluminium guttering and downpipes.

PVC-U guttering and downpipes.

Accessories

None.

Flashings.

Gable glazing.

Vertical glazing.

Roller shutters.

Vents.

Signs.

Doors and Windows.

Foundation Pots.

Post protectors.

Site specific calculations.

Fixings

Stainless steel self-tapping screws & bolts.

FrameSize

1000 mm x 4000 mm.

Manufacturer guidance

Post centre options.

Frame width

1000 x 3000 mm.

Tint

Clear.

Opal.

Guidance for specification option:

Not available with solid.

Type

Laminated.

Guidance for specification option:

6.8 mm thick glass.

ML16NF.

Guidance for specification option:

16 mm thick Makrolon triplewall polycarbonate.

Solid.

Guidance for specification option:

6 mm thick polycarbonate.

Layers

1.

Glass thickness

7.5 mm.

Fire rating (to BS EN 13501)

B-s1, d0.

External

True.

Sustainability data

Country of material origin

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
