Free Standing Barrel Vault Canopy - Canopy
Verified by manufacturer 29 days ago

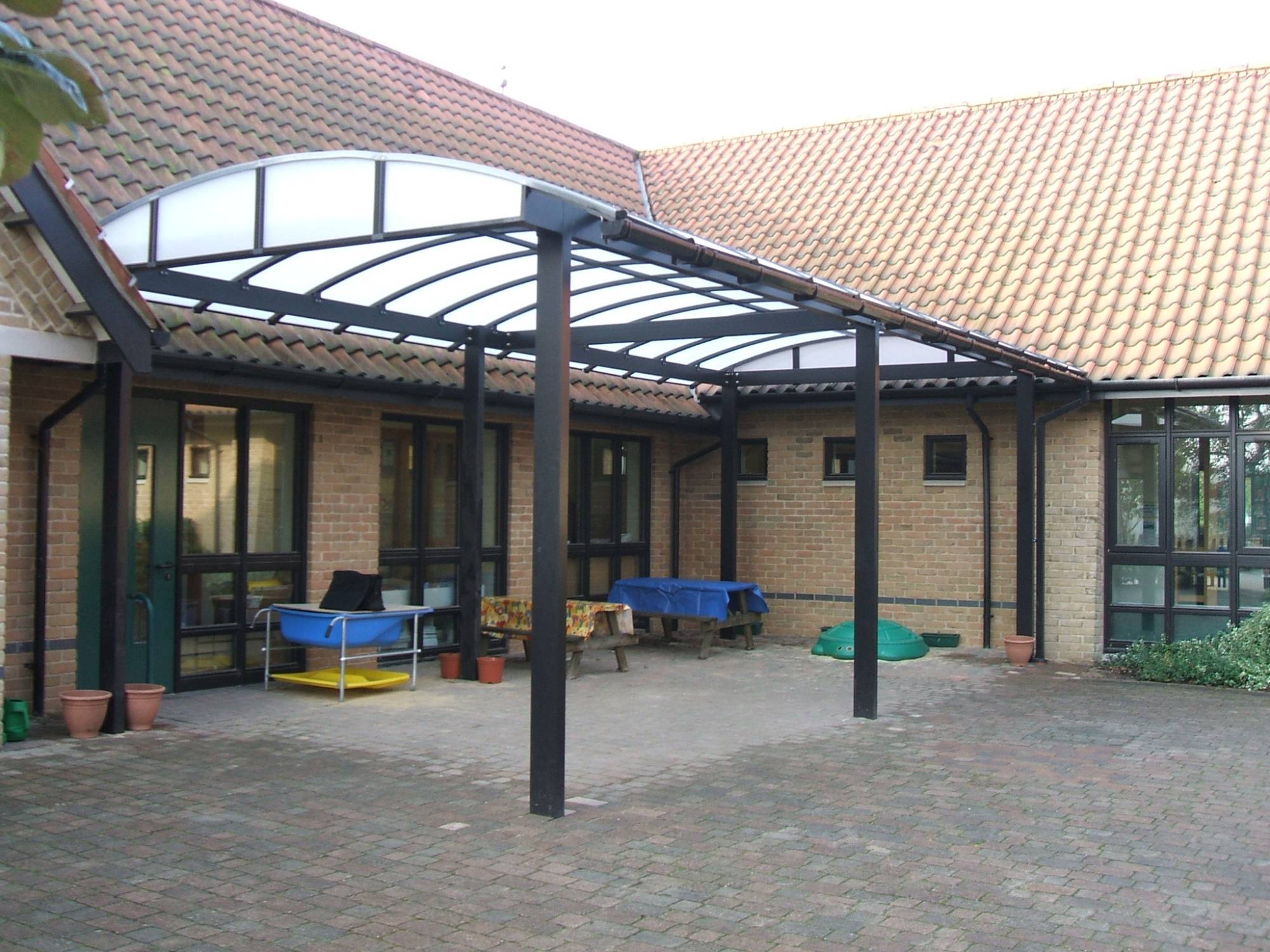

Free standing canopy with full aluminium portal framework and curved roof consisting of aluminium roof bars/ caps and polycarbonate sheet.
Application
Suitable for all education, industrial, health and commercial institutions.
Description
Free standing canopy with full aluminium portal framework and curved roof consisting of aluminium roof bars/ caps and polycarbonate sheet.
Features and benefits:
- Lightweight and recyclable framework.
- Glazing provides UV protection.
- Non-fragile.
- UKCA certified.
General information
Color | Black Green Grey Red White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | B91/385 Shelter |
Specification data - Open-sided shelters
Classification data | |
Shelter description | Free standing barrel vault canopy. |
Dimensions | |
Plan size | Manufacturer guidanceBespoke. Consult manufacturer and insert requirements. |
Height | Manufacturer guidanceBespoke. Consult manufacturer and insert requirements. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, B-s1,d0. Guidance for specification option: Class 1y-BS 476 Pt7, Class 0-BS 476 Pt 6 & 7, Tp(a). |
Frame | |
Material | Aluminium. |
Finish | Polyester powder-coated. |
Colour | Black. White. Blue. Red. Yellow. Green. Grey. Special Order. |
Roof covering | Polycarbonate glazing. |
Rainwater drainage | Aluminium guttering and downpipes. PVC-U guttering and downpipes. |
Accessories | None. Flashings. Gable glazing. Vertical glazing. Roller shutters. Vents. Signs, Doors & Windows. Foundation Pots. Post Protectors. Site Specific Calculations. |
Fixings | Stainless steel self-tapping screws and bolts. |
FrameSize | Bespoke. Manufacturer guidanceFrame Length - Post Centre Options |
Frame width | Bespoke. |
Tint | Clear. Opal. |
External | True. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
