Bolted Glass Canopy

Verified by manufacturer 7 months ago

Twinfix Limited

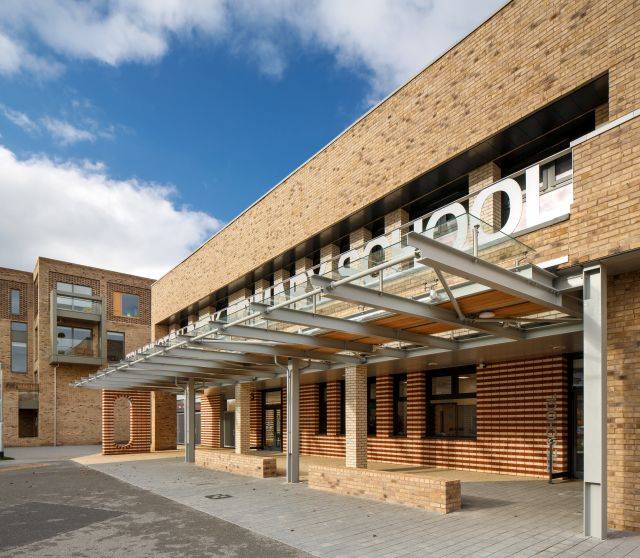

Bolted glass canopy, glazed with toughened laminated glass.

Jump to:
+44 (0)1925 811311 Website

Application

Suitable for retail, industrial and commercial use.

Description

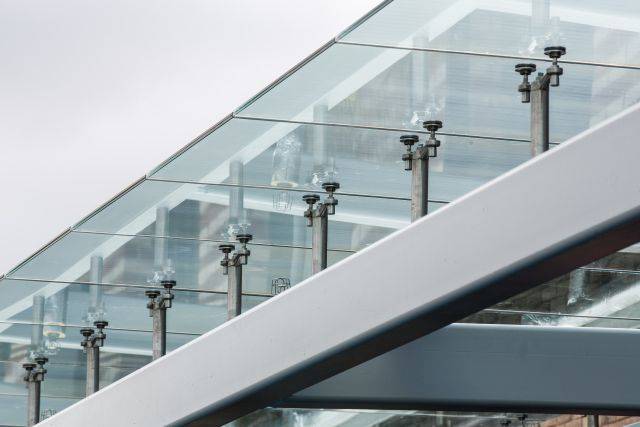

Bolted glass canopy structural framework with a glass roof, fixed with grade 1.4401 (316) stainless steel routel bolts to bespoke centres.

The canopy structure comprises a frame (available in three variations), vertical columns (available in three variations), rafters and purlins.


Features and benefits:

  • Use of bolts rather than glazing bars creates clean lines and large, open areas of glass.
  • Suitable for use in any sector; can be used as a feature or to provide shelter over walkways/ general purpose areas.
  • Designed to be reverse-pitch, to allow drainage to run into a gutter next to the building.
  • Blends seamlessly into modern buildings, but can also be used on more traditional and historical buildings.
  • UKCA marked to BSI-EN 1090-1.

General information

Finish

Powder-coated

Material

Glass

Steel

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

Specification data - Open-sided shelters

Frame

-

Material

Stainless steel, polyester powder-coated aluminium; zinc.

Guidance for specification option:

Polyester powder coating to BS 6496.

Colour

Guidance for specification option:

Consult manufacturer.

Not available with stainless steel frame.

Accessories

Not required.

Post protector.

Powder-coated aluminium gutters.

Thickness

13.5 mm.

Guidance for specification option:

Depending on site location and the distance between bolts, glass thickness may vary. Consult manufacturer for details.

Fixing

Cantilever.

Guidance for specification option:

Stainless steel screws and stainless steel bolts/ nuts as recommended by Twinfix.

Freestanding.

Pitch

5°.

Guidance for specification option:

Minimum Pitch

Infill

Clear.

Frosted.

Vertical columns

Circular.

Profiled.

Square.

Sustainability data

Country of material origin

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
