Resin Flooring System Resuflor™ Decoquartz BC

Name: Resin Flooring System Resuflor™ Decoquartz BC
Brand: Sherwin-Williams
SKU: csV5SFBeXnSwop4k36qmrf

Verified by manufacturer 23 days ago

Sherwin-Williams

Decorative epoxy broadcast flooring system.

Jump to:

+44 (0)1204 521771 Website

Application

For use in:

Kitchens
Wet areas.
Pharmaceutical Production.
Vehicle areas.
Animal compounds and veterinary areas.
External walkways.
Healthcare industry.
Production areas.
Industrial workshops.

Description

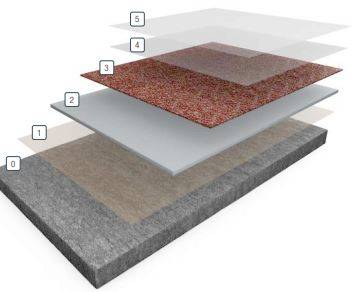

Resuflor Deco Quartz BC is a multi-layer decorative flooring system which utilises coloured quartz aggregates which are bound into a resin binder. The system has high slip resistance in both wet and dry conditions.

Features and benefits:

Excellent slip resistance in wet and dry conditions.
Decorative appearance with industrial durability
Ease of application.
Low odour.
Matt or gloss system.
Good abrasion and impact resistance.
Good chemical resistance.
Non-dusting.
FerFa class: 4.
Accepts light traffic after 24 hours.
Full curing time of eight days (at 10°C); five days (at 30°C).

General information

Color	Red Grey Beige Blue Cream Green Ivory Turquoise Yellow Show more
Finish	Textured Matt Gloss
Material	Epoxy resin Quartz Aggregate
Shape	Formless
Length	Bespoke
Width	Bespoke
Height	- Manufacturer guidance 3–4 mm.

Uniclass	Ss_30_42_54_75 Resin flooring systemsPrimary
CAWS	M12/110 Resin flooring M12/10 Resin flooring

Specification data - Resin flooring systems

Substrate	-
Testing	Moisture content to BS 8204.
Preparation	Preparation of existing substrates. Guidance for specification option: Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.
Levelling screed	Resuflor SL X.
Primer	Resuprime ST.
Resin flooring	Coloured quartz scatter. Guidance for specification option: Bound into a resin binder.
Surface treatment	Not required. Resupen WB Clear.

Grout coat	Resuflor HB Clear.
Joints	Not required. Epo-Flex™ VJ. Guidance for specification option: The spacing and type of joints should be determined prior to the resin floor system being installed. Mix Epo-Flex VJ Part A (base) with Epo-Flex VJ Part B (hardener). These units are in pre-weighed containers. Mix using a low speed mixer and paddle (300–400 rpm) for 2–3 minutes, until a uniform mixed product is obtained. Apply the Epo-Flex VJ immediately to the prepared and cut joints with a knife to a consistent smooth finish.
Shore Hardness - D	To DIN ISO 7619-1, 2 (at 24 hours).
Abrasion resistance	To ASTM D4060, 40 mg loss per 1000 cycles.
CompressiveStrength	To EN13892-2, 39.2 MPa.
TensileStrength	To BS 6319-7, 12.2 MPa.
Flexural strength	To EN 13892-2, 19.2 N/mm².
Bond strength	To EN 13892-2, >3 N/mm².
Impact resistance	To BS EN 1504-2:2004, Class II.
Temperature resistance	Up to 50°C.
Application temperature	10–25ºC.
Reaction to fire	To BS EN 13501-1:2018, Bfl–s1.
System thickness	3–4 mm.
