Resin Flooring System Acrydur™ RA

Verified by manufacturer 4 months ago

Sherwin-Williams

Methyl methacrylate (MMA) car park ramp floor system.

Jump to:
+44 (0)1204 521771 Website

Application

For use in:

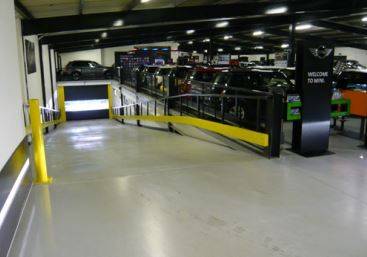

  • Car park ramps.
  • Baggage handling area ramps.
  • External vehicle ramps.
  • Heavy duty plant and traffic areas.

Description

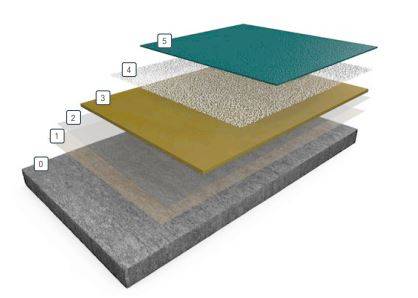

Acrydur Topfloor RA is a 6 mm thick, fast curing MMA resin flooring system for car park ramps and similar heavy duty vehicle applications. The finish features a scratch coat and base coat with quartz aggregate scatter and a coloured topcoat to create a tough finish suitable for cars and other vehicles.


Acrydur Topfloor RA creates traction and reduces skidding and noise from traffic movement.


Features and benefits:


  • Coloured finish.
  • High chemical resistance.
  • Reduced tyre squeal and noise.
  • Good slip and skid resistance.
  • Hard-wearing.
  • Non-dusting.
  • Curing time of 1–2 hours (light traffic); 3–4 hours (designed traffic).
  • UV stable.
  • FerFa class 5–6.

General information

Color

Finish

Textured

Material

Methyl methacrylate

Resin

Quartz

Aggregate

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

6 mm

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.

Primer

Acrydur PR01.

Acrydur PR02.

Resin flooring

Quartz aggregate scatter.

Surface treatment

Acrydur TC04 Colour.

Basecoat

Acrydur ME04 slurry.

Guidance for specification option:

Using 0.2–0.3 mm silica sand.

Manufacturer guidance

And scratchcoat.

Joints

Not required.

Epo-Flex™ VJ.

Guidance for specification option:

The spacing and type of joints should be determined prior to the resin floor system being installed.


  • Mix Epo-Flex VJ Part A (base) with Epo-Flex VJ Part B (hardener). These units are in pre-weighed containers.
  • Mix using a low speed mixer and paddle (300–400 rpm) for 2–3 minutes, until a uniform mixed product is obtained.
  • Apply the Epo-Flex VJ immediately to the prepared and cut joints with a knife to a consistent smooth finish.

System thickness

6 mm.

CompressiveStrength

To DIN 1164, 25 N/mm².

TensileStrength

To DIN 1164, 15 N/mm².

Bond strength

>1.5 Mpa.

Water permeability

Impermeable.

Slip resistance

To BS 7976-2:2002 + A1:2013, >36 wet/ dry.

Application temperature

5–30ºC.
