Resin Flooring System Elladur™ Deco Flake SF

Verified by manufacturer 1 month ago

Sherwin-Williams Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

A 0.5 mm multi-component polyaspartic/ polyurea fast cure floor system.

Jump to:
+44 (0)1204 521771 Website

Application

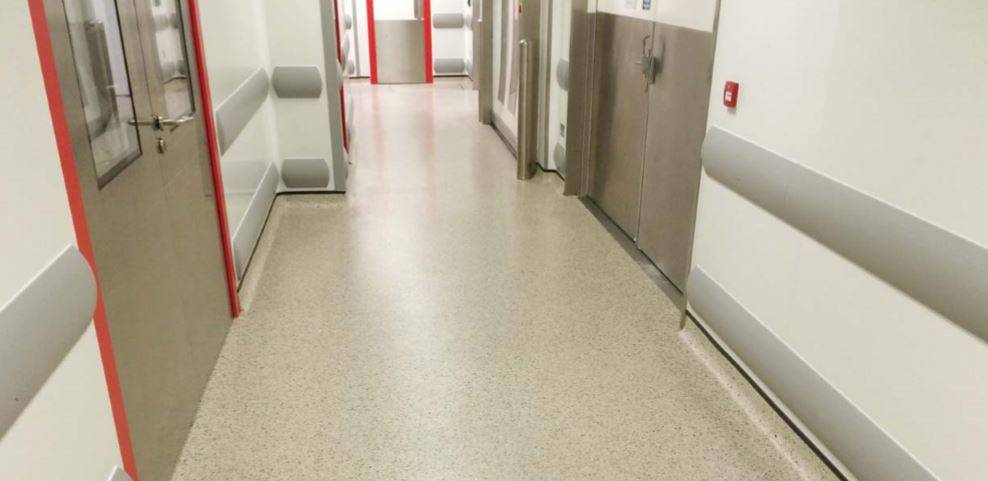

A high build UV stable floor coating system suitable for use in:

  • Medical, commercial and light industrial.
  • Decorative floor areas.
  • Domestic areas.
  • Retail spaces.

Description

A multi-component polyaspartic/ polyurea fast cure floor system which utilizes coloured flakes applied to the 0.5 mm base coat to provide a very heavy-duty decorative flooring finish. SF approved as IMO high performance flooring.


Features and benefits:

  • Decorative and functional surfaces.
  • Fast curing at low temperature.
  • High build.
  • Solvent-free.
  • UV stable.
  • Very low odour.
  • Tough but flexible.
  • Can be applied onto a wide range of substrates.

General information

Color

Other

Consult manufacturer for options.

Finish

Matt

Gloss

Smooth

Material

Polyaspartic

Polyaspartic resin with PVC flakes.

Resin

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/10 Resin flooring

M12/110 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.

Primer

Resuprime ST.

Resuseal WB Clear.

Resuprime MVT.

For use if the concrete substrate moisture levels are above 75% equilibrium relative humidity (ERH) or no damp proof membrane is present.

Resin coating primers.

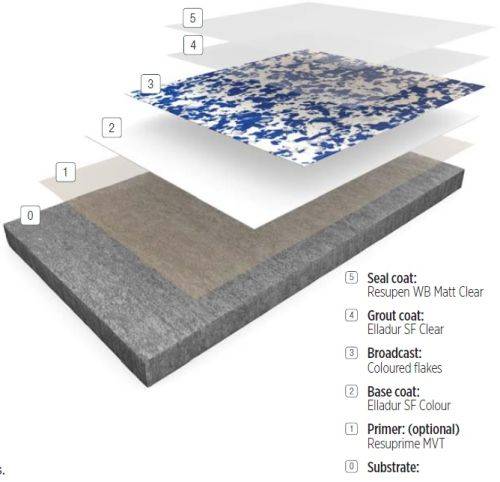

Resin flooring

Elladur SF Colour.

Base coat.

Coloured flakes.

Broadcast.

Elladur SF Clear.

Grout coat.

Resupen WB Matt Clear.

Seal coat.

Resin floor coatings.

High-build floor coatings.

Multilayer flooring.

Reaction to fire

To BS EN 13501-1, Bfl-s1.

Curing time

12—16 hours.

Light traffic.

48—72 hours.

Designed traffic.

≤7 days.

Full cure traffic.

Hardness

Shore D.

To BS ISO 7619-1, 83.

After 24 hours.

Abrasion resistance

To BS EN 13892-4, AR 1.

CompressiveStrength

To BS EN ISO 604, 17.2 MPa.

Tensile strength (to EN ISO 527)

To BS EN ISO 527-2, 10.4 MPa.

Flexural strength

To BS EN ISO 178+A1, 7.9 N/mm².

Bond strength

To BS EN 13892-8, >3 N/mm².

Substrate failure.

Temperature resistance

Tolerant of temperatures up to:

70°C.

Chemical resistance

Good.

UV stabilization

Yes.

Environmental information

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Literature

Resin flooring Elladur Deco Flake SF system

Resin flooring Elladur Deco Flake SF system

A guide to Sherwin-Williams Industrial Resin Flooring

A guide to Sherwin-Williams Industrial Resin Flooring

Colour chart - Resuflake floor systems

Colour chart - Resuflake floor systems
