Resin Flooring System Acrydur™ Topfloor SL

Verified by manufacturer 6 months ago

Sherwin-Williams

Methyl methacrylate (MMA) self levelling floor system.

Jump to:
+44 (0)1204 521771 Website

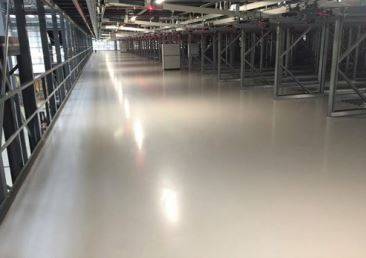

Application

For use in:

  • Dry production areas.
  • Handling areas.
  • Aisleways.
  • Hangers.
  • Workshops.
  • Warehouses.

Description

Acrydur Topfloor SL is a 3 mm thick, fast curing MMA resin flooring system for heavy duty industrial applications.. The finish features a self-levelling base coat with a coloured top coat for a durable hygienic finish suitable for all areas of industry.


Features and benefits:

  • Fast curing.
  • Non-yellowing coloured finish.
  • High chemical resistance.
  • Resistant to hot water.
  • Hard-wearing.
  • Non-dusting.
  • Curing time of 1–2 hours (light traffic); 3–4 hours (designed traffic).
  • UV stable.
  • FerFa class 4–5.

General information

Color

Grey

Beige

Blue

Cream

Green

Show more

Finish

Smooth

Material

Methyl methacrylate

Resin

Quartz

Aggregate

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

3 mm

Warranty description

Other

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Substrate

-

Testing

Moisture content to BS 8204.

Preparation

Preparation of existing substrates.

Guidance for specification option:

Substrates must be clean, sound, dry and free of surface laitance with a minimum strength of 25 N/mm². Mechanically prepare substrate to provide a surface texture that will function as a key for the resin. Remove all dust and debris. Repair significant mechanical damage, pitting and cracks.

Primer

Acrydur PR01.

Acrydur PR02.

Guidance for specification option:

With optional broadcast of 0.4–0.8 mm silica sand at 300 gr/m².

Movement joints

-

Type

Not required.

Epo-Flex™ VJ.

Guidance for specification option:

The spacing and type of joints should be determined prior to the resin floor system being installed.


  • Mix Epo-Flex VJ Part A (base) with Epo-Flex VJ Part B (hardener). These units are in pre-weighed containers.
  • Mix using a low speed mixer and paddle (300–400 rpm) for 2–3 minutes, until a uniform mixed product is obtained.
  • Apply the Epo-Flex VJ immediately to the prepared and cut joints with a knife to a consistent smooth finish.

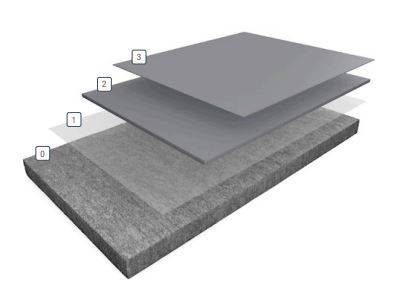

Top coat

Acrydur TC02.

Basecoat

Acrydur BC02 slurry.

Guidance for specification option:

Using 0.2–0.3 mm silica sand.

System thickness

3 mm.

CompressiveStrength

To DIN 1164,45 N/mm².

TensileStrength

To DIN 1164, 25 N/mm².

Bond strength

>1.5 Mpa.

Water permeability

Impermeable.

Application temperature

5–30ºC.
