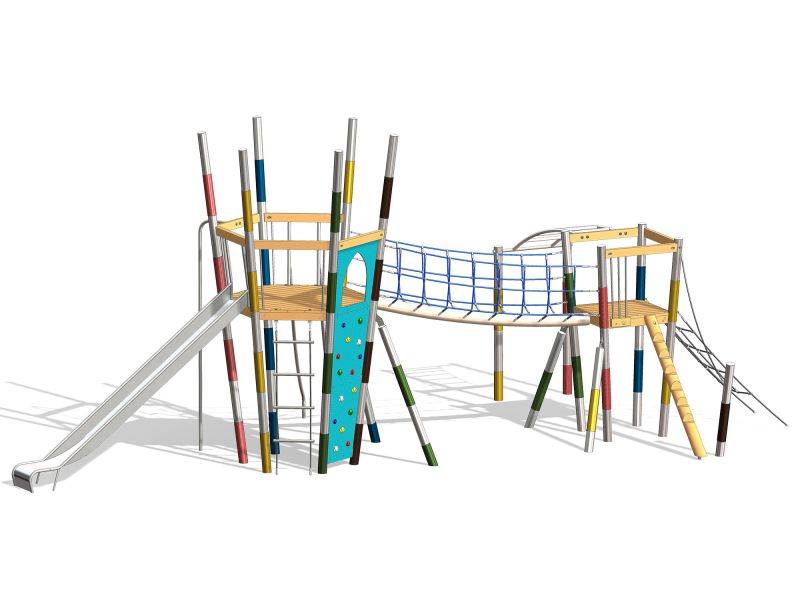

Mikado Beeskow - Children's Multiplay Climbing Frame

Verified by manufacturer 2 months ago

Redlynch Leisure Installations Ltd Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • TUV - Safety and Quality Report

    Certificate type

Children's multiplay frame based on a Mikado tower design.

Jump to:
+44 (0)1249 444537 Website

Application

Children's climbing frame with multiple play functions.

Suitable for users 5–14 years old.

Description

Children's multiplay frame based on a Mikado tower design.


Features and benefits:

  • Modular multiplay sections connected with 'jungle' bridge.
  • Designed for public outdoor use.
  • Colourful, striped poles as standard.
  • Wide range of colours and colours scheme available, see Colours for details.
  • Suitable for users 5–14 years old.

General information

Color

Brown

Silver

Other

Red

Blue

Show more

Finish

Shot blasted

Material

Timber

Guidance for specification option:

Robinia.

Stainless steel

Shape

Other

Length

9810 mm

Width

4550 mm

Height

3890 mm

Warranty description

Lifetime

Uniclass

Pr_40_30_61_18 Combined play structuresPrimary

CAWS

Q52/340 Combined play structure

Q52/330 Climbing frame

Specification data - Combined play structures

Standard

To EN 1176.

Age range

5–14.

Highest platform height

2 m.

Components

Hexagon stage, 1.8 m diameter, with six radially outwardly inclined posts.
Climbing wall with step-through frame with climbing grips.
Rope ladder with stainless steel bars.
Spiel-Bau slide, box-shaped.
Climbing pole.
Pair of sliding poles.
Jungle bridge, 3 m long.
Four pressure support posts.
Square platform 900 x 900 mm, with four radially outwardly inclined posts.
Frame to layaway with two posts.
Inclined climbing net
Chicken ladder with one safety rope and one post made of stainless steel.
Several balustrades and railings.

Guidance for specification option:

See Materials and Finish as delivered - Finish type for related details.

Consult manufacturer for further information as required.

Materials

Stainless steel posts/ wood (Robinia).

Guidance for specification option:

  • Climbing wall: HPL; climbing grips made of synthetic resin.
  • Rope ladder made of Hercules rope with stainless steel bars.
  • Spiel-Bau slide made of stainless steel.
  • Climbing pole made of stainless steel.
  • Pressure support posts made of stainless steel tube.
  • Frame made of stainless steel to layaway with posts made of stainless steel.
  • Inclined climbing net made of Hercules rope.
  • Chicken ladder/ safety rope made of Hercules rope and post made of stainless steel.

Further detail:

  • All support posts are 101.6 mm diameter.
  • Visible ends of the posts are welded conclusively to a stainless steel cap. All stainless steel surfaces are radiated with glass marbles according to environmental protection rules.
  • All wooden parts made of Robinia, planed and chamfered. All wooden parts are untreated.
  • Connection between platform/railing and support posts through stainless steel press-in threaded sleeves.
  • Platform fixed by use of concentrical incorporated stainless steel brackets.
  • Connection point net/rope with support posts through specifically formed stainless steel fork and tensible stainless steel chain.
  • Nets made of Hercules rope. All connecting parts made of stainless steel or galvanized. Use of self-locking nuts only.



Consult manufacturer for further details, including for other components.

Finish as delivered

-

Finish type

Hexagon stage and square platform: segmentally lacquered in Mikado-design.

Guidance for specification option:

Consult manufacturer for details of other components.

Film thickness (minimum)

Manufacturer's standard.

Colours

Guidance for specification option:

Colour schemes and individual component/ material options are available. Pole stripes are included as standard.

Consult manufacturer for further details and insert requirements.

Plan Size

9.81 x 4.55 m.
Required area (overall): 13.3 x 7.7 m.

Overall height

3.89 m.

Post foundations

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Weight

Manufacturer's standard.

Guidance for specification option:

Heaviest component: 164 kg.

Technical characteristics, other

Falling space area: 70 m².
Maximum free fall height: 3 m.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

All parts of this product can be recycled
