LPS1175 SR1 High Security Roller Shutter - Roller Shutter

Verified by manufacturer 3 months ago

SR1

UK Roller Shutters Ltd Variant:

High security roller shutter rated to LPS1175 SR1.

Jump to:
+44 (0)1384 221743 Website

Application

For use where high security is a priority, including high security commercial sites and shopfront applications.

Description

High security steel roller shutters that come with a distinct security rating. Tested to LPS1175 (7.0) and rated to SR1, SR2, SR3 and SR4 dependent on required security.


Features and benefits:

  • SR1 model is perforated to allow visibility and airflow. SR2, SR3 and SR4 are not perforated.
  • Internal face-fix or internal reveal-fix installation only.
  • CE marked to harmonized product standard BS EN 13241-1:2003.
  • Incorporates a bullet locking system situated 1 m from ground level, fixed to each guide channel.
  • Lock isolator kits available to prohibit operation if the shutter while in lock condition.
  • Electric operation - single-phase or 3-phase motor depending on usage.


Rating protection:

  • SR1: Opportunist attack by bodily force using minimal tools (e.g. screwdriver, knife, pliers, etc) for 1 minute.
  • SR2: More determined opportunist attack with tools of a higher mechanical advantage (e.g. SR1 tools plus bolt cutters, claw hammer, drill, etc) For 3 minutes.
  • SR3: Deliberate forced entry of protected premises using bodily force and a selection of attack options (e.g. SR2 tools plus short axe, chisels, crowbar, gas torch, etc) for 5 minutes.
  • SR4: Experience attempts at forced entry with higher tool levels (e.g. SR3 tools plus felling axe, sledgehammer, steel wedges, disc grinder, jigsaw, etc) for 10 minutes.

General information

Color

Grey

Guidance for specification option:

Self-colour

Other

Guidance for specification option:

Any RAL or BS colour. Insert requirements

Finish

Galvanized

Plastisol

Powder-coated

Guidance for specification option:

Polyester powder-coated.

Material

Steel

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Standard

To BS EN 13241.

Opening sizes

-

Manufacturer guidance

Made to measure, consult manufacturer and insert requirements.

Format

Internal.

Arrangement

Vertical.

Performance

-

Resistance to wind load

Class 2.

Air permeability

27%.

Shutter curtain.

-

Lath material

Galvanized steel.

Profile

Curved.

Guidance for specification option:

Single skin 76 mm (3") curved steel.

Finish and colour

Galvanized, self-colour.

Polyester powder coating, BS colour.

Guidance for specification option:

Insert requirements

Polyester powder coating, RAL colour.

Guidance for specification option:

Insert requirements

Frame and guides

-

Material

Steel.

Finish

Galvanized.

Polyester powder coated.

Plastisol.

Colour

BS.

Guidance for specification option:

Insert requirements

RAL.

Guidance for specification option:

Insert requirements

Self-colour.

Operation

-

Mode

Automatic, 3-phase outboard electric motor.

Automatic, single-phase tubular motor.

Guidance for specification option:

For lower use and smaller shutters.

Manufacturer guidance

Manual override.

Control

Push button.

Guidance for specification option:

High security wired or wireless keypad for installations on the 'attack' face of an opening (only approved switches may be used on the external face of an opening). Manual override by removable handle (for tubular motors), haul chain (for externally mounted motors).

Rocker switch.

Key switch.

Remote control.

Smart phone.

Automated.

Other.

Guidance for specification option:

UK Roller Shutters Ltd can access anyone's systems for operation.

Curtain type

Perforated.

Battery back-up

Not required.

Required.

Locking system

Bullet locking system.

Guidance for specification option:

Incorporated and situated 1 m from ground level.

Visible surfaces

76 mm.

Manufacturer guidance

Curtain slat.

Height

85 mm.

Manufacturer guidance

Curtain slat.

Weight

16.5 kg/m².

Manufacturer guidance

Curtain slat.

Width (maximum)

7000 mm.

Manufacturer guidance

Curtain slat.

Surface

18 m² (tubular motor); 50 m² (externally mounted motor).

Manufacturer guidance

Curtain slat maximum surface.

Dimensions

2500 x 305 mm.

4000 x 355 mm.

5500 x 400 mm.

Manufacturer guidance

Enclosure size: shutter height x box size.

Based on standard tube motor operation.

Guide channel depth

44 mm.

Guidance for specification option:

Face: 65 mm.

Bottom slat

'T' shaped galvanized steel section.

WallThickness

1.2 mm.

Manufacturer guidance

Lath wall thickness.

Sustainability data

Country of product manufacture

United Kingdom

Literature

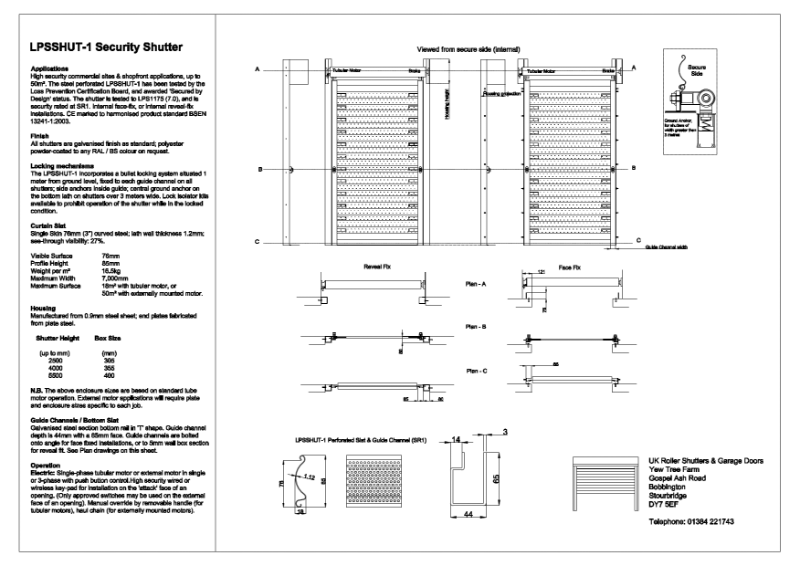

LPSSHUT-1 Drawings Datasheet

LPSSHUT-1 Drawings Datasheet

LPSSHUT-1 Brochure

LPSSHUT-1 Brochure

LPS1175 SR1 Heavy Duty Steel Shutter

LPS1175 SR1 Heavy Duty Steel Shutter

LPS1175 SR2 Heavy Duty Steel Shutter

LPS1175 SR2 Heavy Duty Steel Shutter

LPS1175 SR3 Heavy Duty Steel Shutter

LPS1175 SR3 Heavy Duty Steel Shutter

LPS1175 SR4 Heavy Duty Steel Shutter

LPS1175 SR4 Heavy Duty Steel Shutter
