Application

Suitable for non-fire door applications.

Description

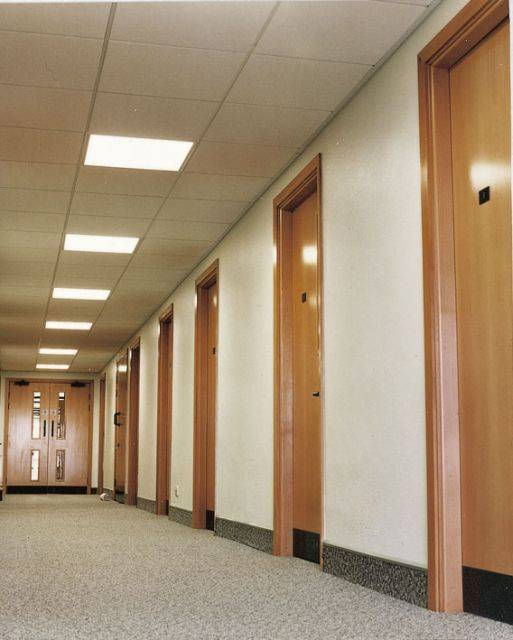

Light duty doorsets..


Features and benefits:

  • Available with FSC/ PEFC certification - consult manufacturer for details.
  • Consist of a flaxboard core of 250 kg/m³ and are available in 35 mm and 40 mm thickness with 65 mm white wood framing all round.
  • Available with FSC/ PEFC certification - consult manufacturer for details.
  • Two types of frame construction are available:
  • Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
  • Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
  • Frames can be softwood or hardwood to suit project requirements.
  • Architrave: Three profile types are provided as standard, other profile types and sizes can be supplied to requirements.
  • Royd and Tucker Hi-Load H105 lift off hinges with 25 year guarantee.
  • Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Shape

Rectangle

Finish

Primed

Guidance for specification option:

Factory primed.

Laminated

Veneered

Material

Wood

Warranty description

25 year

Guidance for specification option:

Royd and Tucker Hi-Load H105 lift off hinges with 25 year guarantee.

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Third party accreditation

FSC; PEFC certification.

Guidance for specification option:

Consult manufacturer for details.

Configuration

Single leaf, single action.

Format

Single leaf, single action.

Frame

-

Material

Hardwood.

Softwood.

Finish

Factory primed.

Laminated.

Veneered.

Door leaf

-

Thickness

35 mm.

40 mm.

Core

Flaxboard.

Facings

Laminated.

Medium density fibreboard (MDF).

Plywood.

Veneered.

Lippings

Hardwood.

Finish

Factory primed.

Laminated.

Veneered.

Door accessories

Not required.

Kick plates.

Guidance for specification option:

Consult manufacturer for details.

Mouldings.

Guidance for specification option:

Consult manufacturer for details.

Overpanels.

Guidance for specification option:

Consult manufacturer for details.

Push plates.

Guidance for specification option:

Consult manufacturer for details.

Factory mortising for locks.

Guidance for specification option:

Consult manufacturer for details.

Slots for letter plates.

Guidance for specification option:

Consult manufacturer for details.

Water bar rebates.

Guidance for specification option:

Consult manufacturer for details.

Planted stops

-

Wood species

Hardwood.

Softwood.

Architraves

Type 1.

Type 2.

Type 3.

Type

Solid rebated frame with integral stop.

Guidance for specification option:

Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.

Planed square edge (PSE) section with loose door stops.

Guidance for specification option:

32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.

Manufacturer guidance

Door frame type.
