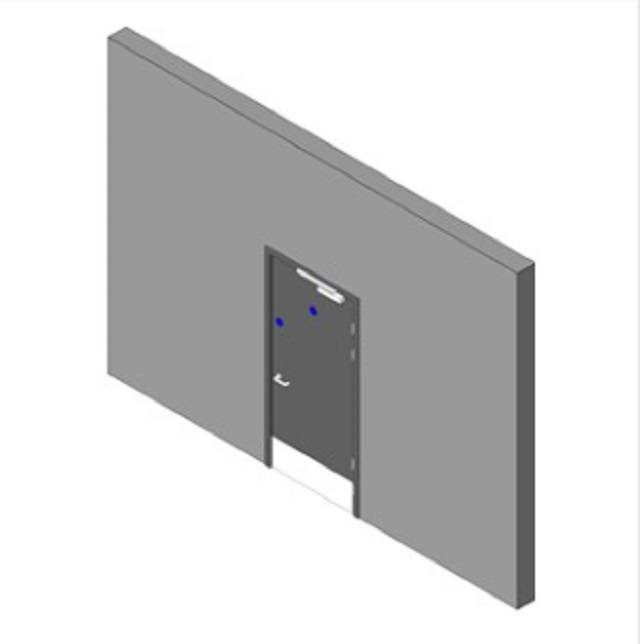

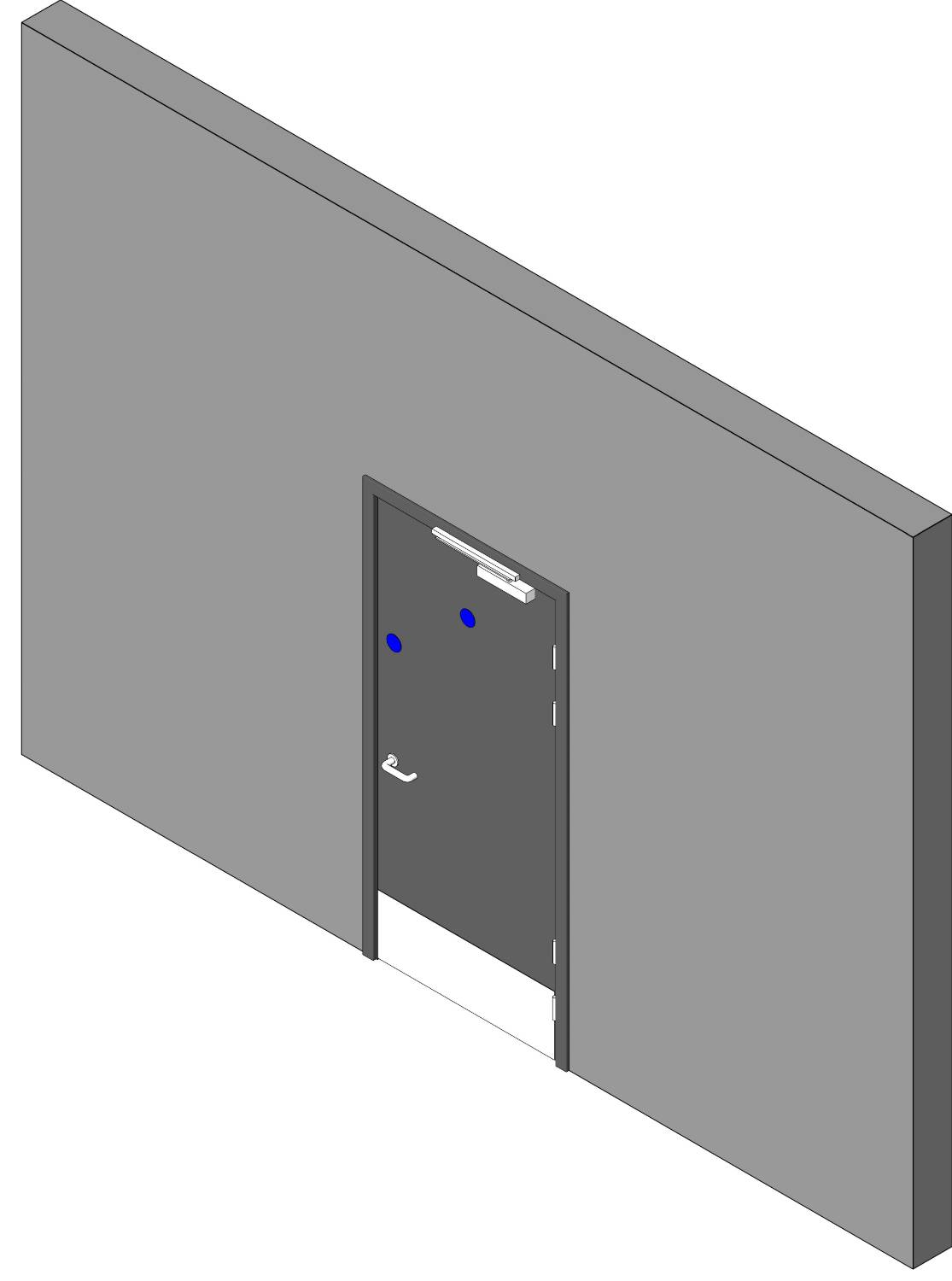

Education Range: Store Room/ Plant Room

Verified by manufacturer 3 months ago

Bridgman IBC Ltd Third party certifications:
  • BM Trada

    BM Trada

    Certificate type

Store room/ plant room door.

Jump to:
+44 (0)1429 221111 Website

Application

A doorset suitable for classrooms and education facilities, suitable for plant and store rooms.

Description

Store room/ plant room door.


Features and benefits:

  • The severe duty flax core doors (framed) are available in 44 mm and 54 mm thickness.
  • Available with FSC/ PEFC certification - consult manufacturer for details.
  • Two types of frame construction are available:
  • Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
  • Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
  • Frames can be softwood or hardwood to suit project requirements.
  • Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements.
  • Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Finish

Primed

Lacquered

Laminated

Manufacturer guidance

Also available with a Hygienilac finish.

Material

Wood

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Warranty description

25 year

Guidance for specification option:

On hinges.

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Configuration

Single leaf, single action.

Doorset size

Guidance for specification option:

Insert requirements, maximum 1000 x 2100 mm.

Frame

-

Material

Hardwood.

Softwood.

Frame accessories

Not required.

Cookes Brothers butt hinges.

Royd and Tucker Hi-Load H105 lift off hinges.

Union 603 butt hinges.

Door leaf

-

Thickness

44 mm.

54 mm.

Facings

Acrovyn.

Laminated.

Medium density fibreboard (MDF).

Plywood.

Veneered.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Door accessories

Not required.

Kick plates.

Guidance for specification option:

Consult manufacturer for details.

Mouldings.

Guidance for specification option:

Consult manufacturer for details.

Overpanels.

Guidance for specification option:

Consult manufacturer for details.Consult manufacturer for details.

Push plates.

Alarm wiring facilities.

Guidance for specification option:

Linked to existing alarm systems, consult manufacturer for details.

Emergency exit facilities.

Guidance for specification option:

Consult manufacturer for details.

Factory mortising for locks.

Guidance for specification option:

Consult manufacturer for details.

Fire resisting doors.

Guidance for specification option:

Consult manufacturer for details.

Planted stops

-

Wood species

Hardwood.

Softwood.

Lippings

Hardwood.

Architraves

Type 1.

Type 2.

Type 3.

Type

Solid rebated frame with integral stop.

Guidance for specification option:

Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.

Planed square edge (PSE) section with loose door stops.

Guidance for specification option:

32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.

Manufacturer guidance

Door frame type.

Third-party certification

FSC; PEFC certification.

Guidance for specification option:

Consult manufacturer for details.

Sustainability data

Material

Wood

BIM objects

Platform Compatible Version
Revit

Revit 2016

1

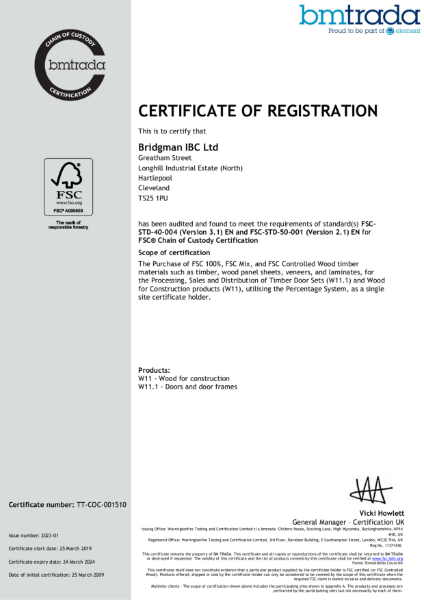

Third party certifications

BM Trada

BM Trada

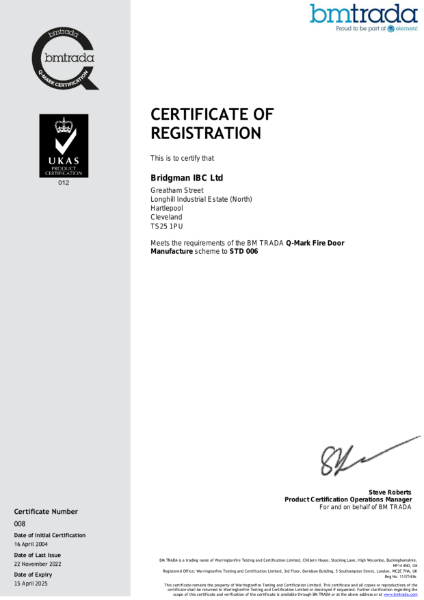

BM Trada Q Mark Fire

BM Trada

BM Trada

FSC

BM Trada

BM Trada

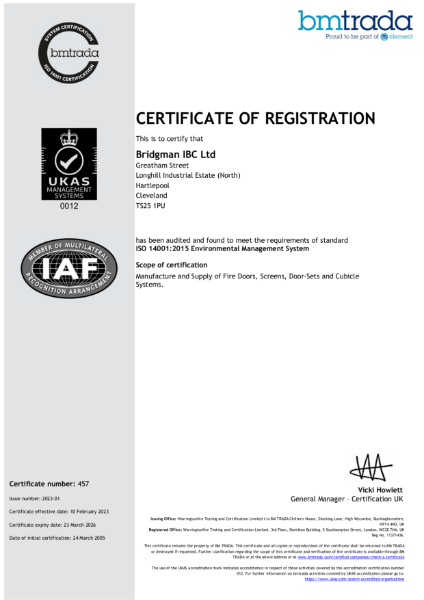

ISO 14001 EMS

BM Trada

BM Trada

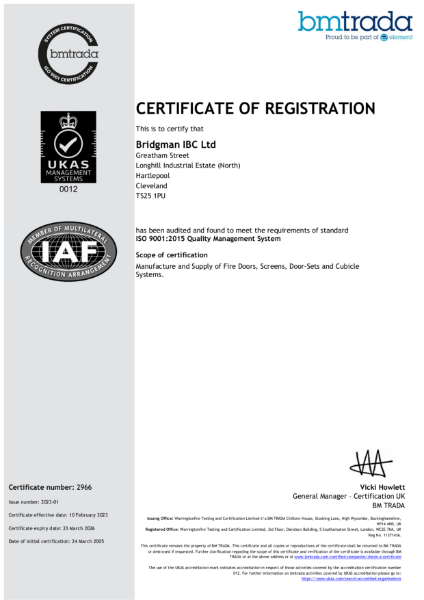

IS0 9001:2015 Quality Management System

BM Trada

BM Trada

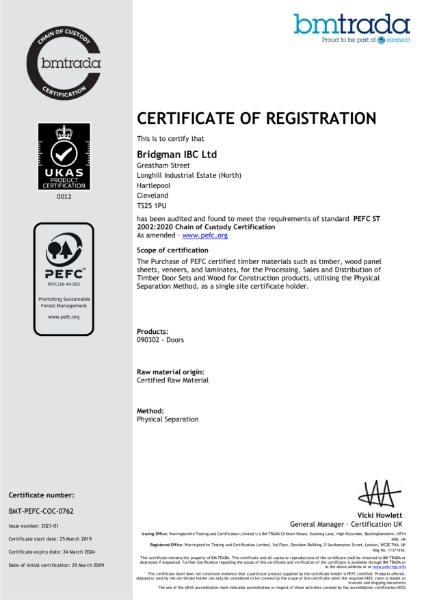

PEFC

Literature

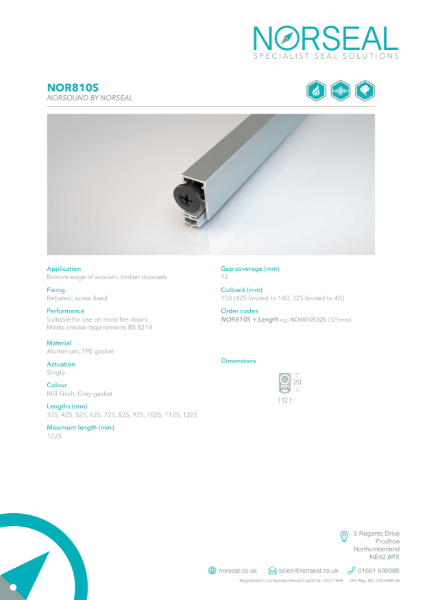

Bridgman 810s / Norseal Drop Down information

Bridgman 810s / Norseal Drop Down information

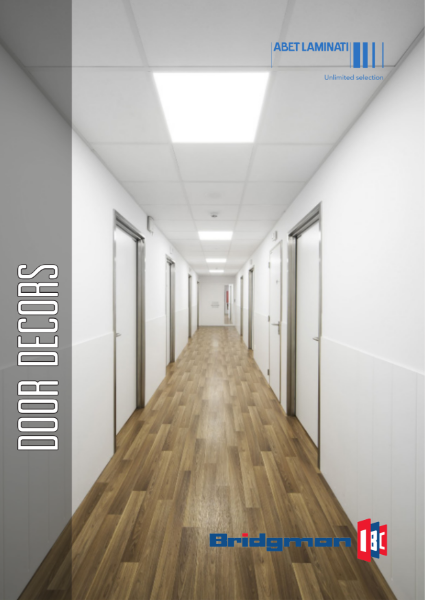

Bridgman Abet laminate

Bridgman Abet laminate

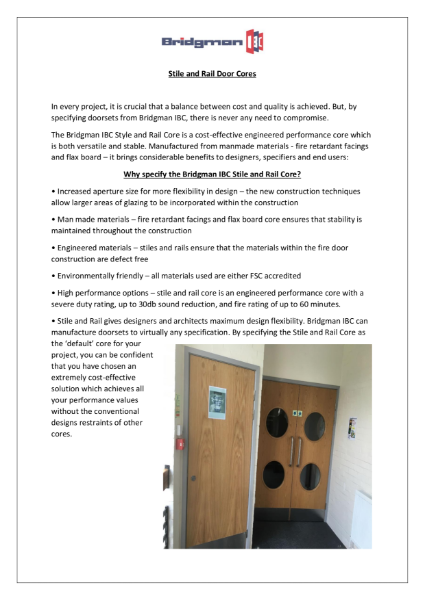

Bridgman Flax Cores

Bridgman Flax Cores

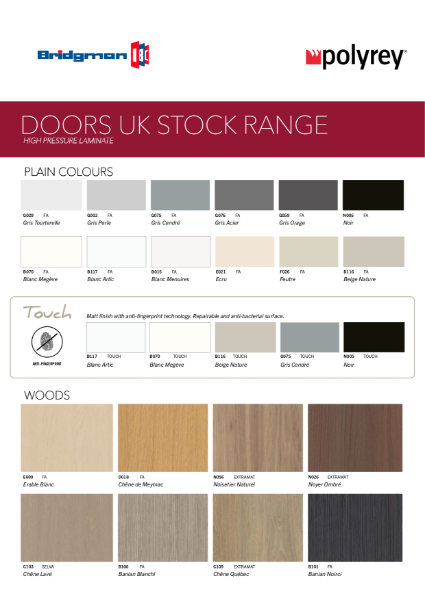

Bridgman Polyrey Door Collection Range

Bridgman Polyrey Door Collection Range

Bridgman General  Literature

Bridgman General Literature

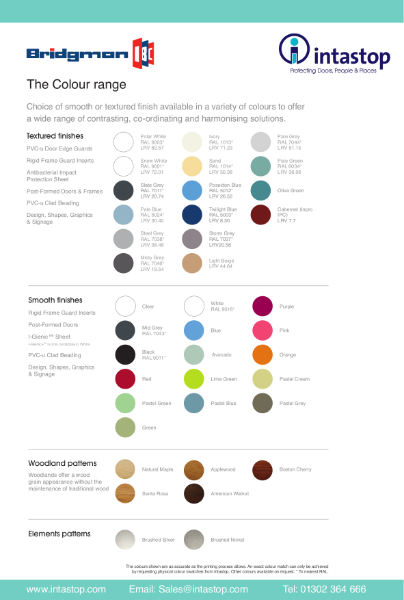

Bridgman PVC Offering

Bridgman PVC Offering

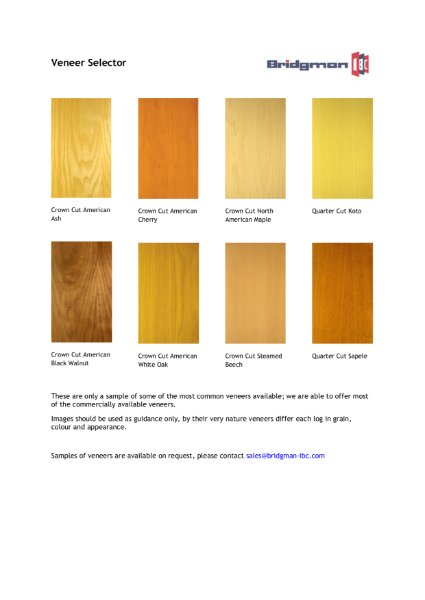

Bridgman Veneer Selector

Bridgman Veneer Selector

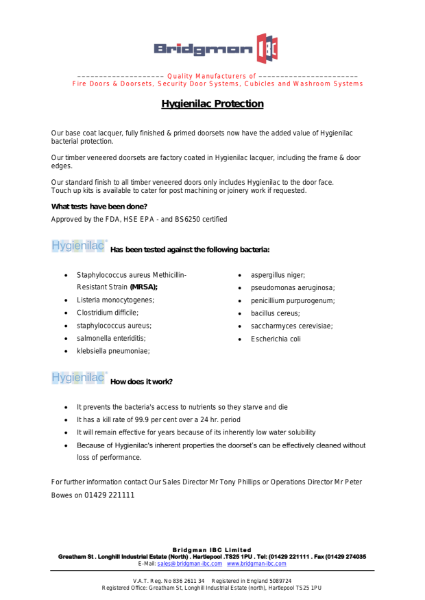

Hygienilac

Hygienilac

General  Bridgman Information

General Bridgman Information

Laminate - Formica After Care

Laminate - Formica After Care

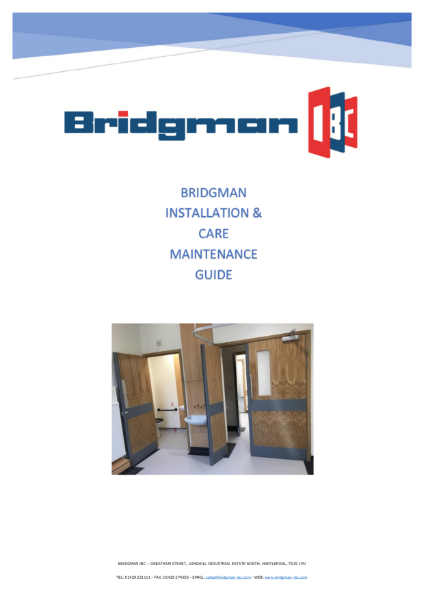

Installation Guidance

Installation Guidance

Case studies

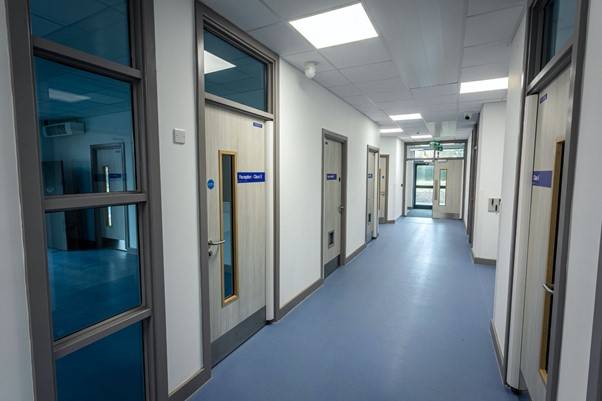

Various Case Studies from the Bridman web site
