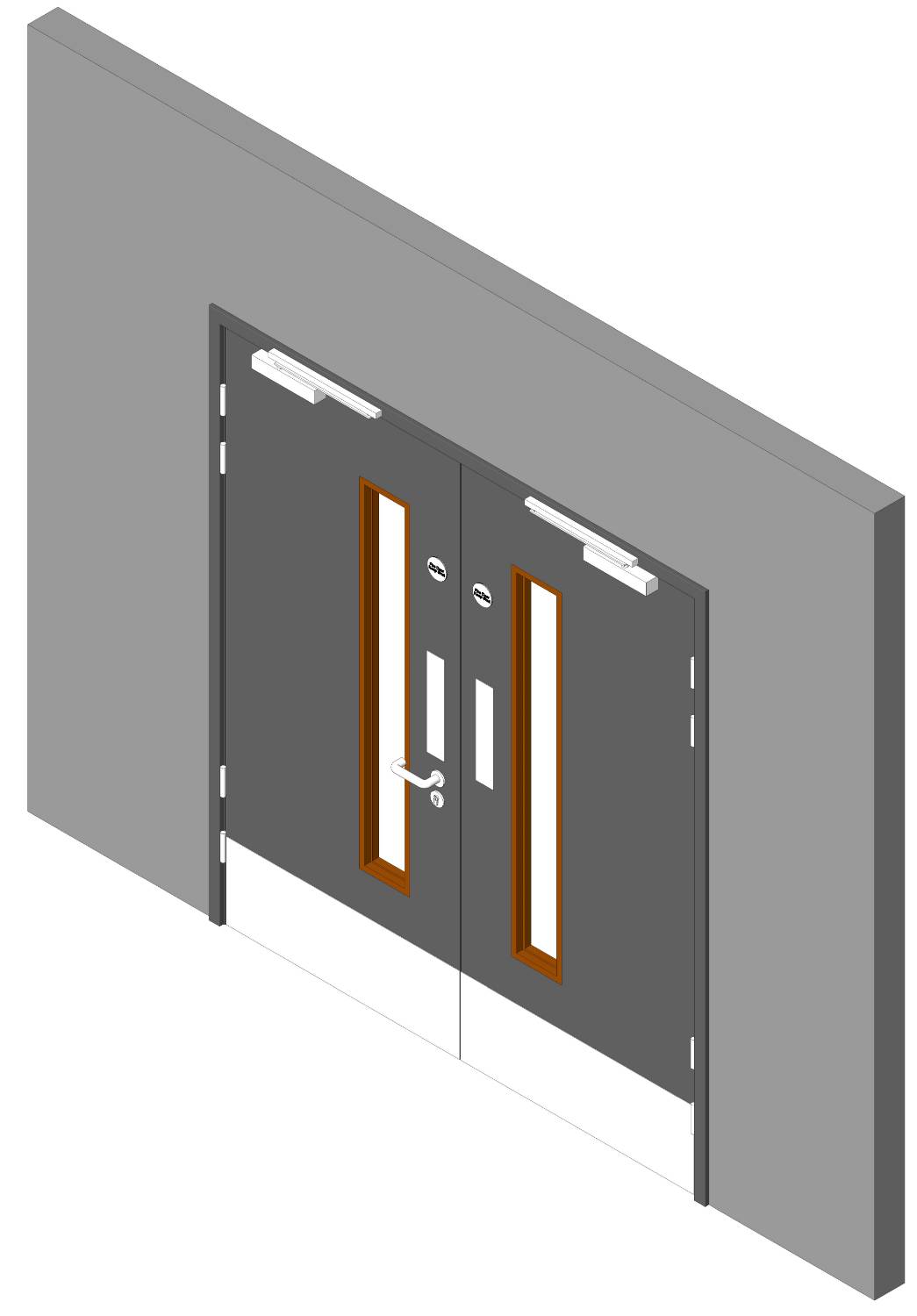

Education Range: Corridor Double Action

Verified by manufacturer 2 months ago

Bridgman IBC Ltd Third party certifications:
  • BM Trada

    BM Trada

    Certificate type

A severe duty, double corridor doorset with two vision panels per leaf.

Jump to:
+44 (0)1429 221111 Website

Application

A doorset suitable for classrooms and education rooms.

Description

A severe duty, double corridor doorset with two vision panels per leaf.


Features and benefits:

  • The severe duty flax core doors (framed) are available in 44 mm and 54 mm thickness.
  • Available with FSC/ PEFC certification - consult manufacturer for details.
  • Two types of frame construction are available:
  • Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
  • Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
  • Frames can be softwood or hardwood to suit project requirements.
  • Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements.
  • Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Finish

Primed

Guidance for specification option:

Factory primed.

Lacquered

Laminated

Manufacturer guidance

Also available with Hygienilac finish.

Material

Wood

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

On hinges.

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Third party accreditation

FSC; PEFC certification.

Guidance for specification option:

Consult manufacturer for details.

Configuration

Double leaf, double action.

Doorset size

1850 x 2110 mm.

Format

Double leaf, double action.

Frame

-

Material

Hardwood.

Softwood.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Frame accessories

Not required.

Cookes Brothers butt hinges.

Royd and Tucker Hi-Load H105 lift off hinges.

Union 603 butt hinges.

Door leaf

-

Thickness

44 mm.

54 mm.

Panel details

Door panel has two vision panels.

Species

Hardwood.

Softwood.

Lippings

Hardwood.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Door accessories

Not required.

Kick plates.

Guidance for specification option:

Consult manufacturer for details.

Mouldings.

Guidance for specification option:

Consult manufacturer for details.

Overpanels.

Guidance for specification option:

Consult manufacturer for details.

Push plates.

Guidance for specification option:

Consult manufacturer for details.

Alarm wiring facilities.

Guidance for specification option:

Consult manufacturer for details.

Emergency exit facilities.

Guidance for specification option:

Consult manufacturer for details.

Factory mortising for locks.

Guidance for specification option:

Linked to existing alarm systems, consult manufacturer for details.

Fire resisting doors.

Guidance for specification option:

Consult manufacturer for details.

Lippings

Hardwood.

Facings

Acrovyn.

Laminated.

Medium density fibreboard (MDF).

Plywood.

Veneered.

Type

Solid rebated frame with integral stop.

Guidance for specification option:

Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.

Planed square edge (PSE) section with loose door stops.

Guidance for specification option:

32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.

Sustainability data

Material

Wood

BIM objects

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

BM Trada

BM Trada

BM Trada Q Mark Fire

BM Trada

BM Trada

FSC

BM Trada

BM Trada

PEFC

BM Trada

BM Trada

ISO 14001 EMS

BM Trada

BM Trada

IS0 9001:2015 Quality Management System
