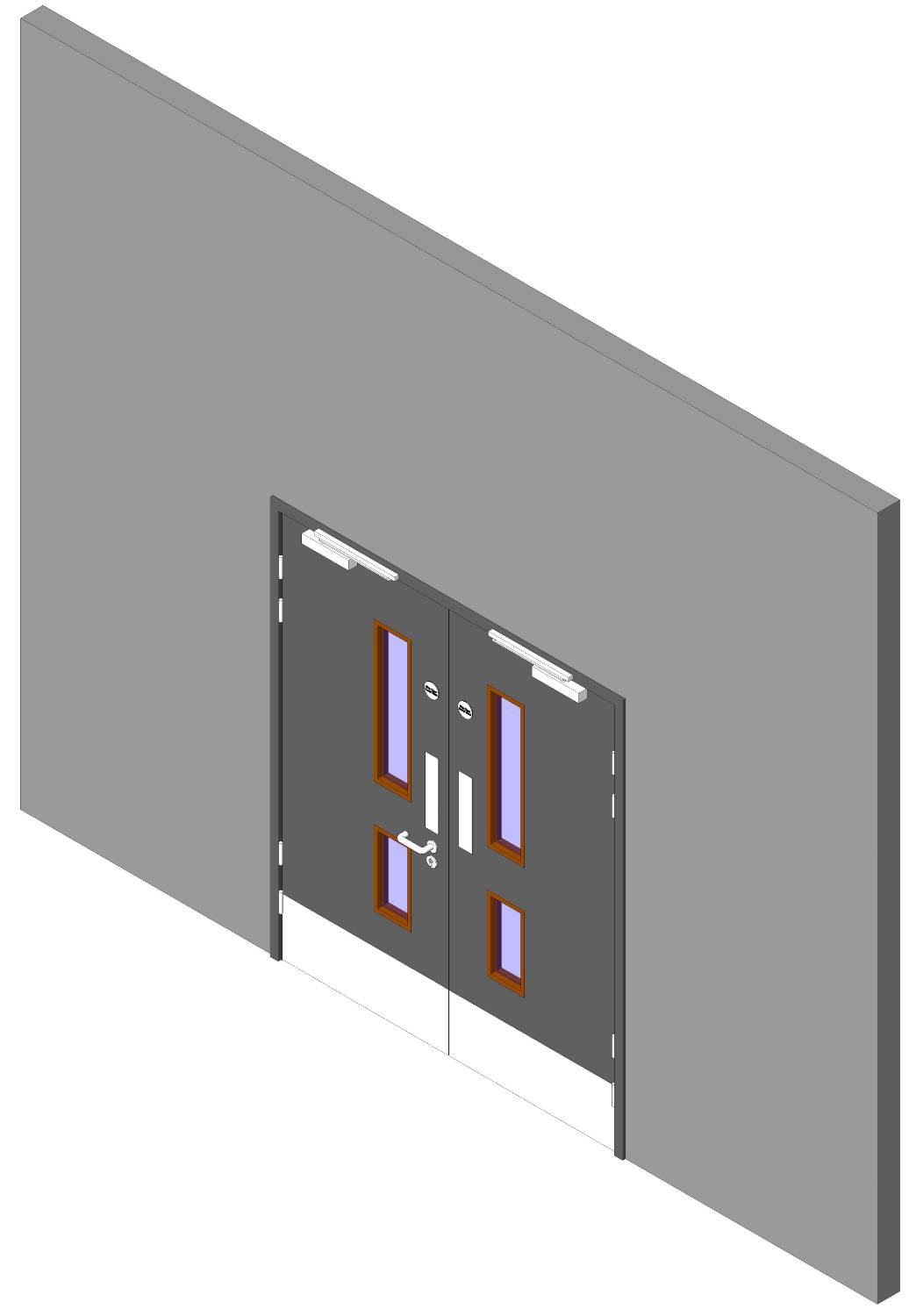

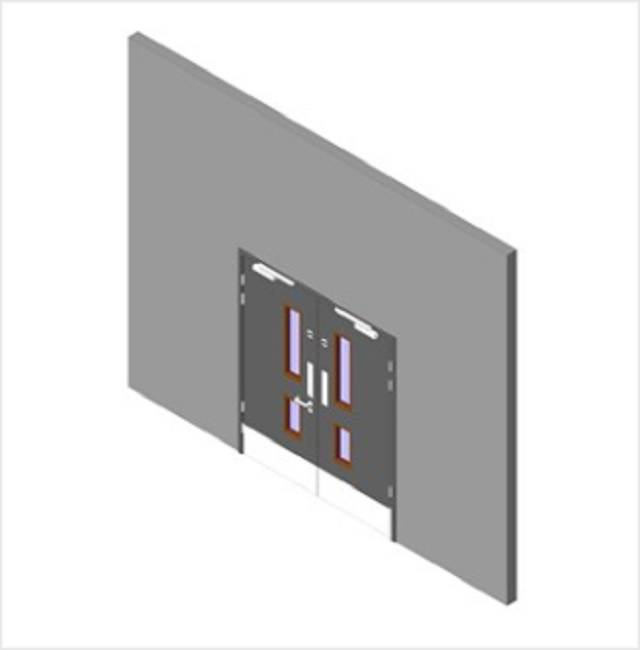

Store cupboard pair of doors.
A doorset for healthcare / hospital applications, suitable for store cupboards.
Store cupboard pair of doors.
Features and benefits:
Finish | Primed Guidance for specification option: Factory primed. Lacquered Laminated Manufacturer guidanceAlso available with a Hygienilac finish. |
Material | Wood |
Shape | Rectangle |
Warranty description | 25 year |
Uniclass | |
CAWS | L20/410 Wood doorsets L20/55 Doorsets |
Classification data | |
Third party accreditation | FSC; PEFC certification. Guidance for specification option: Consult manufacturer for details. |
Configuration | Double leaf, single action. |
Doorset size | 1850 x 2110 mm. |
Format | Double leaf, single action. |
Frame | |
Material | Hardwood. Softwood. |
Finish | Factory primed. Hygienilac. Lacquered. Laminated. |
Frame accessories | Not required. Cookes Brothers butt hinges. Royd and Tucker Hi-Load H105 lift off hinges. Union 603 butt hinges. |
Door leaf | |
Thickness | 44 mm. 54 mm. |
Panel details | Door panel has two vision panels. |
Facings | Acrovyn. Laminated. Medium density fibreboard (MDF). Plywood. Veneered. |
Lippings | Hardwood. |
Finish | Factory primed. Hygienilac. Lacquered. Laminated. |
Door accessories | Not required. Kick plates. Guidance for specification option: Consult manufacturer for details. Mouldings. Guidance for specification option: Consult manufacturer for details. Overpanels. Guidance for specification option: Consult manufacturer for details. Push plates. Guidance for specification option: Consult manufacturer for details. Alarm wiring facilities. Guidance for specification option: Linked to existing alarm systems, consult manufacturer for details. Emergency exit facilities. Guidance for specification option: Consult manufacturer for details. Factory mortising for locks. Guidance for specification option: Consult manufacturer for details. Fire resisting doors. Guidance for specification option: Consult manufacturer for details. |
Planted stops | |
Wood species | Hardwood. Softwood. |
Architraves | Type 1. Type 2. Type 3. |
Type | Solid rebated frame with integral stop. Guidance for specification option: Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm. Planed square edge (PSE) section with loose door stops. Guidance for specification option: 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Wood |
Platform | Compatible | Version |
---|---|---|
![]() | Revit 2016 | 1 |
