Education Range: Stairwell Doorset Double

Education Range: Stairwell Doorset Double

Verified by manufacturer 2 months ago

Bridgman IBC Ltd

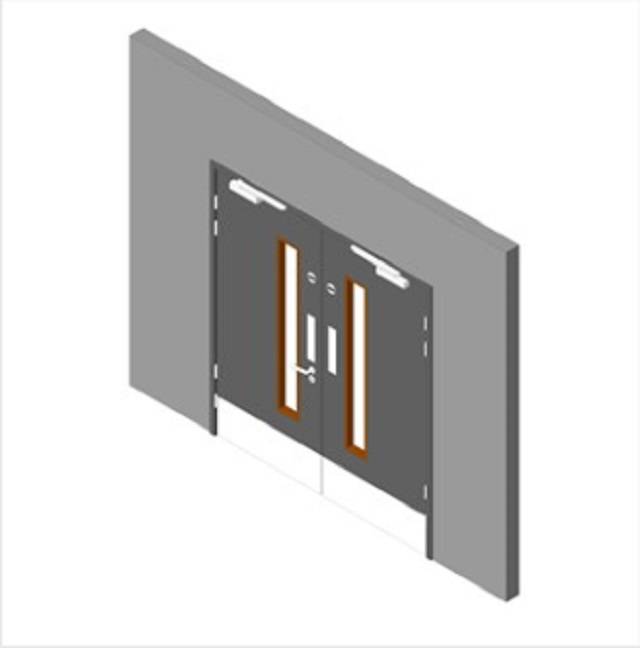

A severe duty, stairwell double doorset with one vision panel per door.

Jump to:
+44 (0)1429 221111 www.bridgman-ibc.com

Application

A double doorset suitable for classrooms and education facilities.

Description

A severe duty, stairwell double doorset with one vision panel per door.


Features and benefits:

  • The severe duty flax core doors (framed) are available in 44 mm and 54 mm thickness.
  • Available with FSC/ PEFC certification - consult manufacturer for details.
  • Two types of frame construction are available:
  • Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
  • Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
  • Frames can be softwood or hardwood to suit project requirements.
  • Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements.
  • Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Shape

Rectangle

Finish

Also available with Hygienilac finish.

Primed

Factory primed.

Lacquered

Laminated

Material

Wood

WarrantyDescription

25 year

Size

1850 x 2110 x 44 mm

1850 x 2110 x 54 mm

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Third party accreditation

FSC; PEFC certification.

Consult manufacturer for details.

Configuration

Double leaf, double action.

Doorset size

1850 x 2110 mm.

Format

Double leaf, single action.

Frame

-

Material

Hardwood.

Softwood.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Frame accessories

Not required.

Cookes Brothers butt hinges.

With 25 year guarantee.

Royd and Tucker Hi-Load H105 lift off hinges.

With 25 year guarantee.

Union 603 butt hinges.

With 25 year guarantee.

Door leaf

-

Thickness

44 mm.

54 mm.

Panel details

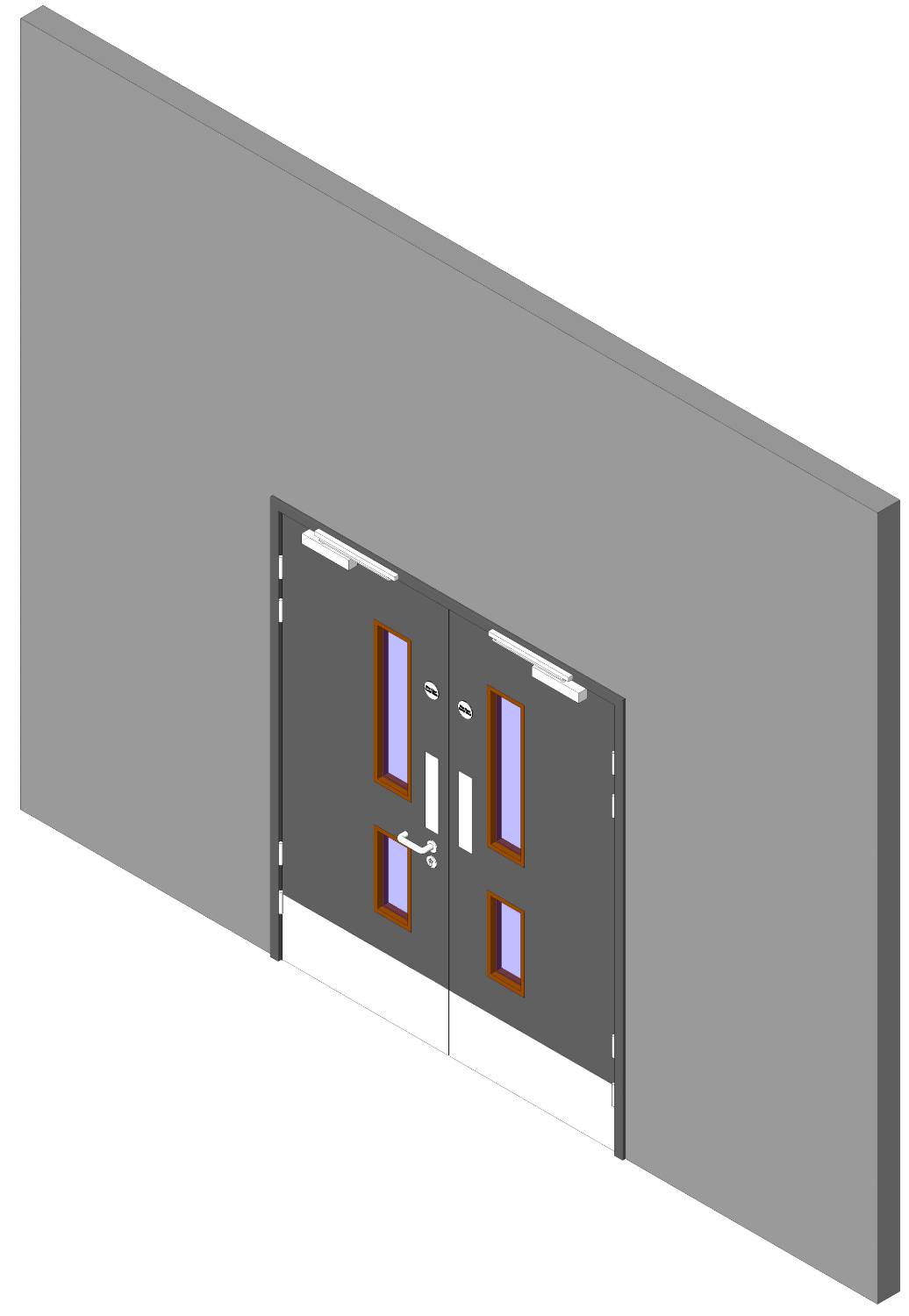

Door panel has two vision panels.

Facings

Acrovyn.

Laminated.

Medium density fibreboard (MDF).

Plywood.

Veneered.

Species

Hardwood.

Softwood.

Lippings

Hardwood.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Door accessories

Not required.

Kick plates.

Consult manufacturer for details.

Mouldings.

Consult manufacturer for details.

Overpanels.

Consult manufacturer for details.

Push plates.

Consult manufacturer for details.

Alarm wiring facilities.

Linked to existing alarm systems, consult manufacturer for details.

Emergency exit facilities.

Consult manufacturer for details.

Factory mortising for locks.

Consult manufacturer for details.

Fire resisting doors.

Consult manufacturer for details.

Lippings

Hardwood.

Architraves

Type 1.

Type 2.

Type 3.

Type

Solid rebated frame with integral stop.

Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.

Planed square edge (PSE) section with loose door stops.

32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library
