Heavy, Severe Duty Fire Rated Doorsets

Verified by manufacturer 3 months ago

Bridgman IBC Ltd

Fire rated doorsets, suitable for heavy duty requirements.

Jump to:
+44 (0)1429 221111 Website

Application

Suitable for heavy-duty requirements in FD30 and FD60 configurations.

Description

Fire rated doorsets, suitable for heavy duty requirements.


Features and benefits:

  • Suitable for heavy duty requirements in FD30 and FD60 configurations.
  • Available with FSC/ PEFC certification - consult manufacturer for details.
  • Doors are 30 minute/ 60 minute fire rated and consist of a flaxboard core 350 kg/m³ and 450 kg/m³, available in 44 mm and 54 mm thickness with 65 mm white wood framing all round (65 mm extra hardwood to the top of all FD60 doors).
  • Two types of frame construction are available:
  • Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
  • Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
  • Frames can be softwood or hardwood.
  • Architrave: Three profile types as standard, other profile types and sizes can be supplied.
  • Royd and Tucker Hi-Load H105 lift off hinges with 25 year guarantee.
  • Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Shape

Rectangle

Finish

Primed

Guidance for specification option:

Factory primed.

Lacquered

Laminated

Manufacturer guidance

Also available with a Hygienilac finish.

Material

Wood

Warranty description

25 year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Third party accreditation

FSC; PEFC certification.

Guidance for specification option:

Consult manufacturer for details.

Configuration

Single leaf, single action.

Format

Single leaf, single action.

Frame

-

Material

Hardwood.

Softwood.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Door leaf

-

Thickness

44 mm.

54 mm.

Core

Flax core.

Panel details

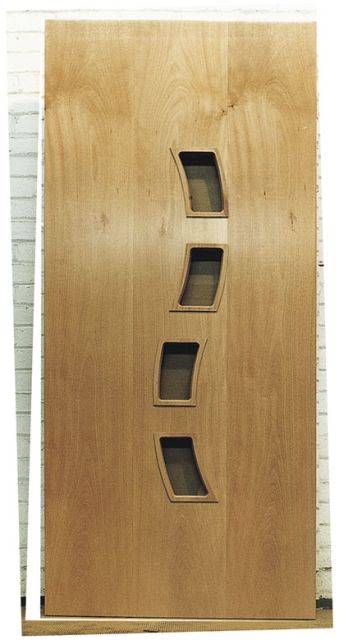

Door panel has four vision panels.

Facings

Acrovyn.

Laminated.

Medium density fibreboard (MDF).

Plywood.

Veneered.

Lippings

Hardwood.

Finish

Factory primed.

Hygienilac.

Lacquered.

Laminated.

Door accessories

Not required.

Kick plates.

Guidance for specification option:

Consult manufacturer for details.

Mouldings.

Guidance for specification option:

Consult manufacturer for details.

Overpanels.

Guidance for specification option:

Consult manufacturer for details.

Push plates.

Guidance for specification option:

Consult manufacturer for details.

Factory mortising for locks.

Guidance for specification option:

Consult manufacturer for details.

Slots for letter plates.

Guidance for specification option:

Consult manufacturer for details.

Water bar rebates.

Guidance for specification option:

Consult manufacturer for details.

Planted stops

-

Wood species

Hardwood.

Softwood.

Fire rating

FD30.

FD60.

Guidance for specification option:

65 mm extra hardwood to the top of all FD60 doors.

Architraves

Type 1.

Type 2.

Type 3.

Density

350 kg/m³.

450 kg/m³.

Type

Solid rebated frame with integral stop.

Guidance for specification option:

Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.

Planed square edge (PSE) section with loose door stops.

Guidance for specification option:

32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.

Manufacturer guidance

Door frame type.
