Healthcare Range: Ward Entrance

Name: Healthcare Range: Ward Entrance
Brand: Bridgman IBC Ltd
SKU: taeZAm3rFqaCbRvbGHNLqR

Verified by manufacturer 8 months ago

Bridgman IBC Ltd

Product certifications:

BM Trada
Certificate type
BM Trada
Certificate type
BM Trada
Certificate type
BM Trada
Certificate type
BM Trada
Certificate type

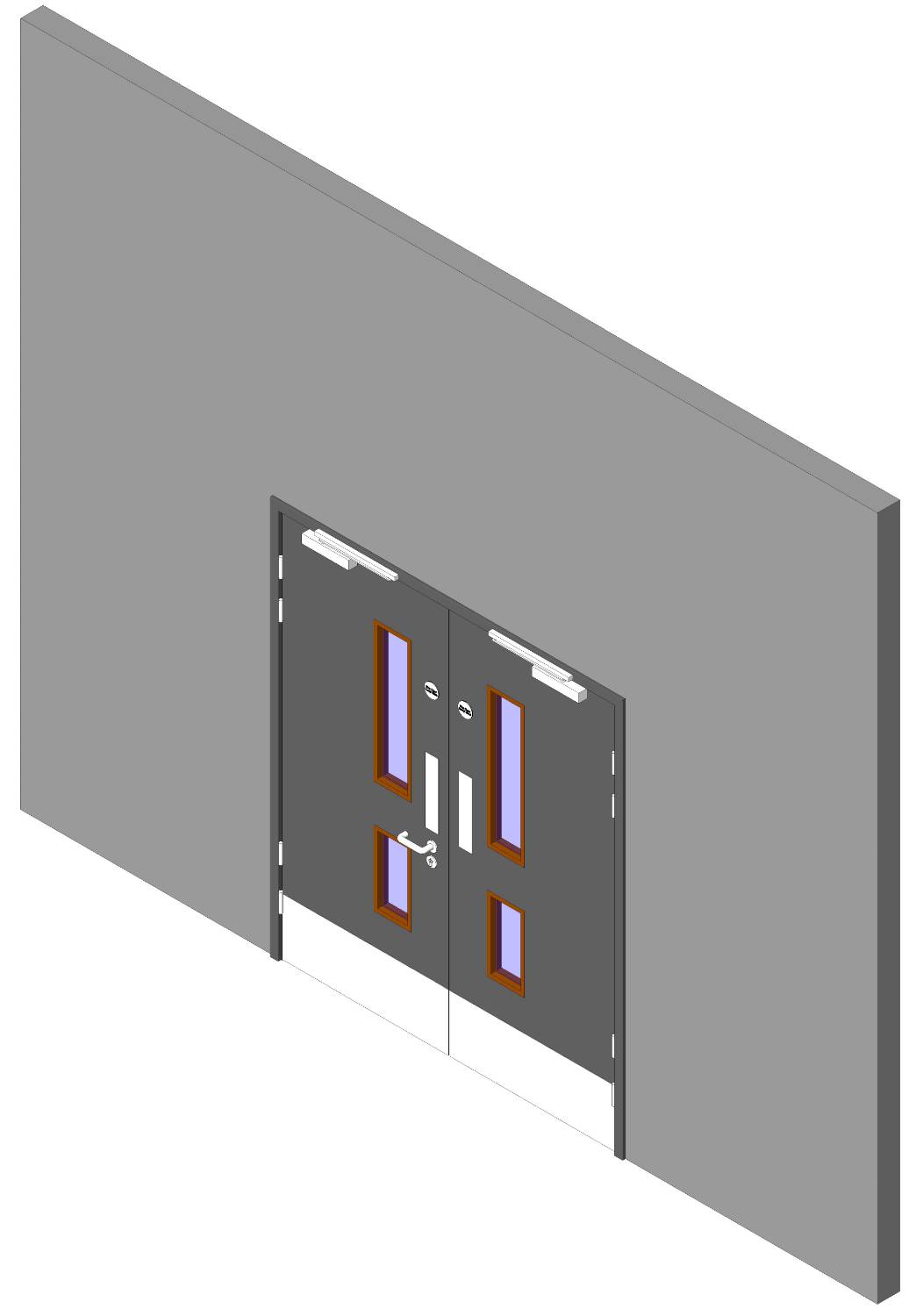

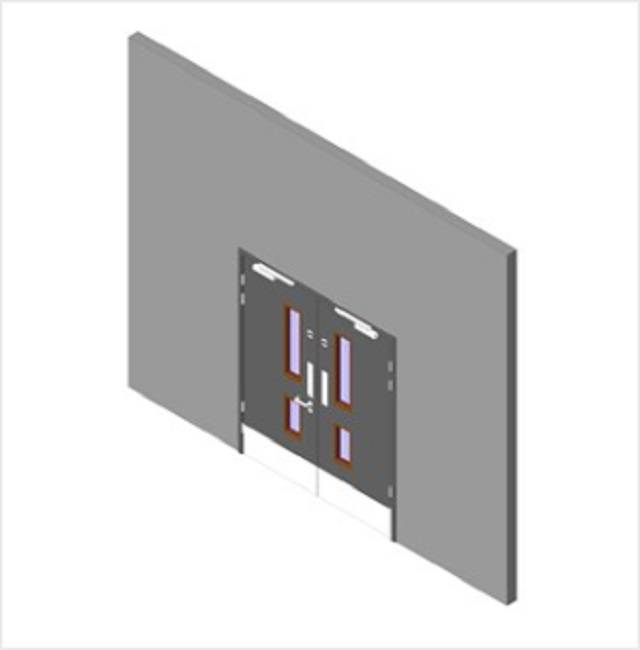

Ward entrance double ward hospital doorset with two vision panels.

Jump to:

+44 (0)1429 221111 Website

Application

A hospital doorset for healthcare facilities, suitable for ward entrances.

Description

Hospital Ward entrance double ward doorset with two vision panels.

Features and benefits:

A severe duty, double ward doorset with two vision panels per leaf.
Available with FSC/ PEFC certification - consult manufacturer for details.
The flax core doors (framed) are available in 44 mm and 54 mm thickness.
Two types of frame construction are available:
Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
Frames can be softwood or hardwood to suit project requirements.
Architrave: Three profile types as standard, other profile types and sizes can be supplied to requirements.
Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information

Finish	Primed Guidance for specification option: Factory. Lacquered Laminated Manufacturer guidance Also available with a Hygienilac finish.
Material	Wood
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: 25 year guarantee

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/410 Wood doorsets L20/55 Doorsets

Specification data - Wood doorsets

Third party accreditation	FSC; PEFC certification. Guidance for specification option: Consult manufacturer for details.
Configuration	Double leaf, single action.
Doorset size	1850 x 2110 mm.
Format	Double leaf, single action.
Frame	-
Material	Hardwood. Softwood.
Finish	Factory primed. Hygienilac. Lacquered. Laminated.
Frame accessories	Not required. Cookes Brothers butt hinges. Royd and Tucker Hi-Load H105 lift off hinges. Union 603 butt hinges.
Door leaf	-
Thickness	44 mm. 54 mm.
Panel details	Door panel has two vision panel each leaf.
Facings	Acrovyn. Laminated. Medium density fibreboard (MDF). Plywood. Veneered.
Lippings	Hardwood.
Finish	Factory primed. Hygienilac. Lacquered. Laminated.
Glazing	-
Type	Vision panel.
Door accessories	Not required. Kick plates. Guidance for specification option: Consult manufacturer for details. Mouldings. Guidance for specification option: Consult manufacturer for details. Overpanels. Guidance for specification option: Consult manufacturer for details. Push plates. Guidance for specification option: Consult manufacturer for details. Alarm wiring facilities. Guidance for specification option: Linked to existing alarm systems, consult manufacturer for details. Emergency exit facilities. Guidance for specification option: Consult manufacturer for details. Factory mortising for locks. Guidance for specification option: Consult manufacturer for details. Fire resisting doors. Guidance for specification option: Consult manufacturer for details.
Planted stops	-
Wood species	Hardwood. Softwood.

Architraves	Type 1. Type 2. Type 3.
Type	Solid rebated frame with integral stop. Guidance for specification option: Main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm. Planed square edge (PSE) section with loose door stops. Guidance for specification option: 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted.
