Halo Solo Play Tower - Children's Multiplay Activity Tower

Verified by manufacturer 2 months ago

Redlynch Leisure Installations Ltd Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • TUV - Safety and Quality Report

    Certificate type

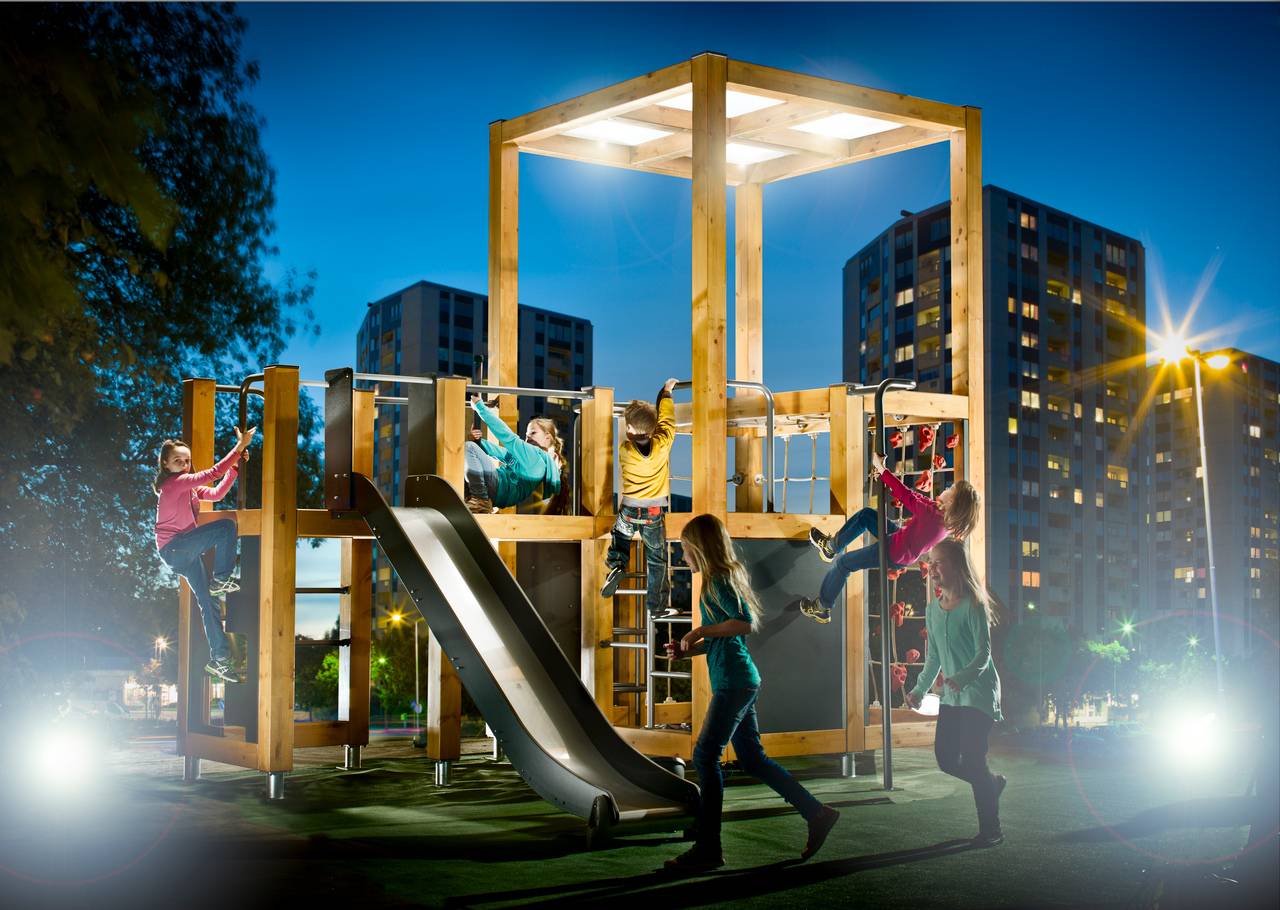

Children's multiplay activity tower/ climbing frame including multifunctional, streamlined tower play with lots of features in a compact space.

Jump to:
+44 (0)1249 444537 Website

Application

Outdoor children's climbing frame/ multiplay activity tower, designed for public use.

Suitable for up to 19 users, age 4+.

Description

Children's multiplay activity tower/ climbing frame including multifunctional, streamlined tower play with lots of features in a compact space.


Features and benefits:

  • Includes a climbing wall with square holes, a transparent climbing wall, an ascent with horizontal handles, four climbing nets, including three vertical nets and one horizontal net, a fireman’s pole, a labyrinth game wall and a slide.
  • The opal white roof of the tower is made of light transmitting cellular plate.
  • The diverse climbing options of the HALO series develop children’s balance and strength in a versatile manner.
  • Wide range of colours is available for wooden, metal, HPL and other components, see Lappset materials and colours.
  • Made in Finland.
  • Suitable for 19 users, age 4+.

General information

Color

Silver

Guidance for specification option:

Metal.

Brown

Guidance for specification option:

Wood.

Black

Guidance for specification option:

Rope.

Blue

Guidance for specification option:

Metal.

Material

Timber

Metal

High pressure laminate (HPL)

Shape

Other

Length

4770 mm

Width

3410 mm

Height

3560 mm

Warranty description

15 year

Uniclass

Pr_40_30_61_18 Combined play structuresPrimary

CAWS

Q52/340 Combined play structure

Q52/330 Climbing frame

Specification data - Combined play structures

Standard

To EN 1176-1 and EN 1176-3 (TÜV).

Age range

4+.

Highest platform height

1.52 m.

Components

Climbing sections: Seven.
Play panels: One.
Slides: Two.
Towers: Three.
Roofs: One.

Guidance for specification option:

Configurable.

Materials

Timber/ metal/ HPL/ rope.

Guidance for specification option:

Consult manufacturer for details.

Finish as delivered

-

Finish type

Manufacturer's standard.

Film thickness (minimum)

Manufacturer's standard.

Colours

Guidance for specification option:

Wide range of colours is available for wooden, metal, HPL and other components, see product description for link, consult manufacturer for options and insert requirements.

Plan Size

4.77 x 3.41 m.
Required area: 8.22 x 6.68 m.

Guidance for specification option:

Impact area: 38 m².

Largest part: 3.93 m.

Overall height

3.56 m.

Post foundations

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Weight

937 kg.

Guidance for specification option:

Heaviest component: 65 kg.

Installation

Approx. 25 hours per structure.

Technical characteristics, other

Falling space area: 38 m².
Falling space length: 8.22 m.
Falling space width: 6.68 m.
Maximum free fall height: 1.915 m.
Number of users: 19.

Sustainability data

Contains Red List materials

No

Country of material origin

Finland

Country of product manufacture

Finland

Recyclability

All parts of this product are recyclable

Third party certifications

CHAS

CHAS

CHAS Advanced

Rospa Safety Charity

Rospa Safety Charity

Rospa

Constructionline Gold

Constructionline Gold

Constructionline Gold

TUV - Safety and Quality Report

TUV - Safety and Quality Report

TUV Halo

Literature

API Membership Certificate

API Membership Certificate

Lappset Warranty Document

Lappset Warranty Document

Lappset Maintenance Instructions

Lappset Maintenance Instructions

Redlynch Catalogue

Redlynch Catalogue

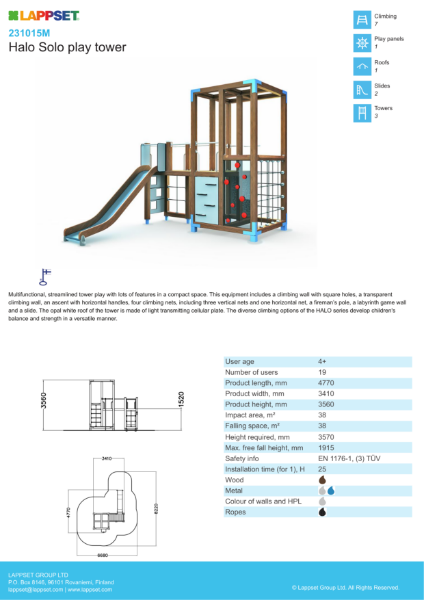

Halo Product Sheet

Halo Product Sheet
