GLV11-INS100 18dB Sound Reduction (Estimated) Roller Shutters - Roller Shutter

Verified by manufacturer 3 months ago

UK Roller Shutters Ltd

Insulated steel roller shutter.

Jump to:
+44 (0)1384 221743 Website

Application

High security commercial sites requiring large aperture coverage and improved insulation properties from the shutter. Suitable uses include:

  • Warehouses.
  • Factories.
  • Loading bays.
  • Other areas where a high level of security is required as well as a high degree of insulation.

Description

Insulated roller shutter model that offers higher security, faster action and greater protection against gale force winds, considerably reduces heat loss and noise pollution, improves efficiency and reduces energy costs when compared against its standard steel alternative. It is proven to be more reliable, safer and stronger than a sectional door and requires less maintenance. Constructed using a double skin steel lath with insulated infill, held together using nylon end locks and can be wind locked in exposed areas. A wide range of colour options are available as well as polyester powder coating. Because it is made in two halves, the shutter can be powder coated a different colour on the inside to the outside.


Features and benefits:

  • Can be powder coated two different colours, front and back.

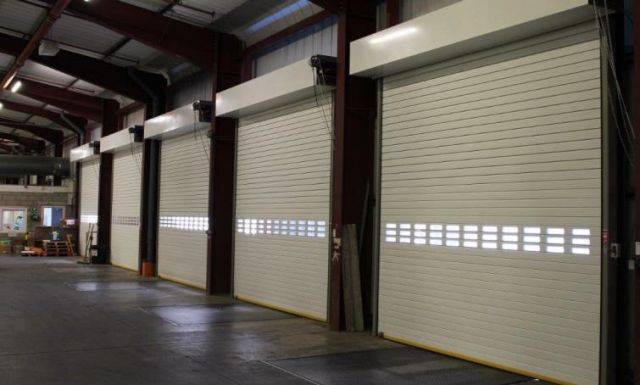

  • Can come with window panels if required.
  • Can be upgraded to security level LPS 1175 SR3 or SR4 if required at a surcharge.
  • Fully CE marked.
  • Protection against crushing, shearing or drawing in.

General information

Finish

Galvanized

Plastisol

Powder-coated

Material

Steel

Shape

Rectangle

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke, available on request.

Format

Sound proofed.

Arrangement

Vertical.

Performance

-

Resistance to wind load

Class 2.

Shutter curtain.

-

Lath material

Galvanized steel.

Guidance for specification option:

Double skinned polyester powder coated 100mm flat slat with polyurethane foam insulating core.

Profile

Curved, solid.

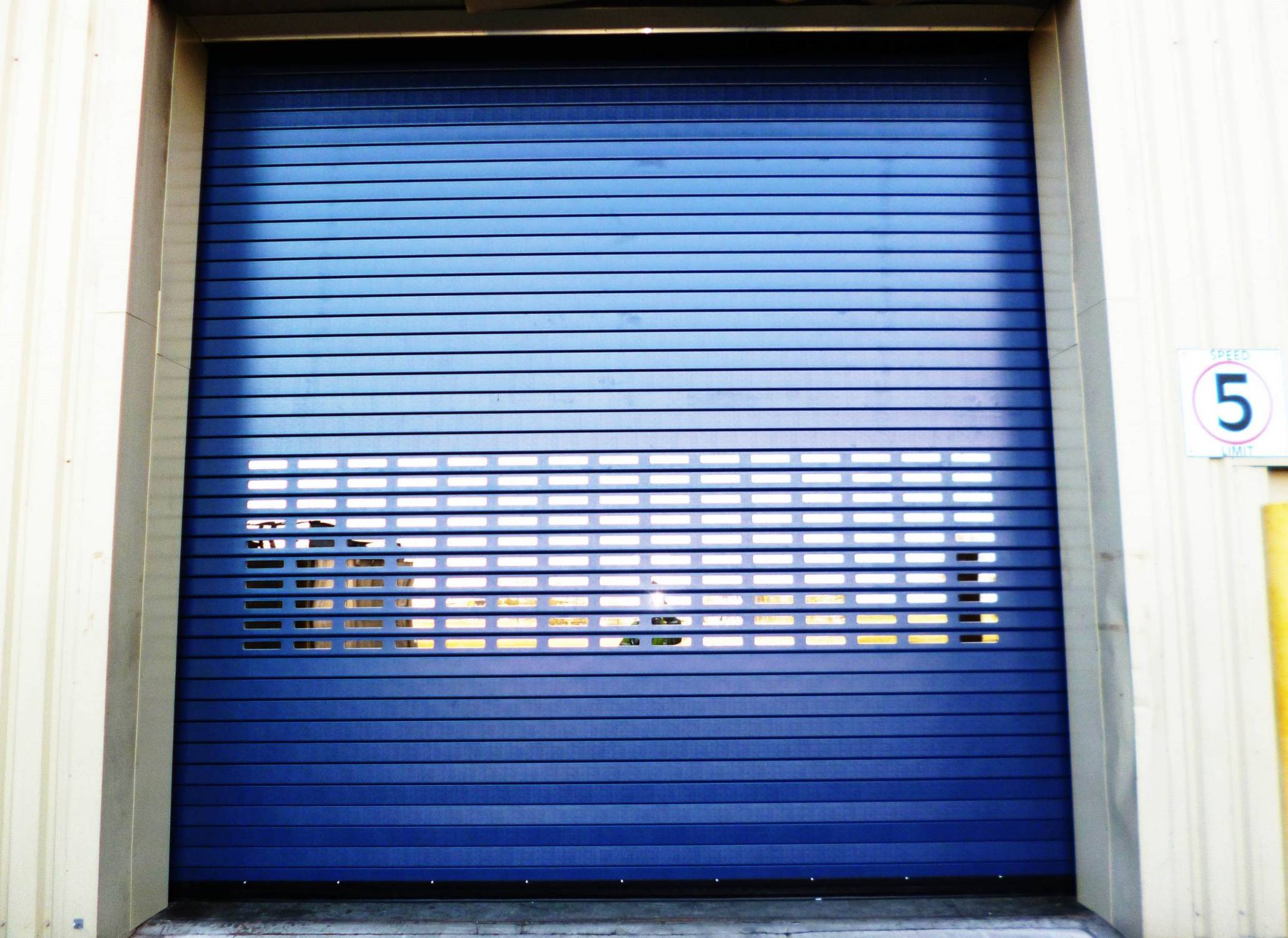

Curved, solid with vision window.

Finish and colour

Galvanized, self-colour.

Guidance for specification option:

As standard.

Polyester powder coated, BS colour.

Guidance for specification option:

Insert requirements.

Polyester powder coated, RAL colour.

Guidance for specification option:

Insert requirements.

Frame and guides

-

Material

Steel.

Finish

Galvanized.

Guidance for specification option:

As standard.

Plastisol.

Polyester powder coated.

Colour

BS.

Guidance for specification option:

Insert requirements.

RAL.

Guidance for specification option:

Insert requirements.

Self-colour.

Operation

-

Mode

Automatic, single-phase tubular motor.

Automatic, 3-phase outboard motor.

Manufacturer guidance

Manual override facility as standard.

Control

Push button.

Rocker switch.

Key switch.

Remote control.

Smart phone.

Automated.

Other.

Guidance for specification option:

UK Roller Shutters Ltd can access anyone's systems for operation.

Battery back-up

Not required.

Required.

Sound reduction

18 dB.

U-value

N/A Unrated.

Height

100 mm.

Manufacturer guidance

Shutter curtain.

Weight

16.5 kg/m².

Manufacturer guidance

Shutter curtain.

Bottom slat

Galvanized steel with EPDM weather seal.

Guide channel depth

85 mm.

Guidance for specification option:

As standard.

Enclosure

0.7 mm galvanized steel sheet.

0.9 mm galvanized steel sheet.

End caps

Fabricated from 3 mm steel.

Dimensions

2600 x 400 mm.

3500 x 400 mm.

4500 x 510 mm.

Manufacturer guidance

Enclosure dimensions: guide length (up to mm) x box size.

Sizes are based on standard 3-phase motor operation.

Sustainability data

Country of product manufacture

United Kingdom
