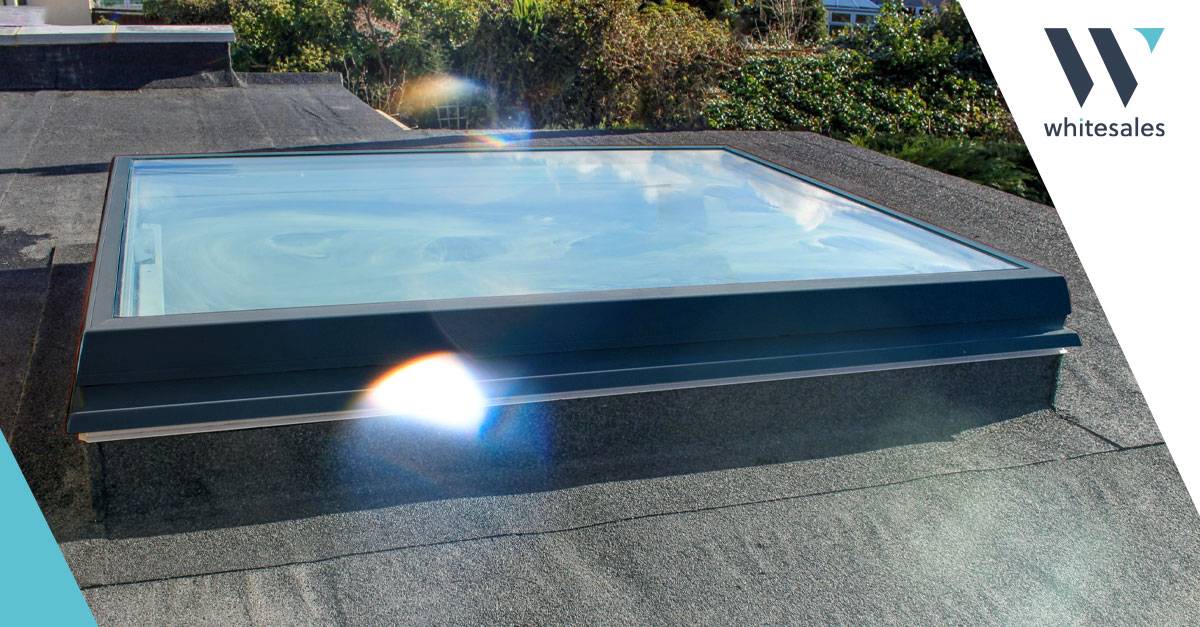

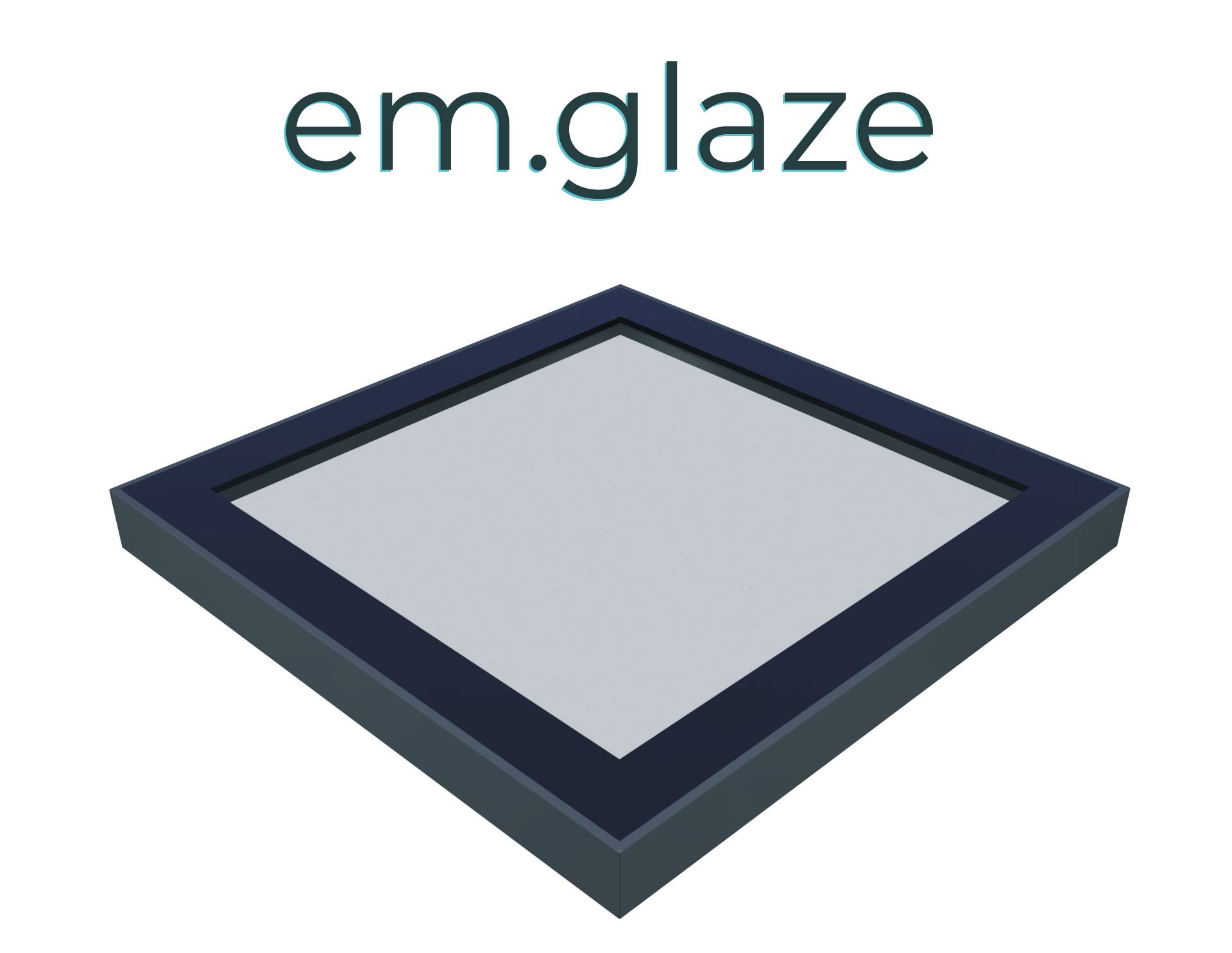

em.glaze™ Flat Glass - Rooflight

Name: em.glaze™ Flat Glass - Rooflight
Brand: Whitesales Rooflights
SKU: wh2VkfjisjiiHj8dTriisE

Verified by manufacturer 5 months ago

Whitesales Rooflights

Prefabricated flat glass modular rooflights.

Jump to:

+44 (0)1483 917580 Website

Description

em.glaze modular roof lights are designed to maximize the amount of natural daylight in a building and at the same time provide a clean, minimalist finish both inside and outside. They are manufactured with flat sealed glass units and incorporate a fully welded aluminium frame and cill detail. All visible aluminium is polyester powder coated light grey as standard. The flush design ensures efficient drainage of rainwater and the silkprint edge ensures that the double glazed unit holds the insulation value over the full lifetime without deterioration. em.glaze modular units are available in a wide range of standard sizes or can be made to measure and can also be colour coated to match other roof components if required.

Features and benefits:

Prefabricated and factory pre-glazed for easy insulation.
Secure welded glazing frame.
Available as glazing only or with a proprietary upstand.
Compatible with builders and PVC-U upstands.
Thermally broken frame.
Supplied with security fixings.
Simple to install.
Flush design.
Insulation value.
Ventilation options.
Low E argon filled sealed units.
Non-Fragile – tested and certificated non-fragile Class 1 under CWCT testing standards (on standard glass specification).
Fifteen stocked sizes available.

Performance (Thermal regulations):

The double glazed unit exceeds current thermal requirements and the triple glazed unit gives industry leading performance.

Performance (Sound reduction):

With glass panes each at minimum 8 mm thick and with a 16 mm argon-filled cavity, the units will provide protection from traffic or other noise.

Installation:

As the units are supplied prefabricated and assembled, they are simple to fix either to a site formed upstand or to PVC-U proprietary em.curb.

General information

Color	Grey Guidance for specification option: RAL 7016, light grey. White Guidance for specification option: Upstand.
Finish	Powder-coated
Material	PVC-U Guidance for specification option: Kerb. Aluminium Guidance for specification option: Frame. Glass Guidance for specification option: Unit.
Shape	Square Rectangle Circle Guidance for specification option: Special order.
Length	Bespoke
Width	Bespoke
Height	108 mm
Warranty description	Ten year Guidance for specification option: Glazing and powder coating. One year Guidance for specification option: Mechanical components.

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Product range	em. Range Glass Rooflights

Specification data - Framed rooflights

Form	Flat. Guidance for specification option: Section. Square. Rectangular. Round.
Size	- Manufacturer guidance Fifteen sizes available; see size chart for more information.
Product performance	-
Whole window U-value	1.23 W/m2K.
Frame	-
Material	Aluminium.
Finish	-
Coating	Powder coating. Guidance for specification option: Standard. Anthracite.
Colour	Light grey, RAL 7016. Guidance for specification option: Anthracite finish. RAL. Guidance for specification option: Powder coated to any RAL colour as special order.
Glazing or infill	-
Type	Glass unit.
Construction	Double glazed. Guidance for specification option: Flat glass rooflight as standard. Triple glazed. Guidance for specification option: Special order. Manufacturer guidance Toughened outer glazing with laminated inner glazing. Meets or exceeds requirements of ADL2 (2010) Thermal Regulations.
Colour	Opal diffused. Guidance for specification option: Diffuses the light over a wide area and provides privacy. Solar control. Guidance for specification option: Special order, provides solar gain reduction. Tinted. Guidance for specification option: A range of coloured tints. EasyClean. Guidance for specification option: Special order, self cleaning.
Integral kerb	Not required. Guidance for specification option: Fit rooflight directly to a site formed upstand or curb (timber/ concrete/ metal/ GRP). Size should be detailed as the external measurement at the top of the upstand. PVC, 150 mm high, vertical, white. Guidance for specification option: Suits new installations or replacement of existing upstand. Vertical internal face. PVC, 150 mm high, splayed, white. Guidance for specification option: Suits new installations or replacement of existing upstand. Splayed internal face. PVC, 300 mm high, splayed, white. Guidance for specification option: Suits new installations or replacement of existing upstand. Splayed internal face. Aluminium adaptor collar. Guidance for specification option: Fits to the top of an existing or new site formed upstand (timber/ concrete/ metal/ GRP). Size should be detailed as the external measurement at the top of the upstand. PVC, 350 mm high, oversleeve, white. Guidance for specification option: Oversleeves existing upstand to avoid disturbing internal lining or asbestos. PVC adaptor collar. Guidance for specification option: Fits to the top of an existing or new site formed upstand (timber/ concrete/ metal/ GRP). Size should be detailed as the external measurement at the top of the upstand.

Ventilation/ opening	Not required. Guidance for specification option: No ventilation required – Fixed/ non-vented. Controllable rotating, two sides. Guidance for specification option: Tested and certified according to EN 1873 – Watertightness. Fully insulated providing minimum 11 000 mm² vent, suited to living and working areas. Controllable rotating, four sides. Guidance for specification option: Tested and certified according to EN 1873 – Watertightness. Fully insulated providing minimum 22 000 mm² vent suited to living and working areas. Controllable trickle, two sides. Guidance for specification option: Provides minimum 8000 mm² vent to assist compliance with Building Regulations. Controllable trickle, four sides. Guidance for specification option: Provides minimum 16 000 mm² vent to assist compliance with Building Regulations. Electric hinged opener. Guidance for specification option: Electrically operated hinged opener, operated by switch or specialist with wind, rain, temperature and CO2 sensors control pack. Opens up to 400 or 600 mm. Extract fan. Guidance for specification option: Centrifugal extract fan to remove air. Suited to cloakroom, kitchen and other high humidity areas. Manual hinged opener. Guidance for specification option: Hinged opener controlled by operating rod. Provides high air movement and can be opened up to 300 mm. Permanent. Guidance for specification option: Permanent non-controllable spacer washers for corridors and non-inhabited rooms. Show more
Winding rod	Not required. Guidance for specification option: For electric spindle opening unit. 1.5 m. 2.0 m. 3.0 m.
Ventilation	Em.glaze to suit builders upstand, available as fixed unit or manually opening. Em.glaze with propreitary upstand, available as fixed unit or manually opening. Manufacturer guidance Ventilation options, refer to datasheet for more information. Refer to em.glaze electric opening product information for electric opening options.
Air permeability	To BS EN 12207, Class 2, 300 Pa.
Resistance to wind load	To BS EN 12210, Class A2.
Watertightness	To BS EN 12208:2000, Class 3A, 100 Pa.
Exposure category to BS 6375-1/ Design wind load	To BS 6375-1:2015, 800.
Third party certification:	CWCT TN66/ 67, Class 1. Manufacturer guidance Full technical details and specification information can be found on the data sheet.

Sustainability data

Contains Red List materials	No
Country of material origin	Slovenia
Country of product manufacture	Slovenia
Recyclability	Aluminium and Glass elements are a fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	30 %

Literature

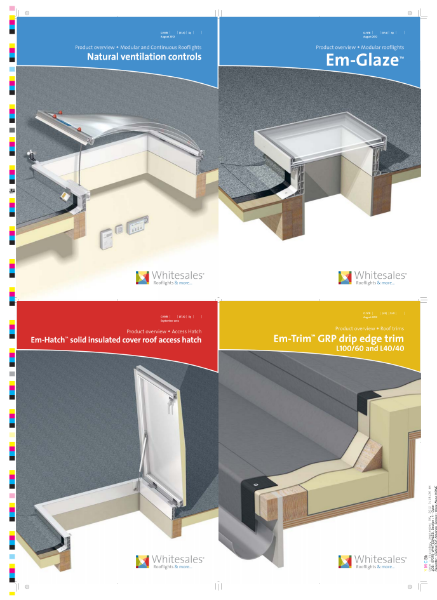

em.glaze - Modular Rooflights

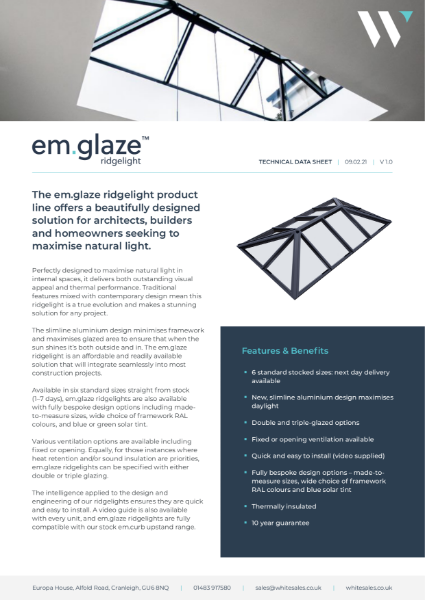

em.glaze Modular Ridgelights Datasheet
