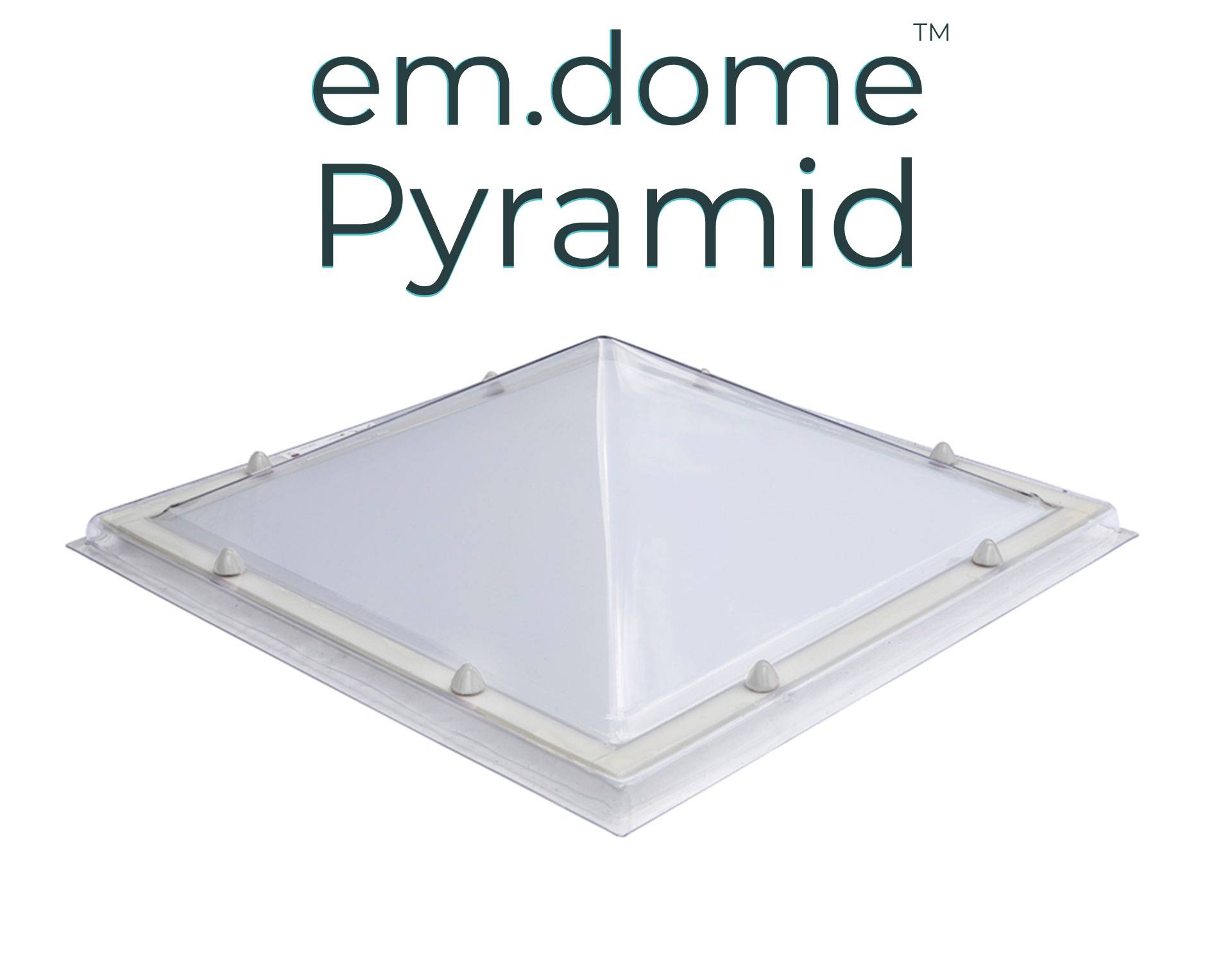

High-quality, durable polycarbonate thermoformed rooflights, designed to make optimum use of natural light.
High quality thermoformed rooflights designed to make optimum use of natural light. em.domes are offered in a wide range of sizes, shapes and glazing options to meet virtually any specifier and client requirement. em.dome rooflights are thermoformed from UV protected, co-extruded polycarbonate sheet and are available in solid single, double, triple, quad skin or Eco multiwall construction. Solid glazed units use a 3 mm (minimum) thick glazing and have been tested and certified according to EN 1873:1200 J, and ACR(M): 001: 2005 Class B.

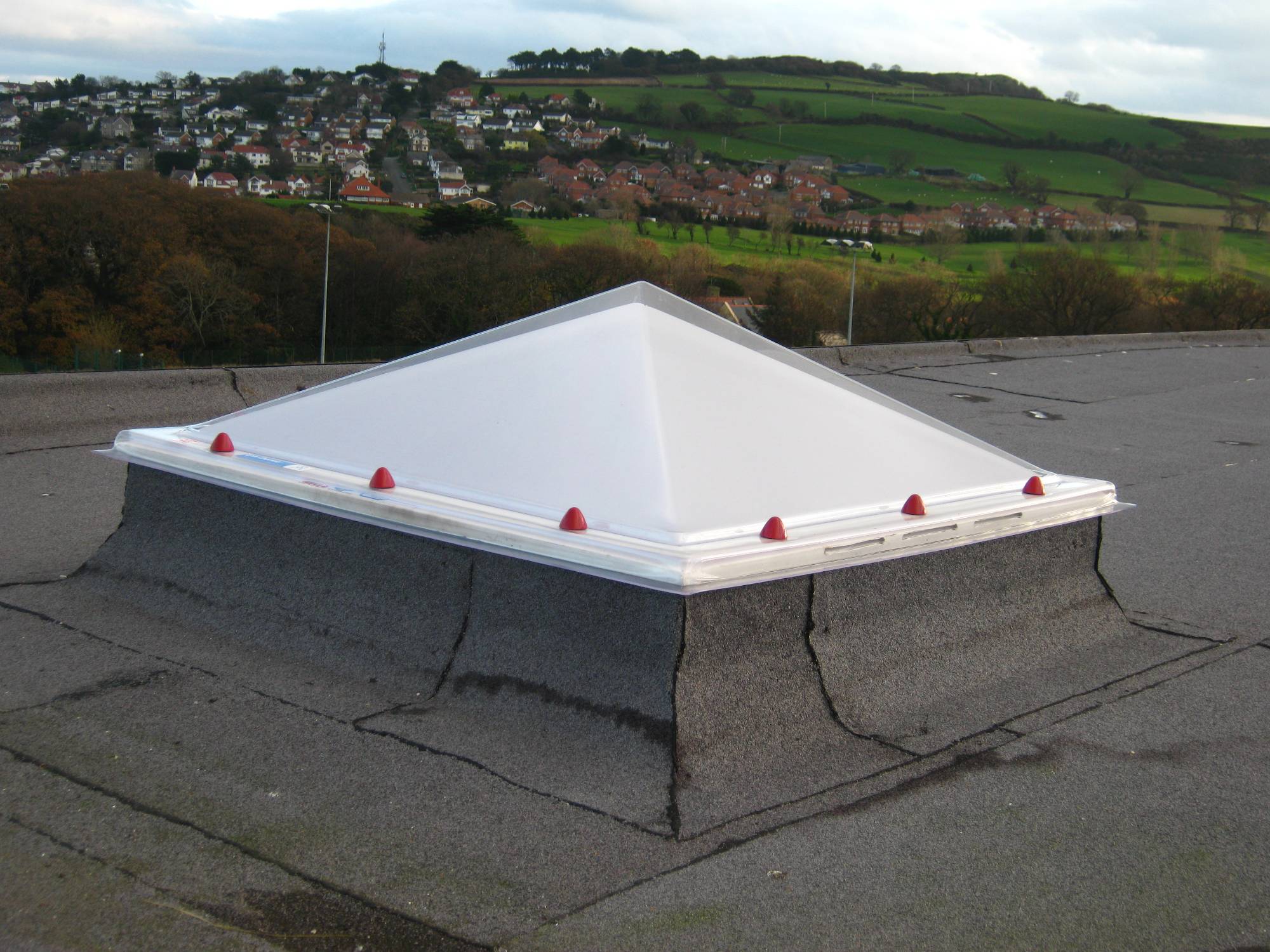

Em-Domes are tested to the highest standards and are proven suitable for use on most flat roofs, including single ply, felt, hot-melt, asphalt, liquid, GRP and lead. They are normally specified with Whitesales proprietary insulated curbs but can also be installed on existing builder’s curbs. Higher security, access and ventilation options are available.
Features:
Fixing:
Refer to Whitesales Modular Rooflights brochure page 35 for recommendations.
Color | White |
Finish | Smooth |
Material | PVC-U |
Shape | Circle Square Other |
Length | 400 mm 500 mm 550 mm 600 mm 700 mm |
Width | 400 mm 500 mm 550 mm 600 mm 700 mm |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights L10/490 Roof ventilators |
Product range |
Classification data | |
Size | Guidance for specification option: From 300 x 300 to 1800 x 3000 mm. Specify from product literature or consult Whitesales. |
Glazing or infill | |
Type | Polycarbonate, UV protected. Guidance for specification option: Consult product literature for technical characteristics of glazing options. |
Integral kerb | None Guidance for specification option: Fit rooflight directly to a site formed upstand or curb (timber/ concrete/ metal/ GRP). Size should be detailed as the external measurement at the top of the upstand. PVC, 150 mm high vertical Guidance for specification option: Suits new installations or replacement of existing upstand. Vertical internal face. PVC, 150 mm high splayed Guidance for specification option: Suits new installations or replacement of existing upstand. Splayed internal face. PVC, 300 mm high splayed Guidance for specification option: Suits new installations or replacement of existing upstand. Splayed internal face. PVC, 350 mm high oversleeve Guidance for specification option: Oversleeves existing upstand to avoid disturbing internal lining, asbestos etc. Aluminium adaptor collar Guidance for specification option: Fits to the top of an existing or new site formed upstand (timber/ concrete/ metal/ GRP). Size should be detailed as the external measurement at the top of the upstand. PVC adaptor collar Guidance for specification option: Fits to the top of an existing or new site formed upstand (timber/concrete/metal/GRP). Size should be detailed as the external measurement at the top of the upstand. |
Accessories | None Burglar bar grid Security frame Vent Control Pack Guidance for specification option: Used in conjunction with electric opening ventilation. Can incorporate wind, rain, temperature and CO2 sensors. |
Product Reference | Em-Dome Em-Dome Plus Guidance for specification option: Fully enclosed, tamper-proof frame for totally secure fixing. |
Type | Circular Rectangular Square |
Ventilation/ opening | None Guidance for specification option: No ventilation required. Fixed/ non-vented. Access hatch Guidance for specification option: Hinged and lockable access hatch to allow safe access to roof or plant areas. Controllable rotating, two sides Guidance for specification option: Tested and certified according to EN 1873 - Watertightness. Fully insulated providing minimum 11 000 mm² vent suited to living and working areas. Controllable rotating, four sides Guidance for specification option: Tested and certified according to EN 1873 - Watertightness. Fully insulated providing minimum 22 000 mm² vent suited to living and working areas. Controllable trickle, two sides Guidance for specification option: Provides minimum 8000 mm² vent to assist compliance with Building Regulations. Controllable trickle, four sides Guidance for specification option: Provides minimum 16 000 mm² vent to assist compliance with Building Regulations. Electric hinged opener Guidance for specification option: Electrically operated hinged opener operated by switch or specialist (wind, rain, temperature and CO2 sensors) control pack. Opens up to either 400 or 600 mm. Extract fan Guidance for specification option: Centrifugal extract fan to remove air. Suited to cloakroom, kitchen and other high humidity areas. Manual hinged opener Guidance for specification option: Hinged opener controlled by operating rod. Provides high air movement and can be opened up to 300 mm. Permanent Guidance for specification option: Permanent non-controllable spacer washers for corridors and non-inhabited rooms. Smoke vent Guidance for specification option: Electrically operated hinged openers to allow controlled smoke ventilation. Opens to either 90° or 140°. Control panel and accessories are available. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
