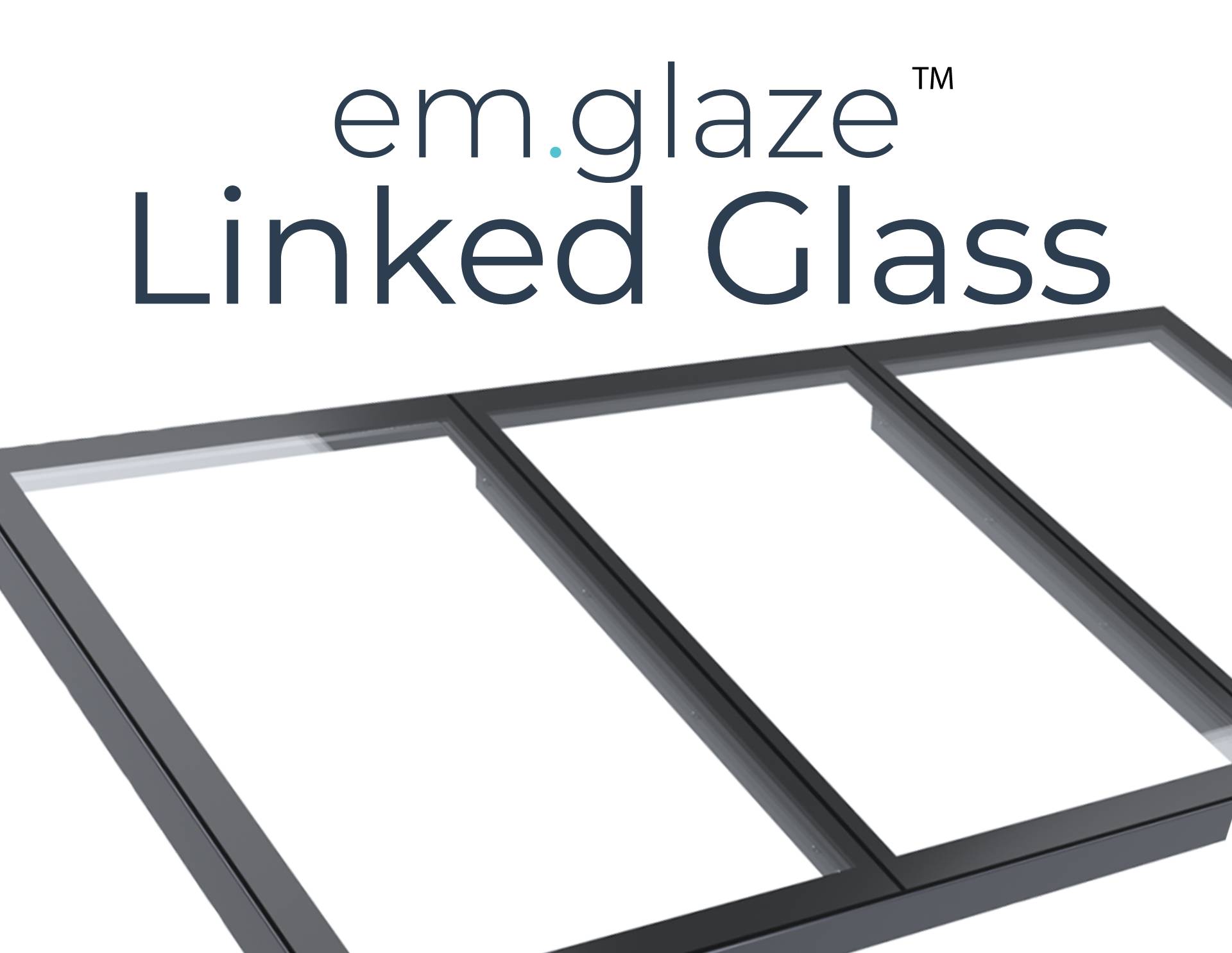

em.glaze™ Linked Glass Modules

em.glaze linked glass modules are designed to maximize the amount of natural daylight in a building and at the same time provide a clean, minimalist finish both inside and outside. They are manufactured with flat sealed glass units and incorporate a fully welded aluminium frame and cill detail. All visible aluminium is polyester powder coated light grey as standard. The flush design ensures efficient drainage of rainwater and the silkprint edge ensures that the double glazed unit holds the insulation value over the full lifetime without deterioration.

Features and benefits:

• Prefabricated and factory pre-glazed for easy insulation.
• Modular system allows multiple glazed sections to be linked together with no external capping.
• Non-fragility CWCT Class 2 (as standard), secure welded thermally broken glazing frame with self-supporting joints.
• Can be wall abutted.
• Available as a supply only product.
• Unit supplied with security fixings.

Performance (Sound reduction):

• With glass panes each at minimum 8 mm thick and with a 16 mm argon-filled cavity, the units will provide protection from traffic or other noise.

Installation:

• As the units are supplied prefabricated, they are simple to fix either to a site formed upstand or to PVC-U proprietary em-curb.
