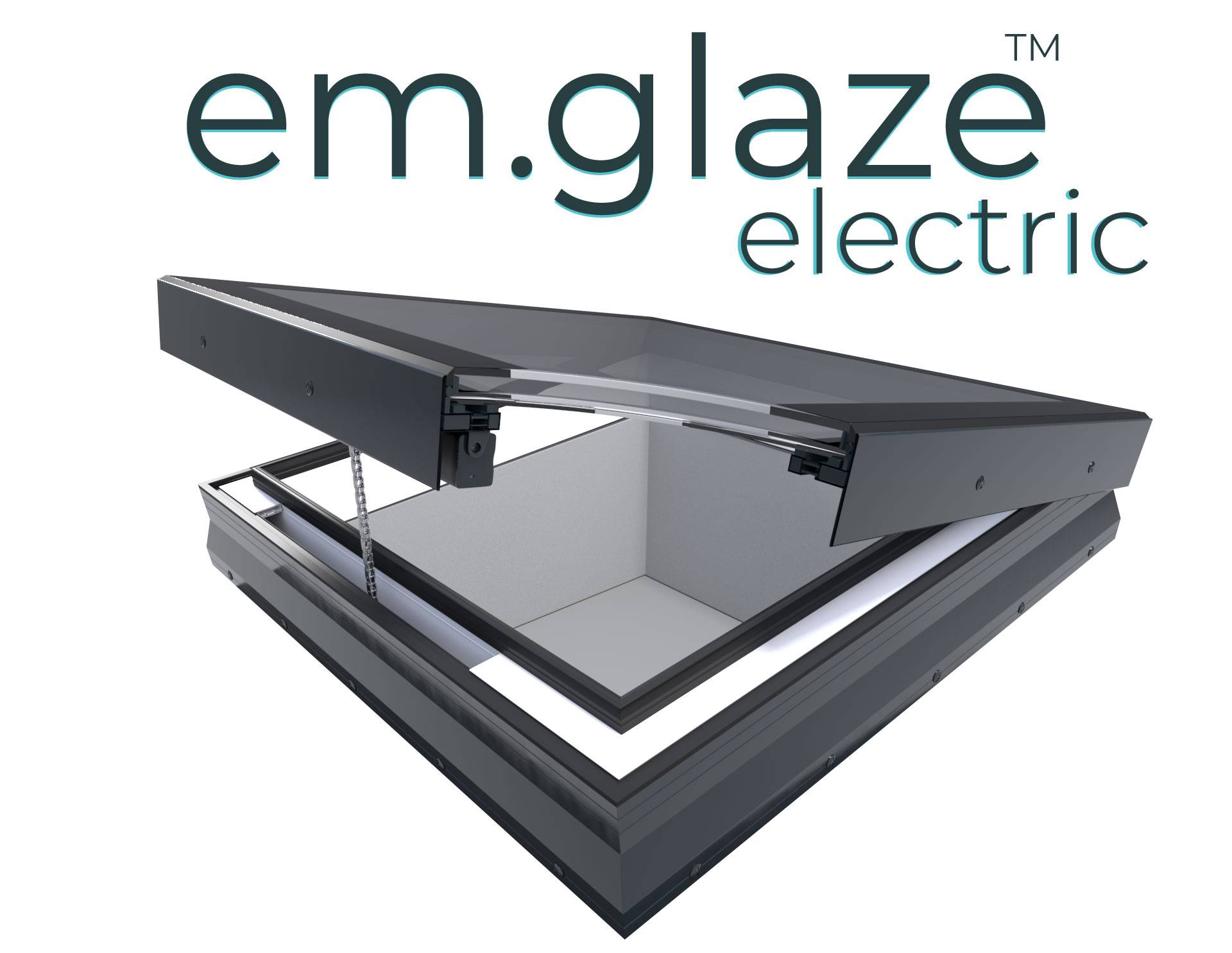

em.glaze™ Flat Glass Electric

em.glaze modular rooflights are designed to maximize the amount of natural daylight in a building and at the same time provide a clean, minimalist finish both inside and outside. They are manufactured with flat sealed glass units and incorporate a fully welded aluminium frame and cill detail. All visible aluminium is polyester powder coated light grey as standard. The flush design ensures efficient drainage of rainwater and the silkprint edge ensures that the double glazed unit holds the insulation value over the full lifetime without deterioration. Em-Glaze modular units are available in a wide range of standard sizes or can be made to measure and can also be colour coated to match other roof components if required.

The em.glaze electric opening with concealed actuators offer a sleek and modern look with the all option for controlled ventilation.

Features and benefits:

• Pre-fabricated
• Thermally broken profile
• All units have actuator leads protruding minimum 2m
• Special actuator bracket to em.glaze flat glass unit allows unit to be detached from inside in event of power failure
• Water management channel within profile
• Single or tandem actuators depending on unit size
• Tandem units require no additional control panels. The intelligent actuators communicate with each other.
• Unit fit to builders kerb or uPVC em.curb
• Concealed hinge with no visible fixings internally or externally
• Wiring concealed within the base frame
• Standard RAL 7016 externally and White RAL 9016 internally
• Compatible with our new Timber Sloping Kerb which complies with new building regulations and is supplied pre-assembled for faster installation
• Unit supplied with security fixings.
• Non-Fragile – tested and certificated non-fragile Class 1 under CWCT testing standards (on standard glass specification).
• Fifteen stocked sizes available.

Performance (Thermal regulations):

• The double glazed unit exceeds current thermal requirements and the triple glazed unit gives industry leading performance.

Performance (Sound reduction):

• With glass panes each at minimum 8 mm thick and with a 16 mm argon-filled cavity, the units will provide protection from traffic or other noise.

Installation:

• As the units are supplied prefabricated and assembled, they are simple to fix either to a site formed upstand or to PVC-U proprietary em.curb.
