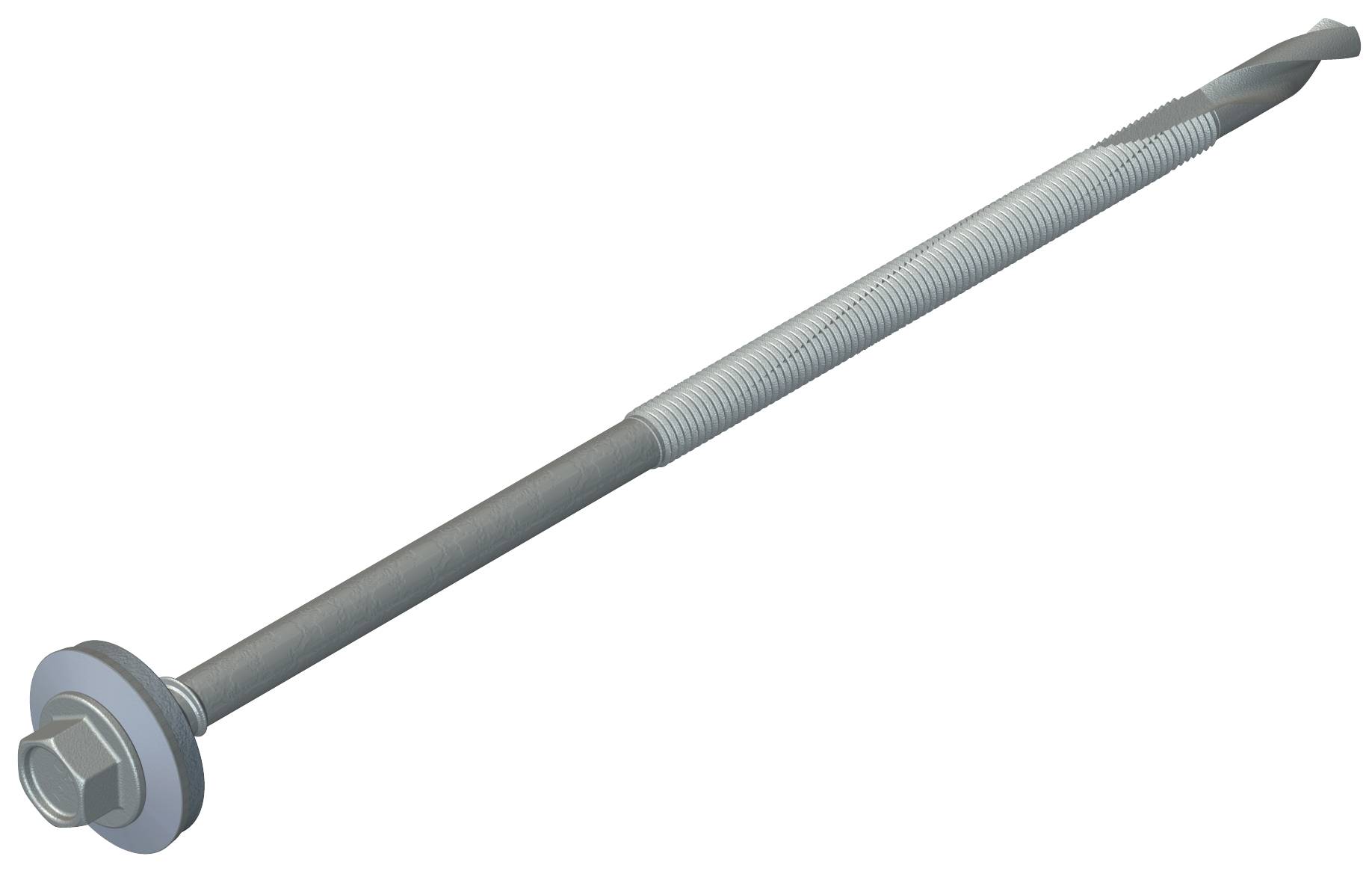

DrillFast® A2/304 Stainless DF12-SS-HT Composite Panel Fasteners
Verified by manufacturer 2 months ago
European Technical Approval (ETA)
Certificate type
Stainless steel self-drilling fasteners for installing insulated sandwich panels to heavy steel.
Application
For mechanically fixing composite panel systems to heavy steel purlins and sections.
Description
Stainless steel self-drilling fasteners for roofing and cladding.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- A2/ 304 stainless steel for optimum resistance to corrosion
- Bi-metal manufactured for superior drilling performance
- Excellent pull-out and shear performance
- Purpose designed and precision manufactured by Fixfast
General information
Color | Silver |
Finish | Coated |
Material | Stainless steel |
Length | 95 mm 115 mm 150 mm 200 mm 250 mm |
Width | 5.5 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H43/219 Fasteners H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel |
Product range |
Specification data - Self-drilling screws
Material | 1.4301 stainless steel (304M), with carbon steel case hardened welded point. |
Finish | Organic coating. |
Head type | Hexagon 8 mm. |
Size | |
Diameter | 5.5 mm. |
Length | 95 mm.Guidance for specification option: DF12-SS-HT-5.5 x 95. 115mm.Guidance for specification option: DF12-SS-HT-5.5 x 115. 150 mm.Guidance for specification option: DF12-SS-HT-5.5 x 150. 200 mm.Guidance for specification option: DF12-SS-HT-5.5 x 200. 250 mm.Guidance for specification option: DF12-SS-HT-5.5 x 250. 300 mm.Guidance for specification option: DF12-SS-HT-5.5 x 300. |
Washers | Not required.Guidance for specification option: Build-ups: DF12-SS-HT-5.5 x 95: 32–53 mm. DF12-SS-HT-5.5 x 115: 52–73 mm. DF12-SS-HT-5.5 x 150: 62–108 mm. DF12-SS-HT-5.5 x 200: 97–158 mm DF12-SS-HT-5.5 x 250: 148–207 mm. DF12-SS-HT-5.5 x 300: 198–257 mm. A15/ A19 washer.Guidance for specification option: Build-ups: DF12-SS-HT-5.5 x 95: 29–50 mm. DF12-SS-HT-5.5 x 115: 49–70 mm. DF12-SS-HT-5.5 x 150: 59–105 mm. DF12-SS-HT-5.5 x 200: 95–155 mm. DF12-SS-HT-5.5 x 250: 145–204mm. DF12-SS-HT-5.5 x 300: 197–254 mm. A29 washer.Guidance for specification option: Build-ups: DF12-SS-HT-5.5 x 95: 28–49 mm. DF12-SS-HT-5.5 x 115: 48–69 mm. DF12-SS-HT-5.5 x 150: 58–104 mm. DF12-SS-HT-5.5 x 200: 93–154 mm. DF12-SS-HT-5.5 x 250: 144–203 mm. DF12-SS-HT-5.5 x 300: 194–253 mm. |
Drilling capacity | 4.0–12.0 mm Steel. |
Sustainability data
Material | Stainless steel |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 20/1177
