DrillFast® A2/304 Stainless DFT-SS Timber Fasteners
Verified by manufacturer 1 month ago
European Technical Approval (ETA)
Certificate type

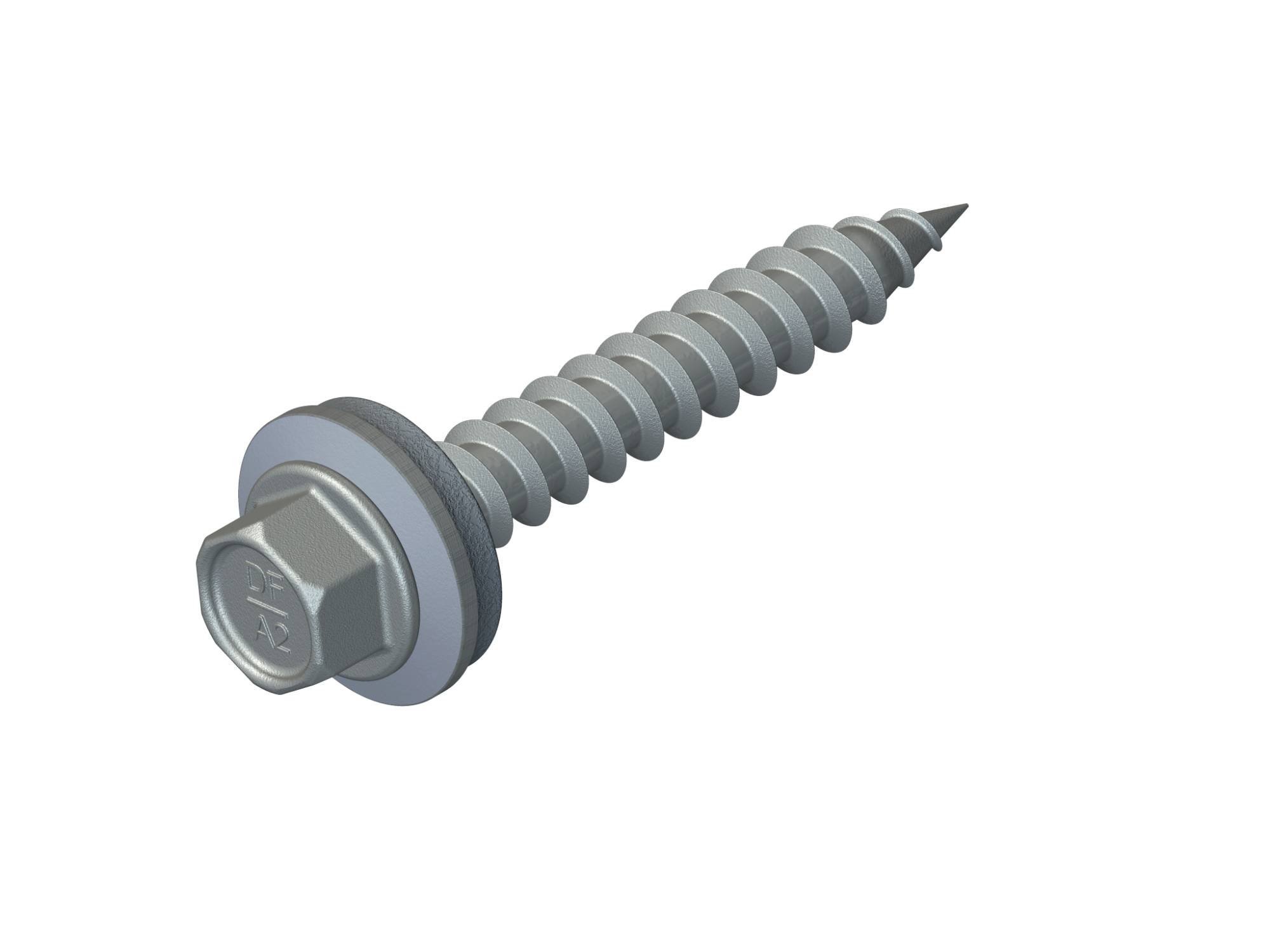

Stainless steel self-drilling fasteners for installing roofing and cladding components to timber
Application
- For mechanically fixing metal sheeting systems to timber
- For mechanically fixing components of steel, aluminium and metal framing systems to timber
Description
Stainless steel self-drilling fasteners for roofing and cladding.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- A2/ 304 stainless steel for optimum resistance to corrosion
- Thread formation designed for efficient driving into timber
- Excellent pull-out and shear performance
- Purpose designed and precision manufactured by Fixfast
- ETA approved and CE marked
General information
Color | Silver |
Finish | Mill |
Material | Stainless steel |
Length | 25 mm 32 mm 40 mm 50 mm 75 mm |
Width | 6 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H31/219 Fasteners H31/120 Metal H31/10 Metal H92/120 Rainscreen cladding H67/110 Metal roof tiling H67/5 Metal roof tiling |
Product range |
Specification data - Self-drilling screws
Material | 1.4301 stainless steel (304M). |
Finish | Electro-passivated and waxed coating. |
Head type | Hexagon 8 mm. |
Size | |
Diameter | 6.0 mm. |
Length | 25 mm.Guidance for specification option: DFT-SS-6.0 x 25. 32 mm.Guidance for specification option: DFT-SS-6.0 x 32. 40 mm.Guidance for specification option: DFT-SS-6.0 x 40. 50 mm.Guidance for specification option: DFT-SS-6.0 x 50. 75 mm.Guidance for specification option: DFT-SS-6.0 x 75. 100 mm.Guidance for specification option: DFT-SS-6.0 x 100. |
Washers | Not required.A15/ A19 washer.A29 washer.Manufacturer guidanceRefer to manufacturer's literature for information relating to build-ups, substrate material and embedment. |
Drilling capacity | 0.7 mm sheet steel to timber. |
Sustainability data
Material | Stainless steel |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 20/1178
Literature
DrillFast Stainless Fasteners
R-MER Metal Roof System Selector Guide
Firth Steels Protex Selector Guide
Facade and Rainscreen Overview
Sheeting and Cladding Overview
SIG Gemello Twin Skin System Rural Industrial 25 years
