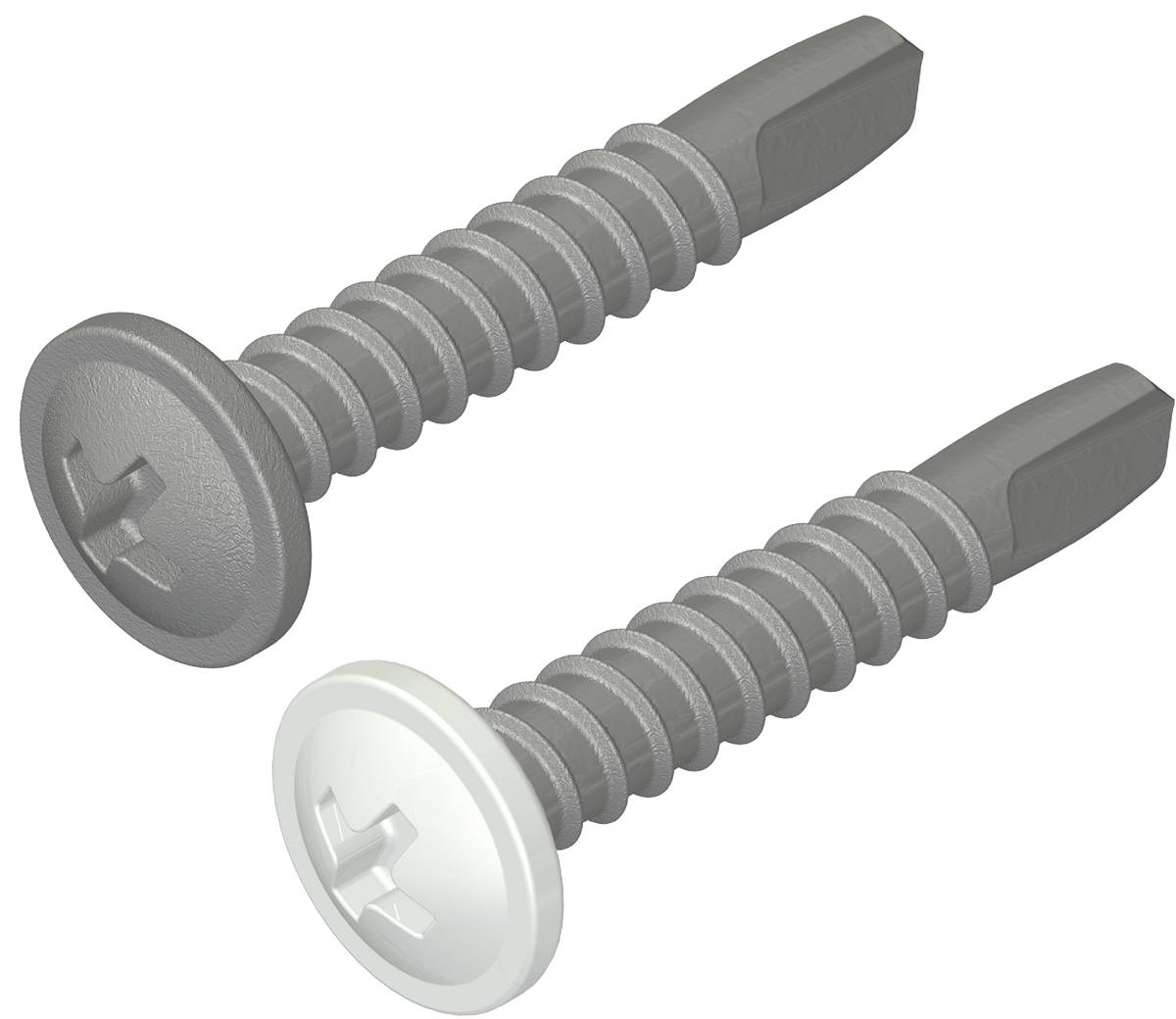

DrillFast® A2 DF3-SS-CF(L) Low Profile Clip-fix Fasteners
Verified by manufacturer 1 month ago
European Technical Approval (ETA)
Certificate type
Low profile stainless steel self-drilling clip fix fasteners for fixing to light steel.
Application
- For mechanically fixing metal sheeting to light metal purlins and rails
- For mechanically fixing components of steel, aluminium and metal framing systems
Description
Secret fix fasteners for roofing and cladding, manufactured from stainless steel for optimum corrosion resistance.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- Low profile head for a discreet finish which may be powder coated for precise colour matching
- Excellent pull-out and shear performance
- Purpose designed and precision manufactured by Fixfast
- ETA approved and CE marked
General information
Color | Beige Black Blue Bronze Brown |
Finish | Coated Powder-coated |
Material | Stainless steel |
Length | 25 mm |
Width | 4.8 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H31/219 Fasteners H31/120 Metal H31/10 Metal H92/120 Rainscreen cladding |
Product range |
Specification data - Self-drilling screws
Material | 1.4301 stainless steel (304M), with carbon steel case hardened welded point, organic coating. |
Finish | Organic coating. |
Head type | Low profile pan, no. 2 phillips recess. |
Size | |
Diameter | 4.8 mm. |
Length | 25 mm. |
Washers | Required.Not required. |
Drilling capacity | 1.2–3.0 mm Steel. |
Sustainability data
Material | Stainless steel |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 20/1178
Literature
DrillFast Stainless Fasteners
