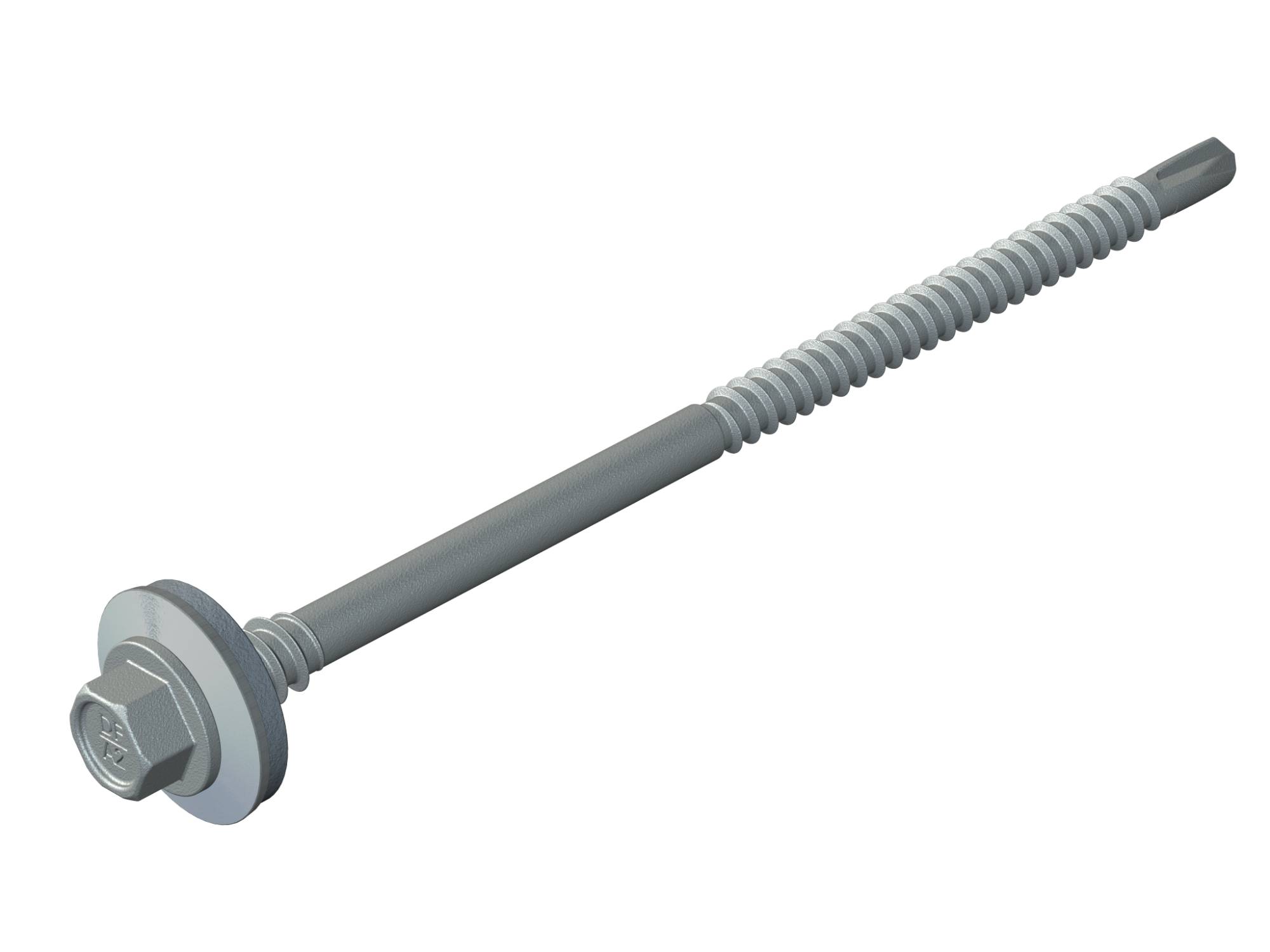

DrillFast® A2/304 Stainless DF3-SS-HT Composite Panel Fasteners
Verified by manufacturer 6 months ago
European Technical Approval (ETA)
Certificate type
Stainless steel self-drilling fasteners for insulated sandwich panels to secondary purlins and rails.
Application
For mechanically fixing composite panel systems to light metal purlins and rails, and timber.
Description
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- A2/ 304 stainless steel for optimum resistance to corrosion
- Bi-metal manufactured for superior drilling performance
- Excellent pull-out and shear performance
- High thread provides optimal clamping force to top sheet
- Purpose designed and precision manufactured by Fixfast
General information
Color | Silver |
Finish | Mill |
Material | Stainless steel |
Length | 85 mm 110 mm 130 mm 150 mm 180 mm |
Width | 5.5 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H43/219 Fasteners H43/10 Metal insulating sandwich panel H43/120 Metal insulating sandwich panel |
Product range |
Specification data - Self-drilling screws
Standard | To BS EN ISO 1479. |
Material | 1.4301 stainless steel (304M), with carbon steel case hardened welded point. |
Finish | Organic coating. |
Head type | Hexagon 8 mm. |
Size | |
Diameter | 5.5 mm. |
Length | 85 mm.Guidance for specification option: DF3-SS-HT-5.5 x 85. 110 mm.Guidance for specification option: DF3-SS-HT-5.5 x 110. 130 mm.Guidance for specification option: DF3-SS-HT-5.5 x 130. 150 mm.Guidance for specification option: DF3-SS-HT-5.5 x 150. 180 mm.Guidance for specification option: DF3-SS-HT-5.5 x 180. 225 mm.Guidance for specification option: DF3-SS-HT-5.5 x 225. 275 mm.Guidance for specification option: DF3-SS-HT-5.5 x 275. |
Washers | Not required.A15/ A19 washer.A29 washer. |
Drilling capacity | 1.2–3.0 mm Steel. |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 20/1177
